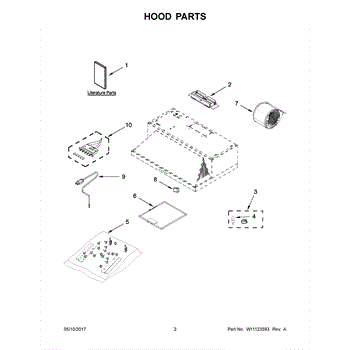

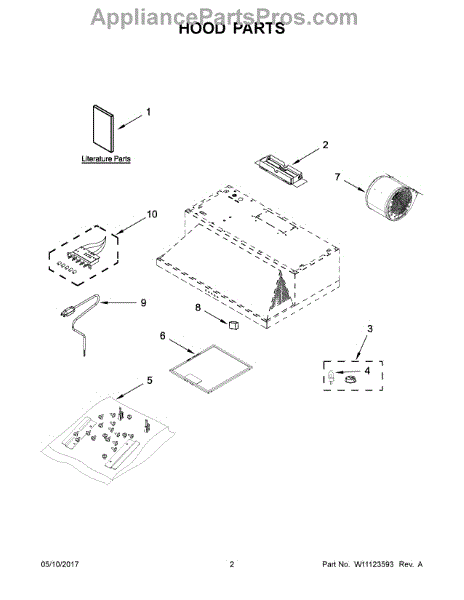

Parts for Whirlpool UXT5536AAS2: 02 - Hood Parts

A replacement hood damper assembly that opens and closes the vent opening to help direct exhaust airflow and reduce backdrafts when the range hood or microwave fan is off. Restores proper vent operation and helps control odors and smoke. What it does:

• Opens to allow exhaust air to escape when the hood fan runs
• Closes to block outside air and reduce backdrafts when the fan is off
• Helps improve ventilation performance and reduces kitchen odors and smoke build-up
• Commonly replaced when the damper is stuck, bent, or noisy

• One hood damper assembly

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the hood or microwave bottom panel; support the unit if needed
• Verify damper orientation and secure mounting fasteners; test operation before reassembly

This replacement light bulb restores bright, dependable illumination in your appliance, making it easier to see contents and controls. Replace a burned-out or flickering bulb to bring lighting back to normal day-to-day operation.

• Supplies interior or work-area lighting when the door opens or the light switch is turned on
• Restores visibility for monitoring, loading/unloading, and cleaning
• Typical failure symptoms: no light, dim or flickering light, intermittent lighting, or visibly darkened/broken glass

• Disconnect power to the appliance before servicing
• Allow the existing bulb and surrounding area to cool completely
• Remove any lens or cover as designed; install the new bulb carefully and do not overtighten
• Match the bulb type and ratings specified by the appliance manufacturer or on the original bulb/label

This replacement light bulb restores interior illumination inside your appliance. Swap it in for a burned-out bulb so you can clearly see contents and monitor operation when the door opens or the light button is pressed.

• Provides interior light inside the appliance cavity
• Direct replacement for a failed or broken bulb
• Common symptoms: no light when the door opens, flickering/intermittent light, visibly darkened or broken bulb

• Disconnect power to the appliance before servicing
• Allow the old bulb and nearby surfaces to cool completely
• Remove any lens or cover to access the socket; install the new bulb in the same orientation as the original
• Handle with clean, dry hands or gloves; do not overtighten. Restore power and test

This fan motor is the rotating blower assembly that moves air through the appliance to support cooling, ventilation and proper operation. Replacing a worn motor restores airflow and helps maintain temperature control and performance. What it does:

• Drives the blower wheel to circulate air through the appliance cabinet and vents
• Restores airflow when the motor has failed or stalled
• Stops or reduces abnormal noise when the original motor bearings are worn
• Helps prevent overheating by maintaining proper ventilation

• Disconnect power before attempting any service to avoid shock or injury
• Handle the motor and blower wheel carefully to avoid damaging blades or connectors
• Verify wiring connections and mounting orientation match the original part before powering on

This run capacitor helps the appliance's motor start and run smoothly by providing a phase-shifted electrical boost. Replacing a worn capacitor restores reliable motor operation and can stop start-up problems and irregular running. What it does:

• Provides the motor with the extra electrical charge needed for starting and stable operation
• Commonly linked to symptoms like hard-starting, a loud humming motor, or motors that won't start
• Stabilizes motor speed and reduces stress on the motor and start components
• Works as a direct replacement for the original capacitor specified for the motor circuit

• Disconnect power to the appliance before servicing to avoid shock hazard
• Discharge the capacitor before touching terminals; capacitors can hold a charge after power is removed
• Use insulated tools and avoid bridging terminals during handling

This replacement power cord provides the electrical connection that supplies your appliance with mains power. It restores safe, reliable power delivery so your appliance can operate normally. What it does:

• Replaces a damaged or missing power cord to restore electrical connection
• Helps address symptoms like no power, intermittent power, or visible cord damage
• Maintains the appliance's grounded connection when matched to the original cord
• Routes power from the wall outlet to the appliance's inlet or terminal block

• One replacement power cord

• Disconnect power at the breaker or unplug the appliance before starting work
• Route the cord and secure strain relief/fasteners per the appliance's service instructions

This replacement grease filter captures airborne grease and cooking residue in your appliance's venting system, helping protect the blower and ductwork while maintaining effective ventilation and airflow.

• Traps grease and food particles carried by the exhaust airstream
• Helps sustain proper airflow and reduce smoke and lingering odors
• Replace if mesh is torn, warped, missing, or remains clogged after cleaning
• Common symptoms include persistent smoke/odors, visible grease buildup, or a loose/rattling filter

• Disconnect power before servicing and allow the appliance to cool completely
• Open the filter access, release the retaining latch or screws, and remove the old filter
• Slide the new filter into place, matching the original orientation/tabs
• Ensure the filter is fully seated and secured; do not operate the unit without a filter
