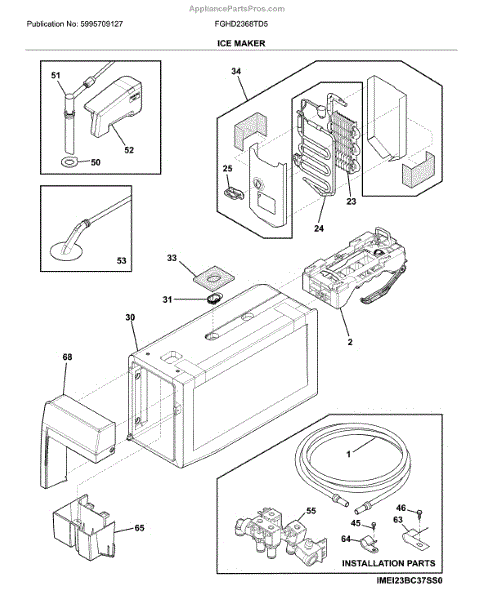

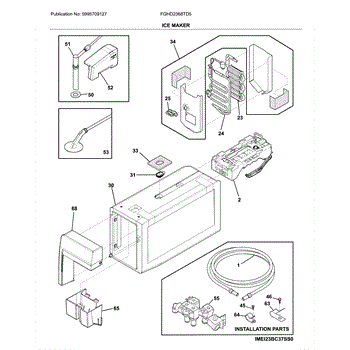

Parts for Frigidaire FGHD2368TD5: Ice Maker Parts

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air

The Ice Maker Assembly is an OEM part for Frigidaire refrigerators. It is responsible for automatically producing batches of ice through a process of freezing water into cube form. The ice maker works in conjunction with the refrigerator's freezer compartment and water supply line to perform its ice production function.

Symptoms of a faulty ice maker include:

• Failure to produce ice cubes
• Oddly shaped, sparse, or chunky ice output
• Leaks or water pools in the freezer
• Strange noises coming from the ice maker area
• Error codes shown regarding ice maker performance

Causes of a bad ice maker assembly can include issues with components like the mold heater, water valve, or agitator that are vital to the freezing process. Improper refrigeration temperatures or clogs preventing water flow can also negatively impact ice production.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This complete evaporator assembly circulates refrigerant and supports proper airflow in the freezer compartment to help maintain consistent cooling and reduce frost buildup. It replaces the evaporator coil and mounting components as an assembly. What it does:

• Enables refrigerant to absorb heat from the freezer, a core part of the cooling cycle
• Restores proper cold temperatures when a damaged or leaking evaporator causes poor cooling
• Helps reduce excessive frost or ice buildup when paired with a working defrost system
• Works with the evaporator fan and defrost components to maintain consistent freezer performance

• High-level replacement: may require accessing the freezer interior and removing liners or panels
• Handle refrigerant components with care; manage refrigerant service
• Disconnect power before starting work to avoid electrical shock or injury
• Inspect and test related components (evaporator fan, defrost heater/thermostat) for best results

This connector is a factory-style wire harness connector that secures electrical wiring and provides a reliable plug-in connection for appliance circuits. It helps restore proper electrical contact and prevents loose or intermittent connections. What it does:

• Joins wiring circuits with a keyed plug to ensure correct polarity and secure connection
• Restores power or signal continuity when an original plug is cracked, corroded, or loose
• Reduces arcing and intermittent operation caused by damaged connector ends
• Fits inline with existing harness locations to maintain OEM routing and function

• One replacement connector

• Always disconnect power at the breaker or unplug the appliance before starting
• Inspect adjoining wires and terminals; trim damaged insulation and use proper crimps if required
• Push connector fully onto mating plug until it latches; secure any retaining clips or harness ties
• If you see melting, heavy corrosion, or damaged wiring, replace the harness.

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It is designed to manage the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control, opening to allow water in and closing to stop the flow, ensuring proper operation of both ice production and water dispensing functions.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• Leaking water at the back or bottom of the refrigerator
• An unusually noisy operation when the valve is activated

Causes of a bad water inlet valve can include mineral buildup, which may obstruct the flow of water, mechanical failure of the solenoids, or wear and tear that leads to leaks or failure to open/close properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

Color: Black/natural. Nylon

Replacement cover that restores appliance appearance and protects internal components from dirt and damage. Installs in place of a worn, cracked or missing cover to keep controls and wiring safely concealed and the unit looking finished. What it does:

• Protects the control area and internal components from spills, dust, and accidental contact.
• Hides and secures wiring and mounting points to prevent snagging or tampering.
• Restores the appliance's finished look when the original cover is scratched, cracked, broken, loose, or missing.
• Helps reduce the chance of debris entering sensitive areas that can affect performance.

• One replacement cover.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Basic hand tools are typically required; support the cover while removing fasteners to avoid dropped parts.
• Handle edges carefully to avoid cuts and to prevent scratching adjacent surfaces.
• Refer to the appliance's service manual or model-specific instructions for exact removal and reinstallation steps.

This is a refrigerator door gasket that restores a tight seal to maintain proper cooling and help reduce frost and energy loss. Replacing a worn gasket improves temperature stability and keeps food fresher longer. What it does:

• Seals the refrigerator door to prevent warm air and moisture from entering the fresh-food compartment.
• Helps stop frost buildup and water pooling caused by a failing seal.
• Can reduce excessive run time from the compressor associated with air leaks.
• Common symptom: visible gaps, brittle or torn rubber, or a door that no longer seals evenly.

• One refrigerator door gasket.

• Remove stored food and shelves as needed for safe access before starting.
• Clean and dry the mounting surface thoroughly before installing the new gasket.
• Seat the gasket evenly around the door frame and check the door closing and seal.

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing
