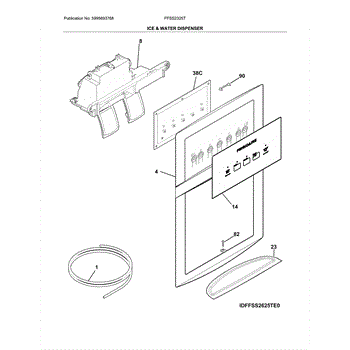

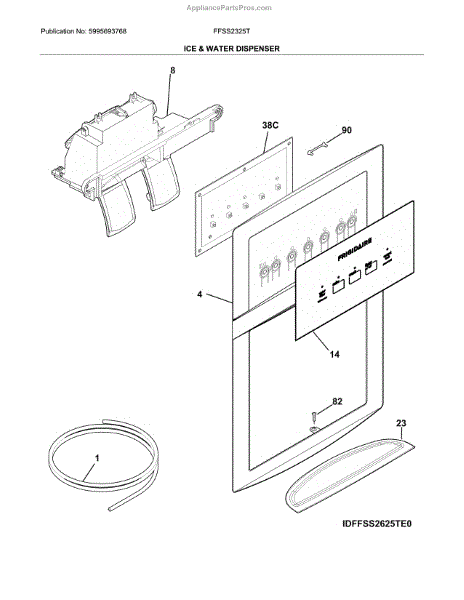

Parts for Frigidaire FFSS2325TS0: Ice & Water Dispenser Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

This is the black front cover for the refrigerator dispenser control module. It snaps over the user interface on the door to protect the electronics and restore a clean, finished look when the original cover is cracked or missing.

• Covers and protects the dispenser control module from everyday contact and moisture
• Provides a finished trim around the dispenser controls
• Helps keep the control area clean and secure
• Common symptoms: visible cracks, broken tabs, loose or missing cover, exposed controls

• Disconnect power to the refrigerator before servicing
• Carefully release the old cover's retaining tabs; avoid stressing the wiring or control board
• Align the new cover and press until all tabs fully engage
• Restore power and verify buttons operate and the cover sits flush

This dispenser module is the electronic control board that operates the refrigerator's ice and water dispenser functions, restoring responsive dispenser controls and signals for normal dispensing. What it does:

• Controls dispenser buttons, switches and dispenser motor/solenoid signals
• Manages dispenser light and status indicators
• Can stop the dispenser from responding if the module fails
• Common symptom: dispenser does not respond or dispense water/ice when activated

• Disconnect power to the appliance before starting any repair
• Handle the module carefully to avoid ESD damage; avoid touching circuit traces
• Reconnect wiring securely and test dispenser operation before reassembling trim

The Dispenser Module is an OEM part for Frigidaire refrigerators. It houses the electrical controls, sensors, and dispensing mechanism that governs on-demand water access.

Causes of a bad dispenser module can include water damage to internal circuits from repeated use, loose wiring connections experiencing constant flexing, as well as normal wear over extended cycles.

Symptoms of a bad dispenser module include:

• Unresponsive or intermittent water dispensing
• Inaccurate fill levels and cup recognition capabilities
• Error codes or unexpected lockouts triggered
• Leaks developing around electrical component areas

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This ice and water module replaces the refrigerator control that manages ice-maker and water-dispenser operation, helping restore normal ice production and water dispensing when the original module stops responding. What it does:

• Controls ice-maker and water-dispenser signals to coordinate fill, harvest and dispense cycles.
• Helps resolve symptoms such as no ice production, dispenser not dispensing, or unresponsive dispenser/ice controls.
• Interfaces with dispenser switches, water valves and ice-maker components to carry out dispense and fill commands.
• Replaces a failed control module to restore consistent ice and water functionality.

• Disconnect refrigerator power and shut off the water supply before beginning service.
• Handle the module and electrical connectors carefully; avoid static discharge and ensure connectors are fully seated.
• Reinstall in the original location using the same mounting and harness connections; secure wiring to prevent pinching.
• After installation, restore water and power, run a dispenser/ice cycle, and check for proper operation and leaks.

This module cover label restores clear, readable control markings on your appliance's module cover. Replace a worn or missing label to keep settings easy to identify and maintain a clean, factory look. What it does:

• Restores readable control text/icons on the module cover
• Replaces a faded, peeling, or damaged overlay
• Helps prevent mis-selection due to illegible markings
• Refreshes overall appearance

• One module cover label

• Disconnect power before servicing to prevent accidental operation.
• Access the module cover; remove it if your model requires.
• Clean and fully dry the application surface; confirm orientation.
• Align carefully, apply from one edge, and press evenly to seat the label; reassemble and restore power.

This drip tray collects defrost and condensation water and channels it to the refrigerator's drain area to help prevent puddling under the unit. Replace a cracked or warped tray to restore normal water drainage. What it does

• Captures meltwater from the evaporator/defrost cycle so it can drain or evaporate safely
• Prevents water from pooling or leaking onto the floor beneath the appliance
• Helps reduce musty or damp odors caused by standing water when functioning properly
• Works with the fridge's drain system; replace if warped, cracked, or corroded

• Always unplug the appliance before accessing or replacing the tray
• Access method varies by model (toe-kick removal, slide-out pan, or rear access); follow your model's service instructions
• Inspect drain tube and pan seating; ensure the tray sits flat and the drain line is aligned
• Wear gloves to protect against sharp edges and dispose of the old tray properly

This dispenser drip tray fits beneath the refrigerator's water/ice dispenser to catch minor drips and spills, helping keep the freezer door area clean and dry.

• Collects drips from the dispenser to prevent puddles and staining on the door
• Helps reduce moisture that can lead to odors or mineral buildup
• Common signs it's needed: cracked or missing tray, water collecting on the door, tray no longer seating securely
• Color: black

• Unplug the refrigerator and remove the existing tray by lifting straight out
• Clean the recess before installing the new tray
• Align and press the new tray into place until fully seated
• Check fit and ensure it's level so water drains into the tray

This dispenser drip tray sits beneath the refrigerator's ice/water dispenser to catch drips and small spills, helping keep the area cleaner and reducing moisture on the door and surrounding surfaces.

• Collects water and ice drips under the dispenser
• Helps contain minor spills during dispensing
• Protects the door surface from moisture and staining
• Common signs of wear: cracked or missing tray, water pooling in the dispenser area, tray not sitting flush

• Disconnect power before working around the dispenser area
• Lift the old tray straight up and out of the recess
• Clean and dry the dispenser pocket to remove residue
• Align and press the new tray down until it sits flat and secure

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This refrigerator electronic control board manages key cooling and defrost functions. Replacing a failed board helps restore accurate temperature regulation and responsive operation so the appliance runs as designed.

• Regulates compressor and fan operation based on temperature sensor inputs
• Controls the automatic defrost cycle to prevent frost buildup
• Coordinates signals to the user controls/display and other components
• Common failure symptoms: not cooling or intermittent cooling, unit won't run, excessive frost/ice, unresponsive or erratic controls

• Disconnect power to the appliance before service
• Use anti-static precautions; handle the board by the edges only
• Photograph wiring; move connectors one at a time to the matching terminals on the new board
• Ensure all connectors are fully seated before reassembly and testing

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This refrigerator water inlet tube channels water from the valve into the internal dispensing/ice system. Replace a cracked, kinked, or clogged tube to restore proper flow and help stop leaks at the rear or inside the cabinet.

• Routes water from the inlet valve to the refrigerator's water system
• Helps resolve leaks, weak/no dispenser flow, or no ice production due to damaged or restricted tubing
• Replaces brittle, cracked, or kinked tubing that can cause drips or water damage
• Maintains a sealed path when properly seated in the existing fittings

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel/pan to catch residual water
• Note the original routing; transfer any reusable clips/fittings from the old tube
• Cut ends square if required, push fully into couplers, restore water, and check carefully for leaks before reconnecting power

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
