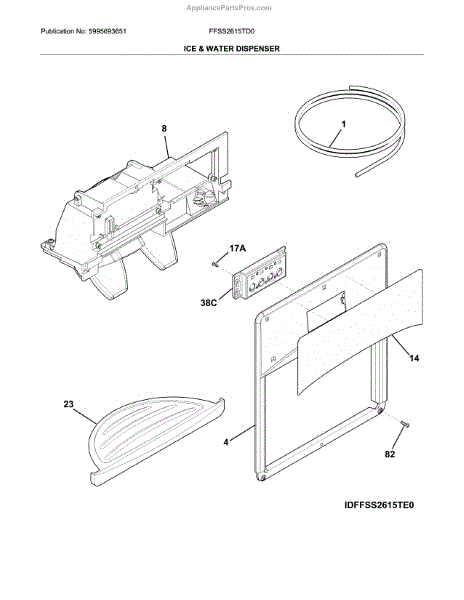

Parts for Frigidaire FFSS2615TD0: Ice & Water Dispenser Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

The Dispenser Facade is an OEM part for Frigidaire refrigerators. It forms the decorative facing around the ice and water dispenser area located externally on the door. Besides providing an aesthetic covering, the facade also protects internal components from accidental damage.

Causes of a bad dispenser facade can include scratches, cracks or discoloration from normal opening and closing of the refrigerator door over many years of usage.

Symptoms of a bad dispenser facade include:

• Worn, faded or damaged external appearance
• Exposed internal dispenser parts that could be at risk for impact damage

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The refrigerator dispenser Module is an OEM replacement part for with Frigidaire refrigerators. This internal module contains mechanisms that dispense both water and ice from the refrigerator door.

Symptoms of a bad dispenser module include:

• Improper or incomplete dispensing of water or ice
• Leaks or moisture around the dispenser area
• Noises or grinding occurring during operations
• Dispenser controls malfunctioning or unresponsive

Causes of a bad module may stem from worn parts, clogs or blockages within its system, or damage over time and use. Without a properly functioning dispenser module, your refrigerator loses a primary convenience.

This Frigidaire OEM is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a replacement screw used to secure panels, trim and other appliance components to restore proper fit and reduce rattling. It matches the OEM part form and fastening function for compatible Frigidaire appliances. What it does:

• Secures panels, brackets or trim to maintain proper alignment and appearance
• Replaces missing, stripped or damaged screws that cause loose parts or vibration
• Helps prevent rattling and keeps components seated for safe operation
• Restores original fastening where a worn or corroded screw failed

• Disconnect power to the appliance before beginning any repair to avoid electrical hazard
• Use the correct screwdriver or driver bit and hand-start threads to avoid cross-threading
• Tighten until snug; avoid overtightening which can strip threads or damage panels
• If thread damage is present, replace with the correct OEM fastener (do not force)

The Switch-4 Button Assembly is an OEM part for Frigidaire refrigerators. This switch assembly operates important refrigerator functions like the light controls, temperature selection, and ice/water dispenser functions. It contains four precise switches designed to last through years of use while maintaining accurate input control.

Causes of a bad switch assembly can include continuous actuations over time leading to switch wear, accidental damage or spills compromising switch integrity, or failures in electronic components.

Symptoms of a bad switch assembly include:

• Lights or temperature settings not functioning properly
• Ice/water dispenser buttons not working as expected
• Failed or improperly actuating switches
• Water leaks or electrical issues at the switch location

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This refrigerator water inlet tube channels water from the valve into the internal dispensing/ice system. Replace a cracked, kinked, or clogged tube to restore proper flow and help stop leaks at the rear or inside the cabinet.

• Routes water from the inlet valve to the refrigerator's water system
• Helps resolve leaks, weak/no dispenser flow, or no ice production due to damaged or restricted tubing
• Replaces brittle, cracked, or kinked tubing that can cause drips or water damage
• Maintains a sealed path when properly seated in the existing fittings

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel/pan to catch residual water
• Note the original routing; transfer any reusable clips/fittings from the old tube
• Cut ends square if required, push fully into couplers, restore water, and check carefully for leaks before reconnecting power

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
