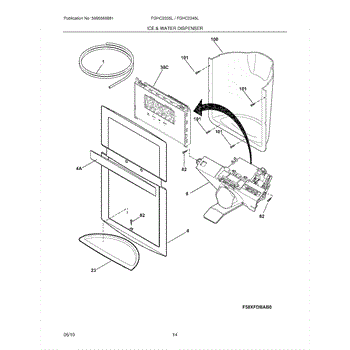

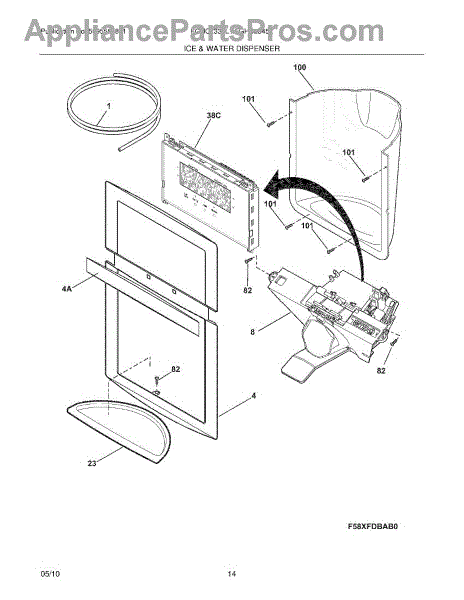

Parts for Frigidaire FGHC2335LP0: 15 - Ice & Water Dispenser Parts

The Frigidaire PureAir Ultra Refrigerator Air Filter Cartridge PAULTRA is an OEM part for Frigidaire refrigerators. Positioned within the air filter housing, the cartridge utilizes advanced carbon filtration technology to remove household odors from circulating air passing through the recycling vent system. The filter measures approximate dimensions of 6-1/2" x Width: 4-7/8" and should be changed every 6 months.

Causes of reduced performance include gradual saturation of the filter material from trapped particles and molecules over time as specified by the replacement recommendation interval.

Symptoms requiring a new cartridge include:

• Return of odors to refrigerator shelves and compartments
• Development of musty smells emanating from the ventilation area
• Reduced airflow effectiveness as pores become blocked
• Filter material visible wear through handling

This OEM Frigidaire part is also compatible with some Kenmore and Maytag models using Frigidaire ventilation components.

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This dispenser module manages the refrigerator's ice and water dispenser interface on the door. Sometimes called the dispenser control board or UI module, it reads paddle/button inputs and coordinates dispenser functions for consistent, responsive operation.

• Interprets inputs from the dispenser paddle and selection buttons
• Controls ice and water dispensing functions at the door
• Manages dispenser indicator/display functions
• A failed module can cause no dispensing, unresponsive buttons, dead lights, or intermittent operation

• Disconnect power to the refrigerator before servicing; turn off water supply if working near lines
• Carefully remove dispenser trim and panel; protect the finish and watch sharp edges
• Handle the electronics with ESD care; move wire connectors one at a time to the new module
• Restore power and test all dispenser selections and lighting

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This liner sump is the molded drain pan that collects and channels defrost and condensation water inside the freezer/refrigerator cabinet, helping prevent leaks and directing moisture to the drain system. What it does:

• Collects defrost and condensation water from the evaporator area
• Channels water to the cabinet drain to avoid pooling and potential leaks
• Helps keep the freezer/refrigerator interior dry and reduces ice build-up around the evaporator
• Compatible with OEM mounting points and drainage pathways when correctly installed

• One liner sump

• Disconnect power to the appliance before beginning service
• Access may require removing interior panels or the evaporator cover; follow factory service instructions
• Handle carefully to avoid damage to the molded drain passages; ensure proper seating and seal when reinstalling
• After installation, restore power and run a short defrost or water test to ensure proper drainage

This is a factory replacement screw fastener used to secure components in your appliance. It restores a tight, rattle-free fit for panels, brackets, and trim when an original screw is missing, stripped, or corroded.

• Secures panels, brackets, and trim to the appliance cabinet or liner
• Replaces a missing, stripped, or rusty screw
• Helps eliminate looseness, vibration, or rattling components
• Maintains proper alignment and a clean, factory fit

• Unplug the appliance before servicing; if near water lines, shut off the supply
• Match to the original and install in the same location/orientation
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Keep and reuse any original washers or spacers if present

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This water inlet tube routes incoming water from the supply to the refrigerator's internal water system, restoring proper flow for the dispenser and icemaker. Replace a damaged tube to stop leaks and regain reliable water delivery. What it does

• Channels water from the household supply to the fridge's water valve, dispenser, and icemaker
• Helps prevent leaks caused by cracked, pinched, or deteriorated tubing
• Can restore water flow when internal tubing is blocked or split
• Works with the appliance's existing fittings and seals when installed correctly

• One water inlet tube

• Disconnect power and shut off the water supply before beginning work
• Inspect and reuse only original fittings and seals if undamaged; replace seals if leaking
• Avoid sharp bends or kinks when routing the tube; secure with existing clips or brackets

This replacement refrigerator water tube routes water or condensate between components and maintains a sealed path. Replacing cracked, kinked, or brittle tubing helps stop leaks and restore proper water movement through the system.

• Provides a sealed path to carry water within the refrigerator assembly
• Maintains proper routing to help prevent kinks and restrictions
• Typical failure signs: water leaking inside or underneath, pooling water, visible cracks/brittleness, restricted flow
• Replacing damaged tubing helps prevent water damage to surrounding parts

• Disconnect power and shut off the water supply before servicing
• Note the original routing and connection points; match the length and path during installation
• Fully seat tube ends into existing fittings; transfer any clips/ferrules from the original as required and avoid sharp bends
• Restore water and power, then run and inspect all connections for leaks

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
