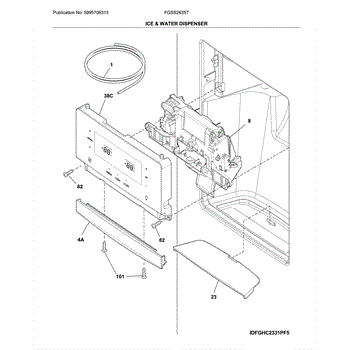

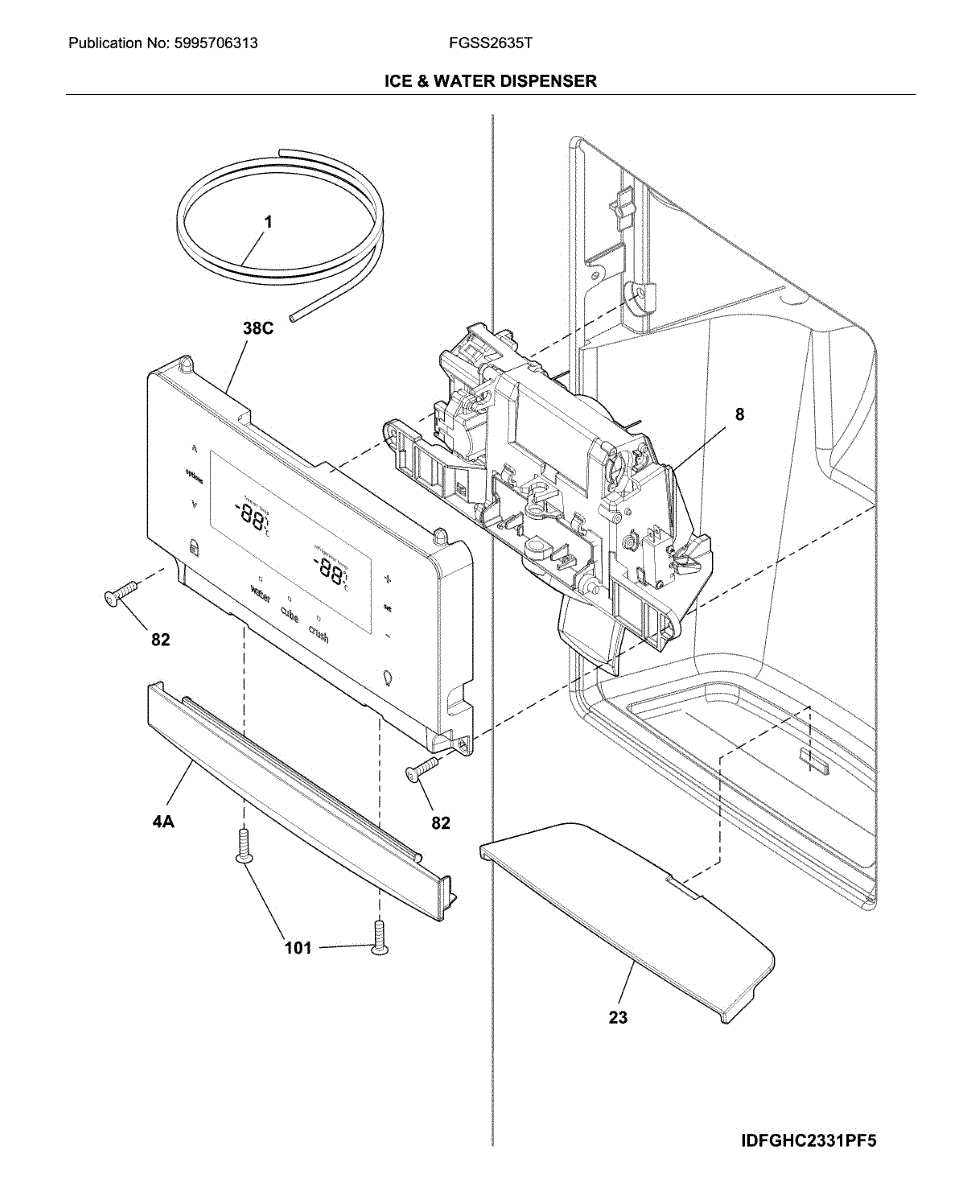

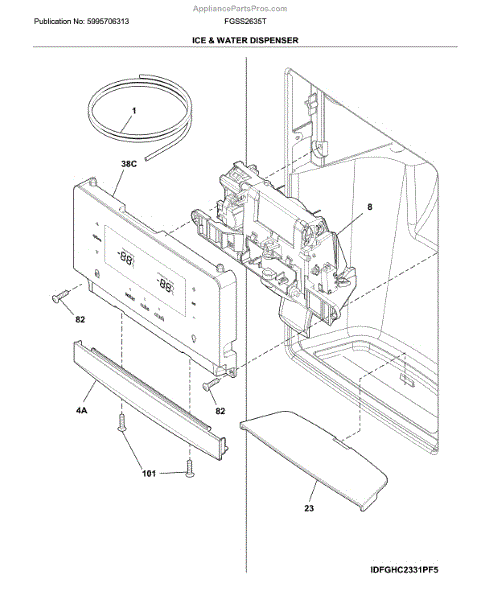

Parts for Frigidaire FGSS2635TP0: Ice & Water Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

This trim facade is the front decorative trim piece that finishes the appliance's control area and improves the cabinet appearance. It replaces cracked, scratched, or discolored trim to restore a clean, finished look. What it does:

• Covers and protects the front edge of the control panel or cabinet opening
• Restores a uniform, finished appearance when original trim is damaged or worn
• Helps keep dirt and moisture from reaching internal panel edges
• Fits to the appliance using existing clips or fasteners for a secure fit

• Disconnect power to the appliance before starting work
• Remove any surrounding trim or screws as needed to access clips or fasteners
• Align trim with existing mounting points and press or secure with original hardware
• If clips or screws are damaged, replace them before final installation

Color: Stainless Steel
The Dispenser Trim is an OEM part for Frigidaire refrigerators. It surrounds the ice and water dispenser area located externally on the refrigerator door.

Causes of a faulty dispenser trim can include cracks, chips or damage from impacts or general wear over time.

Symptoms of failure include:

• Water leaks developing around the dispenser opening
• Loose or detached trim that does not sit flush
• Access to dispenser functions being obstructed

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser Module is an OEM part for Frigidaire refrigerators. It functions to dispense filtered water and ice through the refrigerator door. The module works with the water filtration system as well as ice maker components like the evaporator and ice accumulator, to monitor water levels and release ice or water on demand.

Symptoms of a bad dispenser module include:

• Inconsistent or failing water or ice dispensing
• Water leaks inside refrigerator compartments
• Fault codes or error messages related to dispensing issues
• Repeated trips requiring door access for dispenser system checks

Causes of failure can be worn electronic contacts, failures in water or ice level sensors, or moisture damage over time. Replacement maintains integrated controls for convenient filtered water access.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

Replacement sump that collects and channels condensation and defrost water into the refrigerator drain system, helping stop leaks and pooling under shelves or inside the cabinet. Restores proper drainage and reduces water buildup. What it does:

• Collects and routes defrost/condensation water into the fridge drain path and toward the evaporator pan or drain pump.
• Helps prevent water pooling inside the fresh-food compartment and puddles under the appliance.
• Can address symptoms like water under the refrigerator, slow or blocked drainage, or recurring puddles inside the cabinet.
• Sits in the drain channel and mates with the factory drain path to maintain a sealed flow.

• Disconnect power to the appliance before starting any repair.
• Remove interior shelves/drawers and the toe kick as needed to access the sump area.
• Inspect and clear the drain channel before installing; ensure the sump seats fully to avoid leaks.

This dispenser drip tray sits at the base of the refrigerator's ice/water dispenser. It catches small drips and splashes to help keep the dispenser recess and door front cleaner and drier. What it does:

• Collects minor drips and splashes from the ice and water dispenser
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common signs include water pooling in the dispenser recess or a loose, ill-fitting tray

• 1 dispenser drip tray

• Pull the old tray straight out of the dispenser recess; no tools are typically required
• Clean any mineral deposits or debris in the recess before installing the new tray
• Align and seat the new tray flat and flush in the opening
• Disconnect power and shut off water

This electronic console control assembly replaces a faulty oven/range control to restore timer, display, and user-input functions so you can set bake/ broil temperatures and use the clock and timer again. What it does

• Houses the oven's electronic control board and user interface for setting bake/broil temperatures, timers and clock
• Receives and processes front-panel inputs so the oven responds to touchpad or button commands
• Sends control signals to heating elements, igniters or relays to regulate cooking cycles
• Common symptoms: unresponsive display or touchpad, clock/timer not working, or oven controls that don't accept settings

• One control assembly (console electronic control)

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the assembly carefully and avoid touching circuit contacts; observe ESD precautions where possible
• Transfer any brackets, bezels or connectors from the old assembly exactly as found; verify harness connections are secure

The Control Assembly is an OEM part for Frigidaire refrigerators. It includes the electronic circuit boards, touch pad controls and wiring that allow for operation and monitoring of refrigerator functions and temperatures.

Causes can be short circuits, water damage, power surges over time that degrade electronic components.

Symptoms of a bad control assembly include:

• Failure of temperature or setting displays
• Inoperable or unresponsive touch controls
• Refrigerator malfunctions like freezing up or not cooling
• Repeated blowing of fuses

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, restoring proper water flow and preventing leaks when the original tubing is cracked or worn. Simple direct-fit replacement when the OEM tubing fails. What it does:

• Carries water between the refrigerator supply and the dispenser or ice maker
• Replaces cracked, split or collapsed tubing that can cause leaks
• Helps restore steady water flow and proper ice-making or dispensing
• Prevents water damage from deteriorated or pinched lines

• Designed for refrigerator models that use this exact OEM tube
• Disconnect power and shut off the water supply before replacing tubing
• Inspect connections and seals; replace any damaged clips or fittings to ensure a watertight seal
