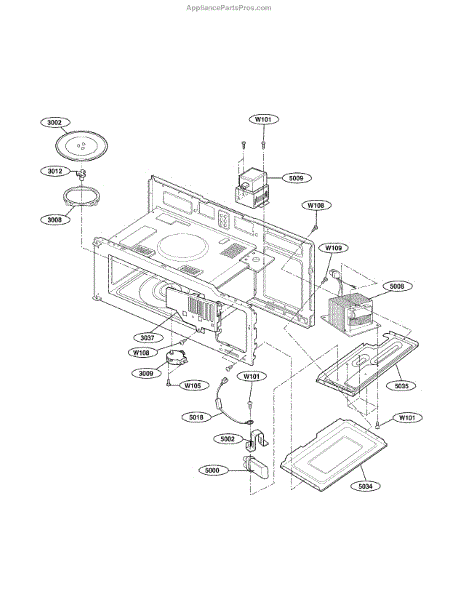

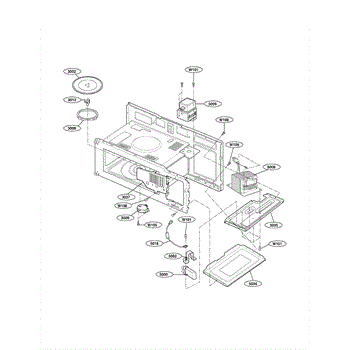

Parts for Lg LMV1625B: Interior Parts (I) Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This turntable motor drives your microwave's glass tray, rotating food for more even heating. Replacing a failing motor restores proper tray movement and helps reduce cold spots during cooking. What it does:

• Rotates the glass tray via the turntable coupler during cook cycles
• Helps promote even heating by keeping food moving
• Addresses symptoms such as the tray not turning, intermittent rotation, or grinding/clicking noises from beneath the cavity
• Useful check: ensure the roller ring and coupler aren't damaged or obstructed

• 1 turntable motor

• Disconnect power; microwaves contain high-voltage components that can retain a charge
• Typically accessed from the unit's bottom panel; remove the cover to reach the motor
• Move the two wires and mounting screws from the old motor to the new one; align the shaft with the coupler
• After reassembly, confirm the tray sits correctly on the roller ring and spins freely

A high-voltage capacitor for the appliance's high-voltage circuit that stores and releases electrical energy to support proper heating operation. Replacing a failing capacitor can restore consistent heating and prevent related electrical faults. What it does:

• Stores and delivers high-voltage energy used by the magnetron/ high-voltage assembly to generate heat.
• Failure may cause no-heat or weak-heat conditions in the oven.
• Faulty capacitors can contribute to arcing, loud humming, or blown high-voltage fuses.
• Works as part of the HV circuit; not a user-serviceable low-voltage control.

• High-voltage components can hold a dangerous charge—disconnect power and discharge the capacitor before servicing.
• Use insulated tools and avoid touching terminals; verify proper operation with appropriate test equipment.

A high-voltage capacitor for the appliance's high-voltage circuit that stores and releases electrical energy to support proper heating operation. Replacing a failing capacitor can restore consistent heating and prevent related electrical faults. What it does:

• Stores and delivers high-voltage energy used by the magnetron/ high-voltage assembly to generate heat.
• Failure may cause no-heat or weak-heat conditions in the oven.
• Faulty capacitors can contribute to arcing, loud humming, or blown high-voltage fuses.
• Works as part of the HV circuit; not a user-serviceable low-voltage control.

• High-voltage components can hold a dangerous charge—disconnect power and discharge the capacitor before servicing.
• Use insulated tools and avoid touching terminals; verify proper operation with appropriate test equipment.

The Magnetron is an OEM part for LG microwaves. As the primary cooking mechanism, it generates microwave energy to heat and cook foods quickly.

Causes can be from normal wear and tear over years of use. Damage may also occur if the microwave interior is exposed to moisture, spills or debris.

Symptoms of a faulty magnetron include:

• Slow or ineffective cooking
• Hot or cold spots in cooked foods
• Buzzing or humming noises emanating from inside the microwave

This OEM LG part is also compatible with some Kenmore models.
