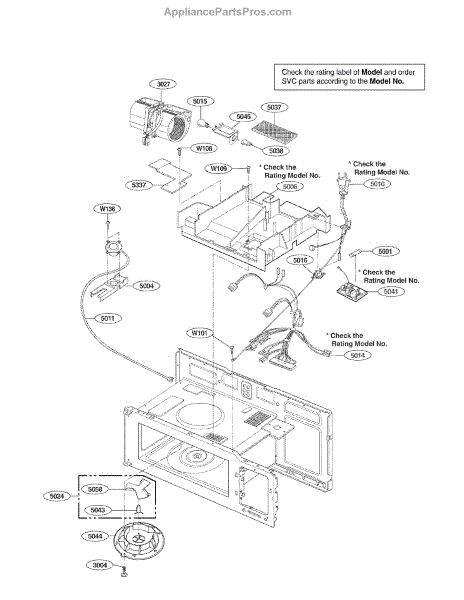

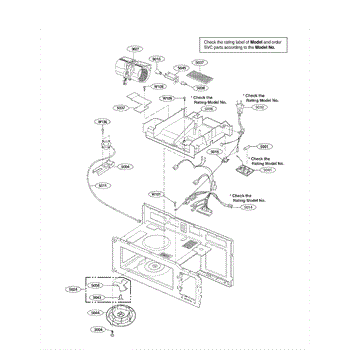

Parts for Goldstar MV1604ST01: Interior Parts Ii Parts

This humidity sensor assembly monitors moisture inside the microwave cavity during Sensor Cook and Reheat cycles, allowing the control to automatically adjust time and power. Replacing a failed sensor can restore accurate, reliable sensor-based cooking performance. What it does:

• Detects steam/humidity in the cavity for auto-sensing cook and reheat programs
• Sends feedback to the control board to adjust power levels and cook time
• Failure symptoms include sensor cook not starting, stopping early, "sensor" error messages, or inconsistent results on auto settings

• One humidity sensor assembly

• Unplug the appliance before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Handle the sensor face carefully and keep it clean; route and secure the wire harness as originally

This microwave thermostat is the safety control that monitors temperature and opens the circuit if overheating is detected, protecting internal components. Replace it if your oven is dead, loses heat, or shuts off mid-cycle due to a failed thermostat. What it does:

• Monitors temperature and interrupts power when overheating occurs to help prevent damage
• Helps protect internal components and wiring from excessive heat
• Failure can cause: no power, shuts off during or shortly after starting, or runs but does not heat
• Replacing a failed thermostat helps restore normal operation and safety protections

• 1 thermostat

• Unplug the appliance; microwaves contain high-voltage components that can retain a lethal charge even when unplugged
• Remove the outer cover to access the thermostat; location varies by model
• Move wires one at a time to the new thermostat and mount it firmly against the mating surface for proper heat sensing
• Reassemble, restore power, and test operation

This fan assembly moves air through the unit to cool internal components and maintain proper ventilation. Replacing a worn or seized fan restores correct airflow, helps prevent overheating, and reduces excessive noise from a failing motor or wheel.

• Circulates cooling air across internal components to prevent overheating
• Exhausts air through the vent/duct path for proper ventilation
• Common symptoms: fan not running, weak airflow, or loud rattling/squealing
• Unit may overheat or shut off during use when the fan fails

• Disconnect power before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge—follow proper safety procedures.
• Remove access panels to reach the fan housing; note airflow direction and wire orientation.
• Transfer any brackets, grommets, or screws from the original assembly if required.
• After installation, verify the wheel spins freely and airflow direction is correct before reassembly.

The Charcoal Filter is an OEM replacement part for LG microwaves. The charcoal filter works to remove undesirable cooking odors, steam, and grease vapors from the air circulated inside the microwave. It traps airborne particles and deodorizes airflow using an advanced charcoal formulation.

Causes of a bad charcoal filter can include normal saturation over 6-12 months of regular use. Prolonged high-heat cooking and grilling can also cause premature clogging.

Symptoms of a bad filter include:

• strong lingering cooking smells that linger in the microwave interior and escape into the kitchen.
• Food may take on secondary odors from previous heating sessions.

This OEM LG part is also compatible with some Kenmore model microwaves.

This fan assembly moves air through the unit to cool internal components and maintain proper ventilation. Replacing a worn or seized fan restores correct airflow, helps prevent overheating, and reduces excessive noise from a failing motor or wheel.

• Circulates cooling air across internal components to prevent overheating
• Exhausts air through the vent/duct path for proper ventilation
• Common symptoms: fan not running, weak airflow, or loud rattling/squealing
• Unit may overheat or shut off during use when the fan fails

• Disconnect power before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge—follow proper safety procedures.
• Remove access panels to reach the fan housing; note airflow direction and wire orientation.
• Transfer any brackets, grommets, or screws from the original assembly if required.
• After installation, verify the wheel spins freely and airflow direction is correct before reassembly.
