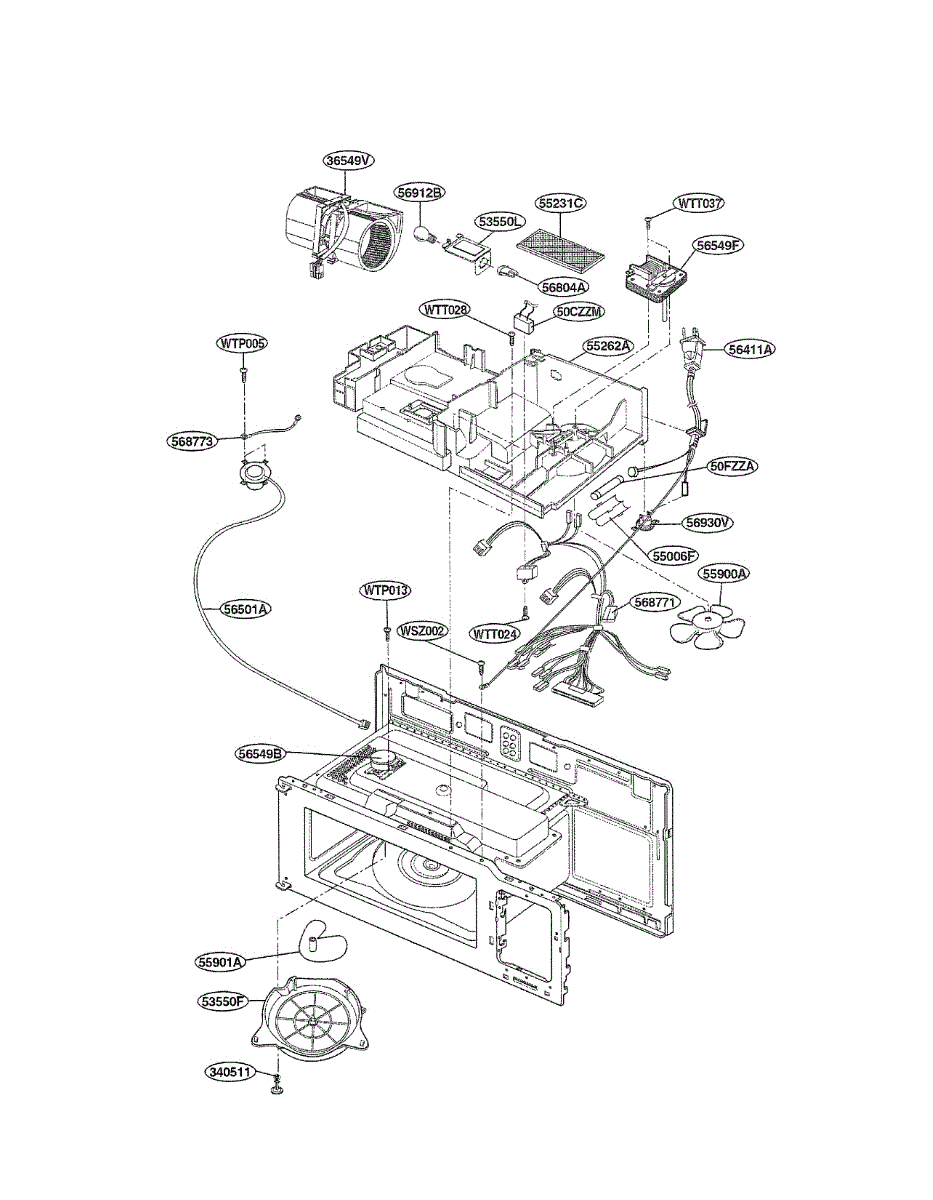

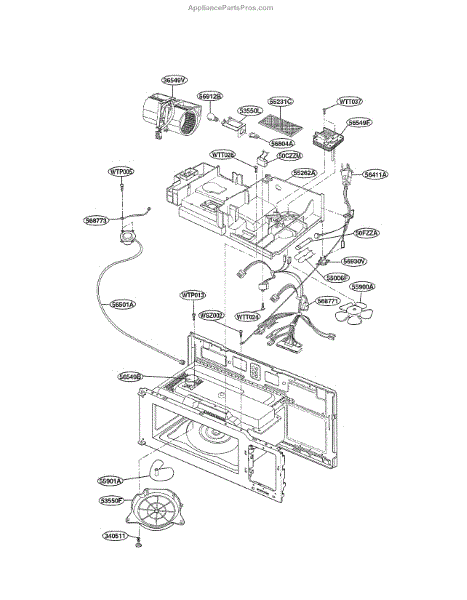

Parts for Lg LMV1645SB01: Interior Parts (Ii) Parts

The Time Delay Fuse is an OEM part for LG microwaves. This fuse provides a safety mechanism by delaying the flow of electricity, protecting the microwave's electrical components from power surges and ensuring the appliance operates safely. It helps to prevent immediate damage in the event of a power surge or electrical fault, thus prolonging the lifespan of the microwave.

Over time, the time delay fuse can become damaged due to electrical surges, wear and tear, or faulty connections. If the fuse blows, it can disrupt the microwave’s ability to function correctly.

Symptoms of a bad time delay fuse include:

• The microwave not turning on
• No response from the microwave control panel
• The microwave stopping unexpectedly during operation
• Electrical issues or blown circuits in the microwave

This OEM LG part is also compatible with Sears/Kenmore models.

The Charcoal Filter is an OEM part for LG microwaves. It plays a crucial role in filtering and removing odors, smoke, and grease particles from the air during cooking. It is constructed with activated charcoal, which has absorbent properties and helps to eliminate cooking odors.

Over time, the charcoal filter can become saturated and less effective in odor removal. It is recommended to replace the charcoal filter periodically to maintain optimal performance and ensure clean and fresh air in your kitchen.

Symptoms of a saturated or clogged charcoal filter may include:

• Lingering cooking odors in the kitchen
• Reduced efficiency in capturing smoke or grease particles
• The presence of visible debris or discoloration on the filter

This OEM LG part can also be used on Kenmore/Sears appliances.

This humidity sensor assembly monitors moisture inside the microwave cavity during Sensor Cook and Reheat cycles, allowing the control to automatically adjust time and power. Replacing a failed sensor can restore accurate, reliable sensor-based cooking performance. What it does:

• Detects steam/humidity in the cavity for auto-sensing cook and reheat programs
• Sends feedback to the control board to adjust power levels and cook time
• Failure symptoms include sensor cook not starting, stopping early, "sensor" error messages, or inconsistent results on auto settings

• One humidity sensor assembly

• Unplug the appliance before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Handle the sensor face carefully and keep it clean; route and secure the wire harness as originally

This replacement lamp socket holds the light bulb and provides a stable electrical connection so your appliance light works reliably. Replace a heat-damaged or loose socket to restore consistent illumination and help prevent flicker, arcing, and premature bulb failure.

• Secures the bulb and connects it to power
• Restores proper interior or work-area lighting
• Addresses flickering, intermittent light, or bulbs failing early from poor contact
• Replaces sockets that are cracked, melted, or discolored

• Disconnect power at the breaker or unplug before servicing
• Allow the area to cool; wear gloves and safety glasses
• Note wire positions and transfer one lead at a time to the new socket
• If servicing a microwave, access only the lamp area per your model instructions; do not open the cabinet—internal components can retain high voltage

The Light Bulb is an OEM part for LG microwaves. It provides illumination inside the microwave oven, allowing users to monitor the cooking process and check the condition of the food without opening the door.

Causes of a bad light bulb can include normal wear and tear, electrical surges, or damage due to impact or overheating. Over time, the filament inside the bulb can burn out, or the bulb itself can become loose or disconnected.

Symptoms of a bad light bulb include:

• The microwave interior light not turning on
• Flickering or dimming of the light
• Intermittent lighting during operation

This OEM LG part is also compatible with Sears/Kenmore models.

The Thermostat is an OEM part for LG microwaves. This part monitors and regulates the temperature within the appliance. The thermostat ensures that the microwave does not overheat, automatically shutting off the power if the internal temperature exceeds safe levels. This preventive measure helps to avoid damage to the microwave and potential safety hazards in the kitchen.

Causes of a bad thermostat can range from normal wear and tear, which may cause the component to lose its calibration over time, to overheating incidents that permanently damage its sensitivity.

Symptoms of a bad Microwave Thermostat include:

• The microwave unexpectedly turning off during use
• The microwave failing to start
• Inconsistent cooking temperatures or unevenly cooked food

This OEM LG part is also compatible with some Kenmore models.
