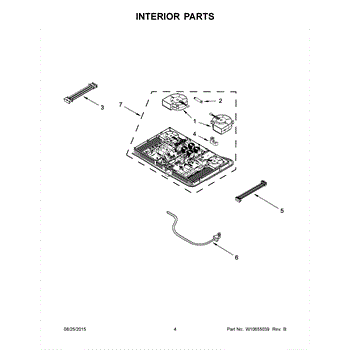

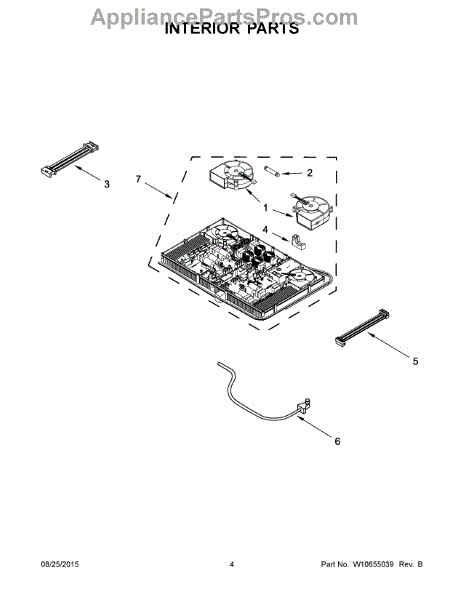

Parts for Kitchenaid KICU500XBL01: 03 - Interior Parts

This thermal fuse is a one-time safety cutoff that stops heat when temperatures rise above safe limits, protecting the appliance from overheating. Replace a blown fuse to restore proper thermal protection and heating control. What it does:

• Opens the circuit to the heating element when overheating is detected to prevent unsafe temperatures.
• Common symptom: dryer runs but produces little or no heat.
• Can cause dryers to stop heating even though the motor and controls seem to work.
• Helps prevent thermal damage or fire by cutting power to the heater when needed.

• Disconnect power to the appliance before accessing the heating assembly.
• Replace with the exact OEM part; match terminals and mounting location.

This wire harness connects internal electrical components to route power and signals so the appliance operates reliably. Replacing a damaged harness restores safe, consistent electrical connections and helps resolve power-related faults. What it does:

• Routes power and signal connections between control modules and internal components
• Restores proper electrical continuity when wires are frayed, burned, or broken
• Can stop intermittent operation, loss of power, or components that won't respond
• Prevents shorting or arcing caused by damaged insulation or loose terminals

• One complete wire harness as shown

• Disconnect power (unplug or shut off breaker) before starting any repair
• Photograph or label connections to ensure correct reassembly
• Route harness away from sharp edges, moving parts, and heat sources; secure with existing clips

The Induction Module is an OEM part for Whirlpool induction ranges. As the central control for induction cooking surfaces, it precisely regulates electromagnetic energy output to provide fast, even heating.

Causes of a bad module can include liquid damage, power surges, or wear over many cooking cycles. Mishaps can disrupt key functions.

Symptoms of a bad module include:

• Unresponsive touch controls or displays
• Inability to detect cookware on heating zones
• Failure to generate magnetic fields for cooking
• Tripping of electrical breakers during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A general-purpose appliance adhesive used to bond and seal interior and exterior components. Restores secure attachment of trim, insulation, and small panels so parts stay in place and function properly. What it does

• Bonds loose trim, gaskets, and small plastic or metal panels to prevent shifting and rattles
• Seals minor seams and gaps to improve fit and finish
• Helps reattach insulation or padding that has come unglued
• Reduces noise from vibrating parts by securing components

• Clean and dry surfaces thoroughly before applying for the best bond
• Use in a well-ventilated area and avoid skin or eye contact; follow product safety directions
• Apply sparingly and allow full cure time per manufacturer instructions before reassembling
