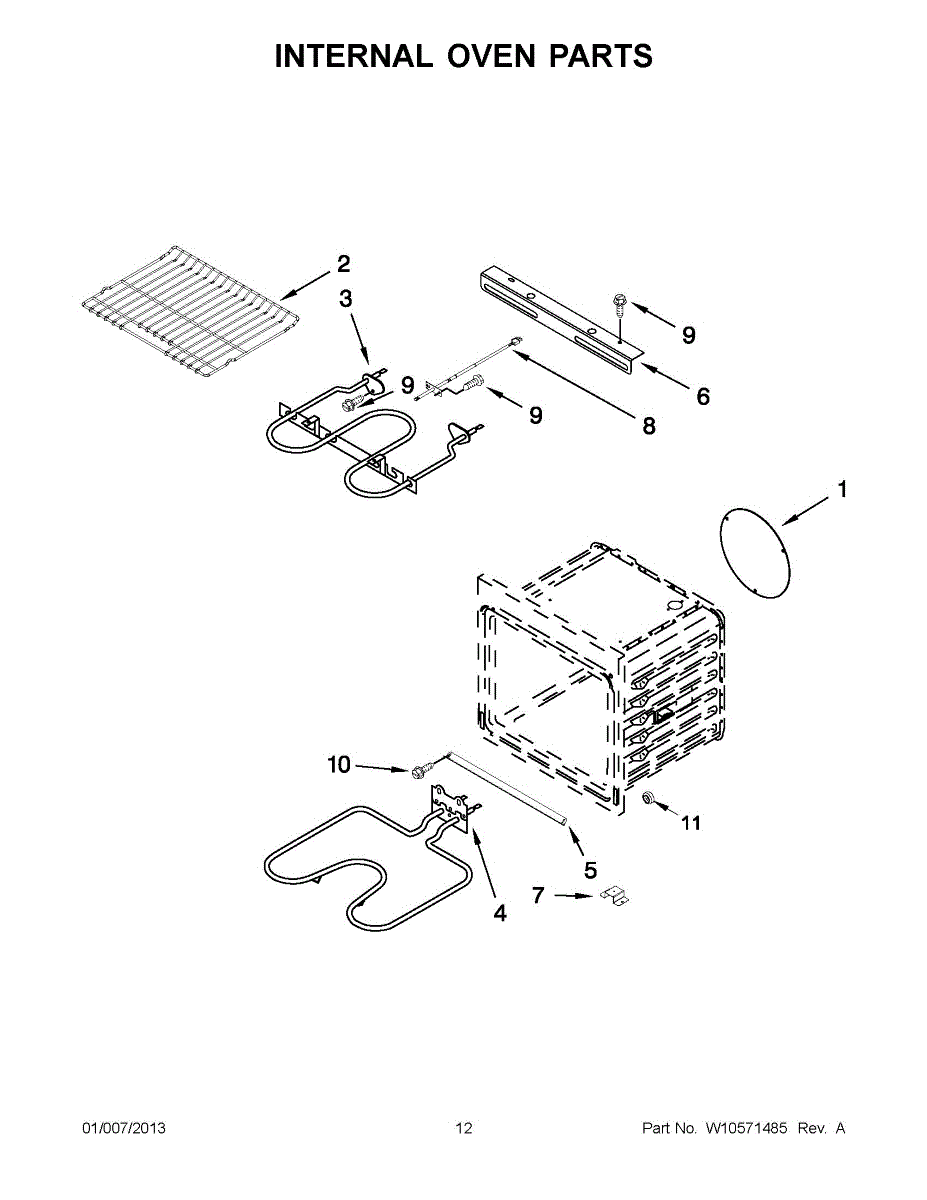

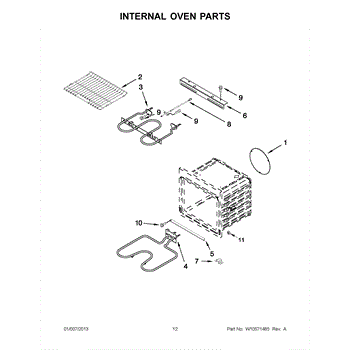

Parts for Jenn-Air JJW2527WS01: 06 - Internal Oven Parts

This oven rack is a direct-fit replacement wire shelf that restores support and cooking surface inside your oven so pans, baking sheets and cookware sit level and slide in and out smoothly. What it does

• Provides a sturdy, level surface for cookware and bakeware inside the oven
• Replaces bent, warped or missing racks that cause uneven cooking or tipping pans
• Slides onto oven rack supports to allow easy access when loading and unloading
• Made of heat-resistant, plated steel for daily oven use

• One oven rack (wire shelf)

• Install with the oven completely cool; no special tools required
• Slide the rack into the oven's existing side supports until fully seated
• Verify correct orientation so the rack sits level and slides smoothly
• Handle carefully; edges may be sharp and rack will be hot after use

Restore proper top heat to your oven with this broil element. It delivers the intense, even radiant heat needed for broiling, so foods brown and sear correctly when the original element fails or is damaged.

• Supplies high, direct heat from the top of the oven during Broil
• Common fix for no-broil or weak broiling performance
• Replace if the element is blistered, cracked, warped, or shows arcing
• Help resolve uneven browning or a tripped breaker caused by a shorted element

• Disconnect power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws and gently pull it forward
• Support and disconnect the wires; attach them to the new element and position it
• Secure the element, ensure connections are tight and clear of metal, then restore power and test

The bake element is the lower heating element inside an electric oven cavity. Replacing a failed element restores consistent baking performance, proper preheat times, and reliable temperature control.

• Provides the primary bottom-oven heat source used in Bake mode
• Common failure symptoms: no heat during bake or very slow preheating
• Oven may not reach set temperature or cook evenly
• Visible damage may include blistering, cracks, or breaks in the element sheath

• Disconnect power at the breaker before servicing and allow the oven to cool completely
• Remove oven racks for access; take a photo of wiring to aid reassembly
• Remove mounting screws, gently pull the element forward, and transfer wires one at a time to the new element
• Ensure the element sits level and clear of cavity walls; do not overtighten screws; restore power and test Bake
