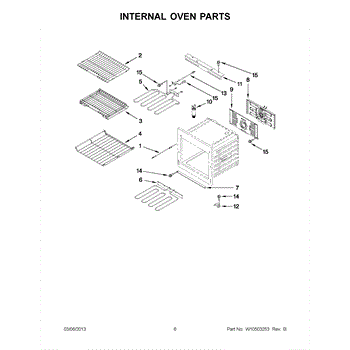

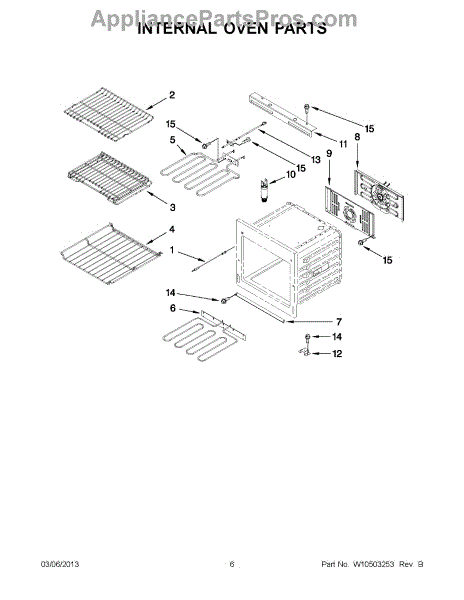

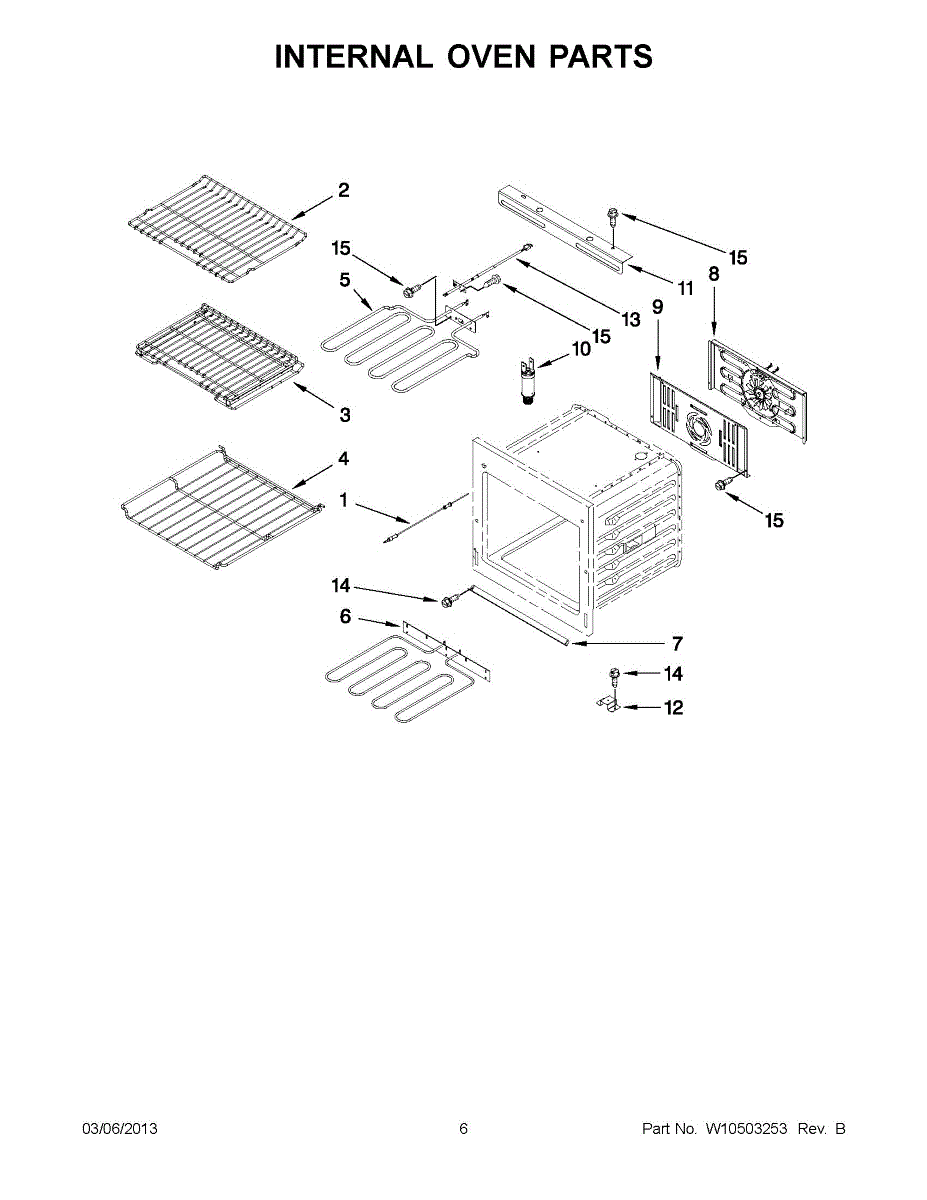

Parts for Jenn-Air JMW2427WS02: 03 - Internal Oven Parts

Color: dark brown. Its total length is about 21 inches.

This oven rack is a direct-fit replacement wire shelf that restores support and cooking surface inside your oven so pans, baking sheets and cookware sit level and slide in and out smoothly. What it does

• Provides a sturdy, level surface for cookware and bakeware inside the oven
• Replaces bent, warped or missing racks that cause uneven cooking or tipping pans
• Slides onto oven rack supports to allow easy access when loading and unloading
• Made of heat-resistant, plated steel for daily oven use

• One oven rack (wire shelf)

• Install with the oven completely cool; no special tools required
• Slide the rack into the oven's existing side supports until fully seated
• Verify correct orientation so the rack sits level and slides smoothly
• Handle carefully; edges may be sharp and rack will be hot after use

This oven rack is a direct-fit wire shelf that restores safe, stable cooking and usable oven space. It replaces worn, bent or missing racks so pans and bakeware sit level for even heating. What it does:

• Provides a stable shelf for cookware and bakeware inside the oven
• Restores proper airflow and spacing when original rack is bent or missing
• Slides into existing rack supports for adjustable cooking positions
• Helps prevent cookware from tipping or sliding during use

• Allow the oven to cool and disconnect power before handling
• Slide the rack into the desired set of oven support rails until fully seated
• Wear gloves to avoid sharp edges while installing or removing the rack
• No tools required for installation in most ovens; confirm correct orientation before use

Restore proper top heat to your oven with this broil element. It delivers the intense, even radiant heat needed for broiling, so foods brown and sear correctly when the original element fails or is damaged.

• Supplies high, direct heat from the top of the oven during Broil
• Common fix for no-broil or weak broiling performance
• Replace if the element is blistered, cracked, warped, or shows arcing
• Help resolve uneven browning or a tripped breaker caused by a shorted element

• Disconnect power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws and gently pull it forward
• Support and disconnect the wires; attach them to the new element and position it
• Secure the element, ensure connections are tight and clear of metal, then restore power and test

The bake element is the lower heating element inside an electric oven cavity. Replacing a failed element restores consistent baking performance, proper preheat times, and reliable temperature control.

• Provides the primary bottom-oven heat source used in Bake mode
• Common failure symptoms: no heat during bake or very slow preheating
• Oven may not reach set temperature or cook evenly
• Visible damage may include blistering, cracks, or breaks in the element sheath

• Disconnect power at the breaker before servicing and allow the oven to cool completely
• Remove oven racks for access; take a photo of wiring to aid reassembly
• Remove mounting screws, gently pull the element forward, and transfer wires one at a time to the new element
• Ensure the element sits level and clear of cavity walls; do not overtighten screws; restore power and test Bake

This meat probe is the oven temperature sensor that monitors internal food temperature to help you cook meat to the desired doneness. It delivers accurate readings to the oven control so timed and probe-based cooking cycles work properly. What it does:

• Senses internal food temperature and sends that reading to the oven control board
• Enables probe-based cooking and automatic shutoff when target temperature is reached
• Helps correct symptoms like probe-based cook cycles not ending or inconsistent doneness
• Replaces a damaged or intermittently-reading probe that prevents reliable temperature detection

• One meat probe/temperature sensor

• Disconnect power to the appliance before accessing the oven interior or wiring
• Allow the oven to cool fully and handle the probe and connector carefully to avoid wire strain
• Inspect the probe connector and socket for corrosion or damage before installing
