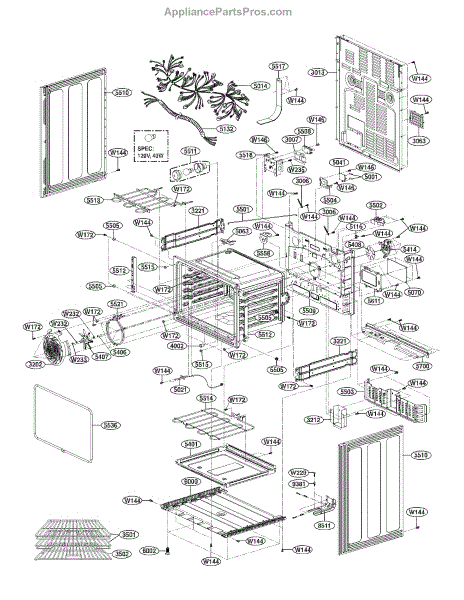

Parts for Lg LDE3017SB: Lower Cavity Parts

This factory-specified fastener secures designated panels and components, restoring a precise fit and helping keep your appliance solid and quiet. Replace a missing, stripped, or rusted original with the correct OEM match for the specified locations.

• Secures brackets, panels, and internal parts where this part number is called out
• Replaces damaged, stripped, corroded, or lost screws
• Helps reduce looseness and vibration that can cause rattling noises
• Exact OEM replacement for positions requiring this specific screw

• Disconnect power and shut off water/gas before servicing
• Match to the removed screw and install only in the locations specified for this part number
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening, especially into plastic
• If multiple screws are involved, start all fasteners before final tightening to ensure alignment

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

The Oven Rack is an OEM part for LG ranges. This part provides a stable surface for placing cookware during baking, roasting, and broiling.

Causes of a bad oven rack can include exposure to high temperatures over time, which can weaken the metal, or accidental damage that causes bending or warping.

Symptoms of a bad oven rack include:

• Warping or bending of the rack
• Difficulty sliding the rack in and out of the oven
• The rack not sitting level within the oven

This OEM LG part is also compatible with some Kenmore models.

The Oven Rack is an OEM part for LG ranges. This part provides a stable surface for placing cookware during baking, roasting, and broiling.

Causes of a bad oven rack can include exposure to high temperatures over time, which can weaken the metal, or accidental damage that causes bending or warping.

Symptoms of a bad oven rack include:

• Warping or bending of the rack
• Difficulty sliding the rack in and out of the oven
• The rack not sitting level within the oven

This OEM LG part is also compatible with some Kenmore models.

The Time Delay Fuse is an OEM part for LG microwaves. This fuse provides a safety mechanism by delaying the flow of electricity, protecting the microwave's electrical components from power surges and ensuring the appliance operates safely. It helps to prevent immediate damage in the event of a power surge or electrical fault, thus prolonging the lifespan of the microwave.

Over time, the time delay fuse can become damaged due to electrical surges, wear and tear, or faulty connections. If the fuse blows, it can disrupt the microwave’s ability to function correctly.

Symptoms of a bad time delay fuse include:

• The microwave not turning on
• No response from the microwave control panel
• The microwave stopping unexpectedly during operation
• Electrical issues or blown circuits in the microwave

This OEM LG part is also compatible with Sears/Kenmore models.

This power control board manages and distributes electricity to your appliance's electronics and major loads. Replacing a failed board can restore power, revive an unresponsive display, and stabilize intermittent shutoffs.

• Regulates and distributes incoming AC power to the appliance's control circuits and loads
• Provides stable low-voltage power to the user interface and sensors
• Routes line power through onboard relays to operate components as commanded
• Common symptoms include no power, dead/unlit display, non-responsive controls, or intermittent power loss

• Disconnect power before servicing; this board carries line voltage
• Use ESD protection and handle the PCB by its edges to avoid damage
• Photograph/label all connectors and transfer them one at a time to the new board
• Ensure all plugs are fully seated and the board is secured before restoring power

This replacement ring secures or positions a nearby appliance component to restore proper alignment and stable operation. It's a small but important part that helps reduce excess movement and related wear. What it does:

• Holds or locates a mating component to prevent unwanted movement or misalignment
• Helps reduce vibration and knocking noises caused by loose parts
• Restores correct spacing that maintains smooth mechanical operation
• Can prevent accelerated wear on adjacent parts when functioning properly

• Disconnect power (and water supply if applicable) before beginning any repair
• Access location may require removing panels or trim; keep fasteners organized
• Inspect surrounding parts for wear or damage and replace if needed

Replacement fan motor assembly that restores airflow and ventilation inside the appliance. Swapping a worn or failed fan reduces noise and helps maintain proper temperature and component cooling by restoring consistent air movement. What it does:

• Circulates air to maintain proper internal airflow and ventilation.
• Reduces or eliminates abnormal noises such as grinding, rattling, or squealing from a failing fan.
• Helps prevent component overheating by moving air across electronics or cooling surfaces.
• Can resolve symptoms like weak or no airflow and inconsistent cooling/venting performance.

• Disconnect power (unplug or shut off breaker) before accessing the appliance.
• Installation typically requires removing access panels; keep track of screws and mounting hardware.
• Handle electrical connectors carefully and reconnect wires to the original terminals; inspect harnesses for damage.
• After installation, restore power and verify the fan runs smoothly and quietly before reassembling all panels.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


This blower motor housing mounts and aligns the microwave's cooling/vent fan motor and wheel to keep airflow moving through the oven and vent path. Replacing a damaged housing can restore proper airflow and reduce vibration and noise. What it does:

• Holds the blower motor and fan wheel in the correct position
• Directs cooling and exhaust air across components and out the vent path
• Maintains alignment to prevent fan wheel rubbing and vibration
• Typical symptoms: loud rattling/scraping near the vent area, weak venting, unit running hot or shutting off during use, visible cracks/warping of the housing

• 1 motor housing

• Disconnect power; for over-the-range units, remove the microwave from the wall to access the blower compartment
• Discharge the high-voltage capacitor before servicing internal components
• Transfer the blower motor and fan wheel to the new housing; match the original vent orientation
• Use care around sharp metal edges; retain and reuse the original mounting hardware

This door gasket seals the refrigerator compartment to keep cold air in and reduce condensation. It replaces a worn or damaged seal to help maintain proper temperature and efficiency. What it does:

• Creates an airtight seal around the refrigerator door to minimize cold air loss
• Helps prevent frost buildup and moisture around the door opening
• Can reduce compressor run time by restoring a proper seal
• Common symptoms: visible gaps, torn or hardened gasket, persistent warm spots or excess frost

• Follow the appliance manufacturer's instructions and disconnect power before servicing
• Inspect mounting channel and clean surfaces before installing the new gasket
• Some gaskets require warming or stretching to seat correctly; replace carefully to avoid pinching

This idler bracket mounts the idler pulley or roller in your appliance's tensioning system, keeping a belt or cable aligned and properly tensioned for consistent operation. A bent or worn bracket can cause noise, slippage, or loss of motion.

• Secures the idler pulley/roller in the correct position
• Maintains proper belt/cable tension and alignment
• Helps reduce squealing or squeaking from friction/misalignment
• Can address belts/cables coming off or intermittent movement in the drive mechanism

• Disconnect power; also shut off gas or water before servicing
• Access the tensioner area and note the belt/cable routing and spring orientation
• Relieve tension, remove the old bracket, and transfer the pulley/roller and any spring or hardware as required
• Reinstall the bracket, ensure smooth free movement, route belt/cable correctly, and test operation

This door handle mounting anchor creates the fixed attachment point on the appliance door or drawer. Replacing a worn or missing anchor restores a solid, wobble-free handle and a consistent feel when opening and closing.

• Provides the secure mounting point that the handle fastens to
• Helps keep the handle aligned and rigid during use
• Replace if the anchor is cracked, stripped, or missing
• Resolve a loose/wobbly handle, a handle that won't tighten, or misalignment after service

• Disconnect power; turn off the water supply
• Protect the door/drawer finish and support the handle during removal
• Remove the handle per your model's instructions and take out the damaged anchor
• Install the new anchor using the existing mounting location/hardware, seat the handle fully, then tighten set screws evenly without overtightening
