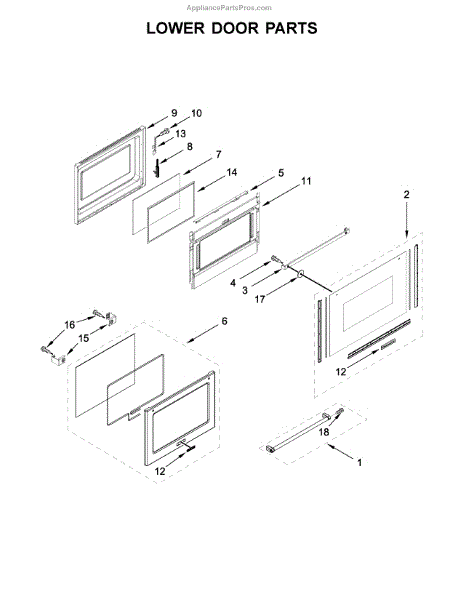

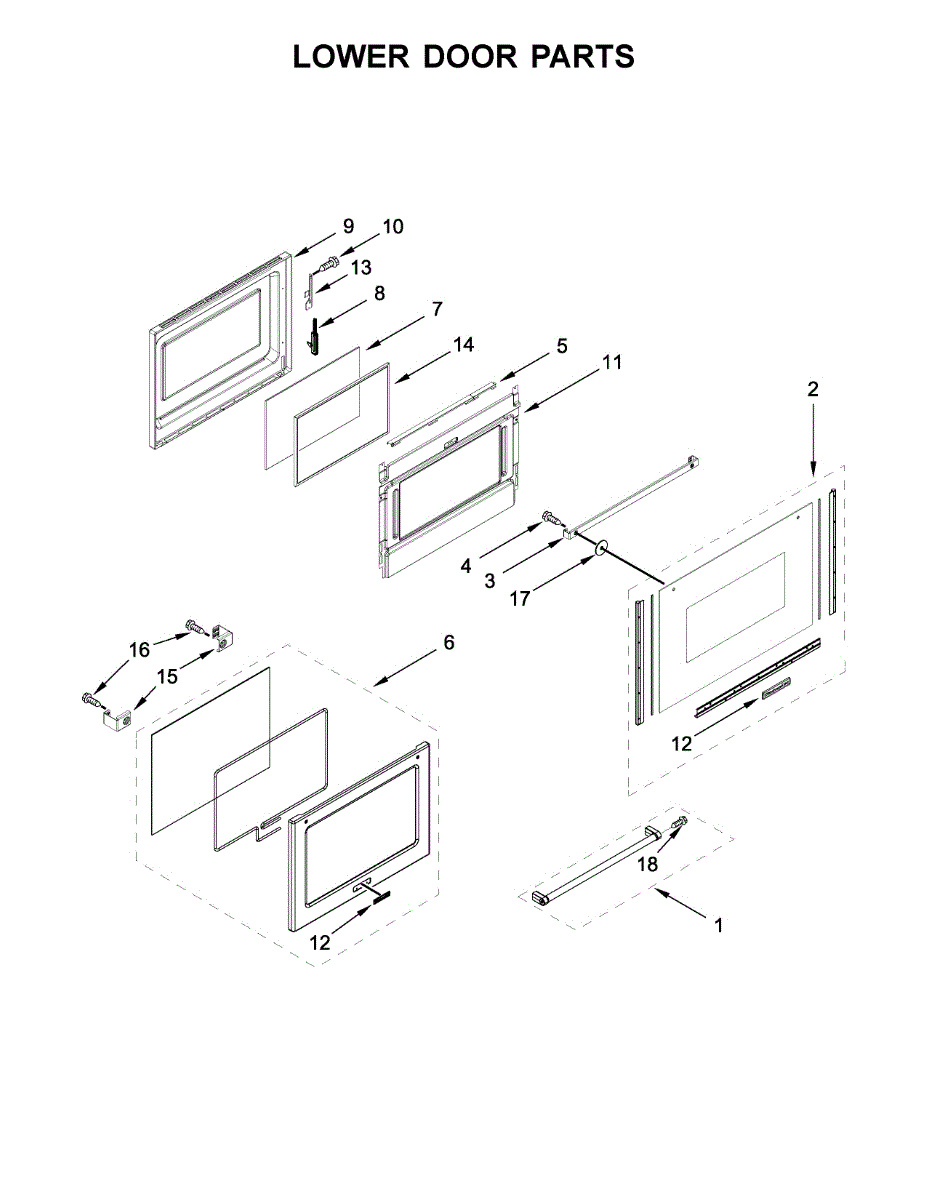

Parts for Kitchenaid KFED500ESS03: Lower Door Parts

The Screw is an OEM part for Whirlpool microwaves. It is a small yet vital component that joins together other parts of the microwave to create a cohesive machine. The screw is responsible for tightly securing internal components like the magnetron tube, control panel, and outer case during operation.

Symptoms of a bad screw include:

• Loose or detached internal microwave components
• External parts like the door or casing that will not stay aligned or attached
• Overheating or arcing due to poor grounding from loose screws
• Component malfunctions if mounting positions are compromised

Causes of a bad screw can include wear and tear that causes stripping or loosening over time, or damage from handling that results in breaking or bending.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This inner oven door glass mounts on the inside of the door to help seal in heat while letting you view cooking progress. Replace damaged glass to restore safe viewing, proper insulation, and consistent oven performance.

• Forms the inner pane of the oven door window and acts as a thermal barrier
• Helps the oven reach and maintain set temperature by limiting heat loss through the door
• Provides visibility into the oven cavity during cooking
• Replace if the glass is cracked, shattered, missing, or heat is escaping from the door

• Disconnect power and allow the oven to cool completely; if applicable, shut off gas
• Remove the door and place it on a protected, flat surface before disassembly
• Wear cut-resistant gloves and eye protection; handle glass carefully and support the edges
• Reuse existing brackets, seals, and screws; note orientation during reassembly

This right-side oven door hinge secures and supports the oven door, restoring proper alignment and smooth opening/closing. A direct-fit hinge helps stop door sag, reduce gaps, and maintain a safe seal for efficient oven operation. What it does

• Supports the oven door weight and maintains correct door alignment
• Guides smooth opening and closing to prevent sticking or uneven movement
• Helps restore a tight door seal to reduce heat loss and uneven cooking
• Addresses symptoms like a drooping door, uneven gaps, or a door that won't stay open

• Disconnect power to the oven before beginning any repair to avoid electrical or heat hazards.
• Support the oven door while removing and installing the hinge to prevent dropping or damage.
• Use basic hand tools; follow OEM instructions for hinge orientation and fastener torque.

This left-side oven door hinge secures and supports the oven door, restoring smooth opening, closing and proper alignment. Designed to replace a worn or damaged hinge and help eliminate door sag, rubbing and improper sealing. What it does:

• Supports the oven door at the left hinge point so the door opens and closes smoothly
• Restores correct door alignment to prevent rubbing, gaps, or uneven sealing
• Eliminates sagging or a door that won't stay open or won't latch properly
• Works with the oven's door assembly to maintain safe operation

• Disconnect power to the range before starting and ensure the oven is cool
• Support or remove the oven door per the service manual before removing/installing the hinge
• Keep fasteners and mounting hardware together; torque to OEM specs if available

Size: 8-18 x 3/8 inch.

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations
