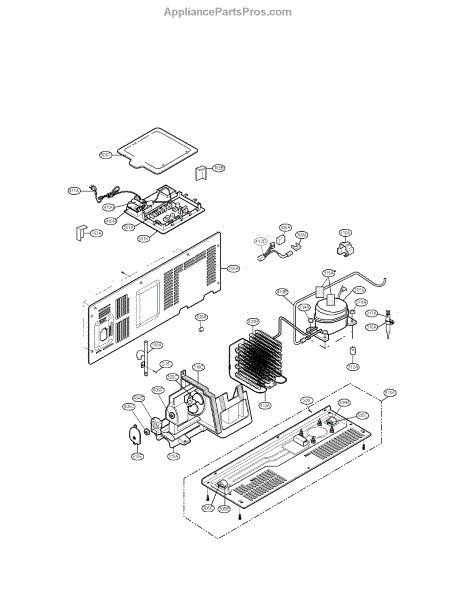

Parts for Lg LRSC26925TT/00: Machine Compartment Parts

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

The Drain Tube Assembly is an OEM part for LG refrigerators. This drain tube assembly is responsible for directing condensation and melt water that accumulates in the refrigerator away to the evaporator pan.

Causes can include cracks developing from limescale or mineral accumulation, flexing fatigue from repeatedly catching drips, or damage from improper cleaning methods.

Symptoms of a bad drain tube assembly include:

• Puddles or leaks developing underneath the refrigerator
• Poor air flow from vents and higher temperatures
• Ice or moisture buildup in refrigerator walls and seals
• Water stains or corrosion appearing inside the unit

This OEM LG part is also compatible with some Kenmore models.

THERMISTOR ASSEMBLY,PTC

The Compressor Overload Protector is an OEM replacement part for LG refrigerators. It plays an important safety role in protecting the compressor from damage due to excessive heat. Located near the compressor unit, the overload protector functions to shut off power to the compressor if temperatures become too high during operation.

Causes can include normal wear over time rendering it less responsive to temperature changes. Mineral or refrigerant deposits may also impede its ability to detect overheating conditions accurately.

Symptoms of a faulty overload protector include:

• Refrigerator fails to properly cool or the compressor does not run
• Circuit board or electrical component failure or burnout
• Lack of cold air production and higher than normal freezer/fridge temperatures

This OEM LG part is also compatible with some Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This fan guide directs airflow from the evaporator fan to improve cold-air circulation in the fresh food/freezer compartment. It restores proper air routing for more even cooling and reduces direct fan contact with other components. What it does:

• Channels cold air from the evaporator fan into the cabinet for consistent temperature distribution
• Keeps the fan blade aligned and prevents rubbing or contact with other parts
• Helps reduce noise caused by misdirected airflow or loose fan components
• Commonly replaced when cracked, broken, or warped from impact or age

• Disconnect power before servicing the appliance to avoid electrical shock
• Replacement typically requires removing the evaporator cover or inner liner to access the fan area
• Inspect surrounding mounts and fasteners; replace any damaged clips to ensure secure fit
• Handle plastic guide carefully to avoid cracking during installation

This replacement fan assembly restores airflow in your appliance's cooling system to help maintain proper temperature and circulation. It's a direct-fit replacement designed to stop airflow-related issues and reduce noise from a failing fan. What it does:

• Circulates air across evaporator/condenser coils to support proper cooling and defrost cycles
• Replaces a worn or failed fan that can cause warm compartments or poor cooling
• Helps eliminate unusual humming, grinding, or rattling caused by a damaged fan blade or motor
• Supports even temperature distribution and can reduce frost buildup when fan operation is restored

• Disconnect power before starting; work on powered appliances can cause shock or injury
• Handle the fan blade carefully to avoid bending blades or damaging the motor
• Secure mounting fasteners to prevent vibration

This evaporator fan motor assembly circulates cold air across the evaporator coils and throughout the cabinet to keep temperatures even. Replacing a worn motor restores airflow and helps reduce warm spots and grinding or squealing fan noise. What it does:

• Circulates air across the evaporator and through vents to cool the refrigerator and freezer compartments
• Helps maintain uniform temperatures and consistent airflow throughout the cabinet
• Common failure signs: weak or no airflow, refrigerator section warmer than the freezer, or whining/rattling fan noise
• Fan typically runs only with the door switch closed; lack of operation with the switch closed can indicate a failed motor

• Includes: 1 evaporator fan motor assembly

• Disconnect power before servicing; interior panels and liners can have sharp edges
• Access is typically behind the rear panel of the freezer or fresh food section (varies by model)
• Disconnect the wiring harness, remove the old assembly, and install the new one securely with wiring routed clear of the blade
• Restore power and depress the door switch to verify fan operation and airflow

This motor bracket assembly secures the appliance motor to the cabinet, keeping the motor properly positioned for reliable operation and reducing vibration or rubbing. Replaces a worn or damaged motor mounting bracket to restore stability. What it does:

• Holds the motor in place to maintain proper belt alignment and drivetrain geometry
• Prevents motor movement that can cause loud noise, grinding, or rubbing
• Reduces excessive vibration that can transfer to the cabinet or other components
• Helps maintain safe, consistent motor operation during spin or drive cycles

• Disconnect power (and gas if applicable) before starting any repair
• Support the motor before removing mounting hardware to avoid strain on wires or components
• Tighten all fasteners to OEM torque specs; replace any damaged brackets or fasteners
• Test operation after installation and re-check for proper alignment and noise

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections

This main control board manages the appliance's power distribution and electronic controls so the unit runs its cycles and responds to user inputs. Replacing a failed board restores normal control and electrical operation. What it does

• Regulates power to motors, valves, sensors and user interface components.
• Processes user commands and cycle selection from the control panel.
• Communicates status and error signals to displays and other modules.
• Common symptoms of failure: no power or blank display, unresponsive controls, intermittent operation, or error codes related to control electronics.

• One main control board (power control board assembly) as shown.

• Disconnect all power before starting work to avoid shock or damage.
• Handle the board by the edges and avoid touching components; use ESD precautions if available.
• Verify the part number on the replacement board matches the original before installation.
