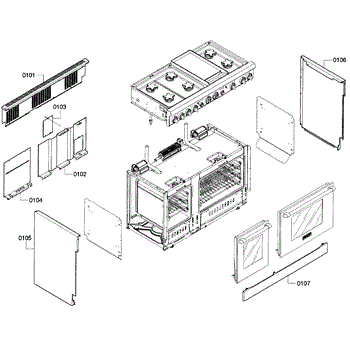

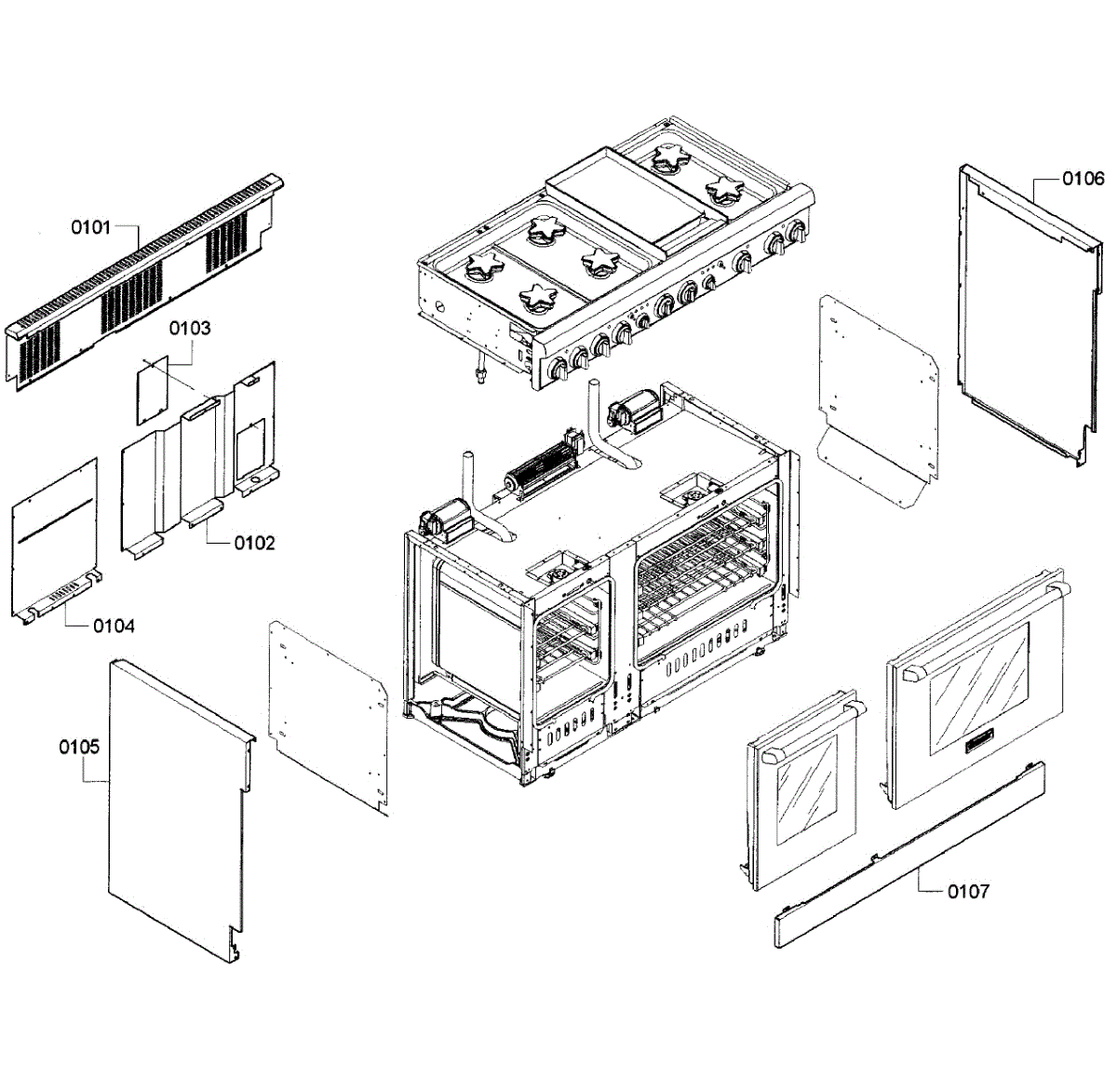

Parts for Thermador PRD486GDHC/01: Main Assy Parts

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

• Provides the multi-conductor wiring path that links control boards, sensors, and motors
• Carries low-voltage signals and/or line power needed for normal appliance functions
• Commonly replaced when wires or connectors are damaged, burned, or corroded
• Can resolve symptoms such as intermittent operation, no power to components, or control errors

• Disconnect all power before accessing wiring or controls to avoid shock
• Route harness along original clips and channels to prevent pinching or chafing
• Inspect connectors for damage and replace if terminals are loose or burned

This cable harness connects a dishwasher's electrical components to the control board, restoring reliable signal and power routing for proper operation. Designed as a direct-fit replacement to replace damaged or worn wiring. What it does:

• Routes power and control signals between the control board and components such as pumps, valves, or sensors
• Restores intermittent or failed electrical connections caused by frayed wires or broken terminals
• Helps stop issues like controls not responding, lights not working, or certain cycles not starting when the harness is faulty
• Maintains factory routing and connector fit for correct plug-in installation

• One replacement cable harness as shown

• Disconnect power and water before beginning any repair
• Verify connectors match and route wiring according to original harness path; secure with clips or ties as needed
• Handle connectors carefully to avoid bending pins; replace if terminals are corroded or damaged

This ignition cable connects the stove's spark electrode to the ignition system so burners ignite reliably. It replaces a damaged or degraded lead to restore spark delivery and consistent lighting. What it does:

• Transfers ignition voltage from the module to the burner electrode so sparks form at the burner
• Helps stop intermittent or no-spark symptoms when the wire is cracked or corroded
• Prevents arcing caused by insulation damage or improper routing
• Restores normal ignition behavior when the original cable is worn or burned

• One ignition cable

• Disconnect power and turn off gas supply before starting any service
• Inspect routing and connectors; replace only if the wire or insulation is damaged
• Keep the cable away from high-heat areas and sharp edges to prevent future damage
