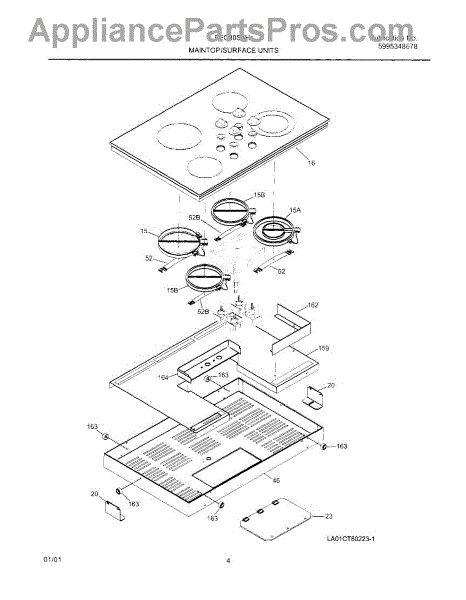

Parts for Frigidaire FEC30S6HSB: 05 - Maintop Parts

This replacement part is a heating element that has been manufactured by Frigidaire and is compatible with many different cooktops. The heating element is responsible for heating up as an electrical current passes through it which allows the cooking of food on the stovetop. This is a vital part for the proper functioning of the appliance. All heating elements are subject to wear and tear and given enough use, will eventually fail and need to be replaced. Before installation ensure the stove is unplugged. Supplies needed for this job include a multi-screwdriver, screws and a pair of work gloves.This is an authentic OEM replacement part which is constructed from high quality, non-corrosive, and durable materials and is compatible with brands including Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

Size: 8 inch. 2200 watt. Radiant.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Used on the 1200 watt element

Used on the 2200 watt element

This replacement switch restores reliable on/off control of a specific function in your cooking appliance. When the original switch wears out, components may fail to power on, stay on, or work only intermittently. What it does:

• Opens and closes an electrical circuit to control a targeted component
• Used in select models to switch features such as a light, fan, or heating element
• Symptoms of a failed switch include no response, intermittent operation, or a component that won't turn off
• Visible heat damage, arcing, or loose terminals at the switch may also indicate failure

• 1 switch

• Disconnect power at the breaker or unplug the appliance before servicing; verify no voltage is present
• Note wire locations or take a photo; transfer wires to the new switch one at a time
• Reuse existing mounting hardware or brackets as applicable
• Restore power and test the controlled function before final reassembly

Specs: 8 x 0.750

Specs: 10-32 X 0.375
