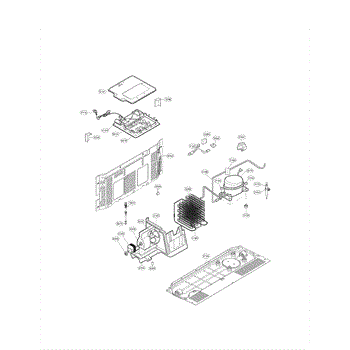

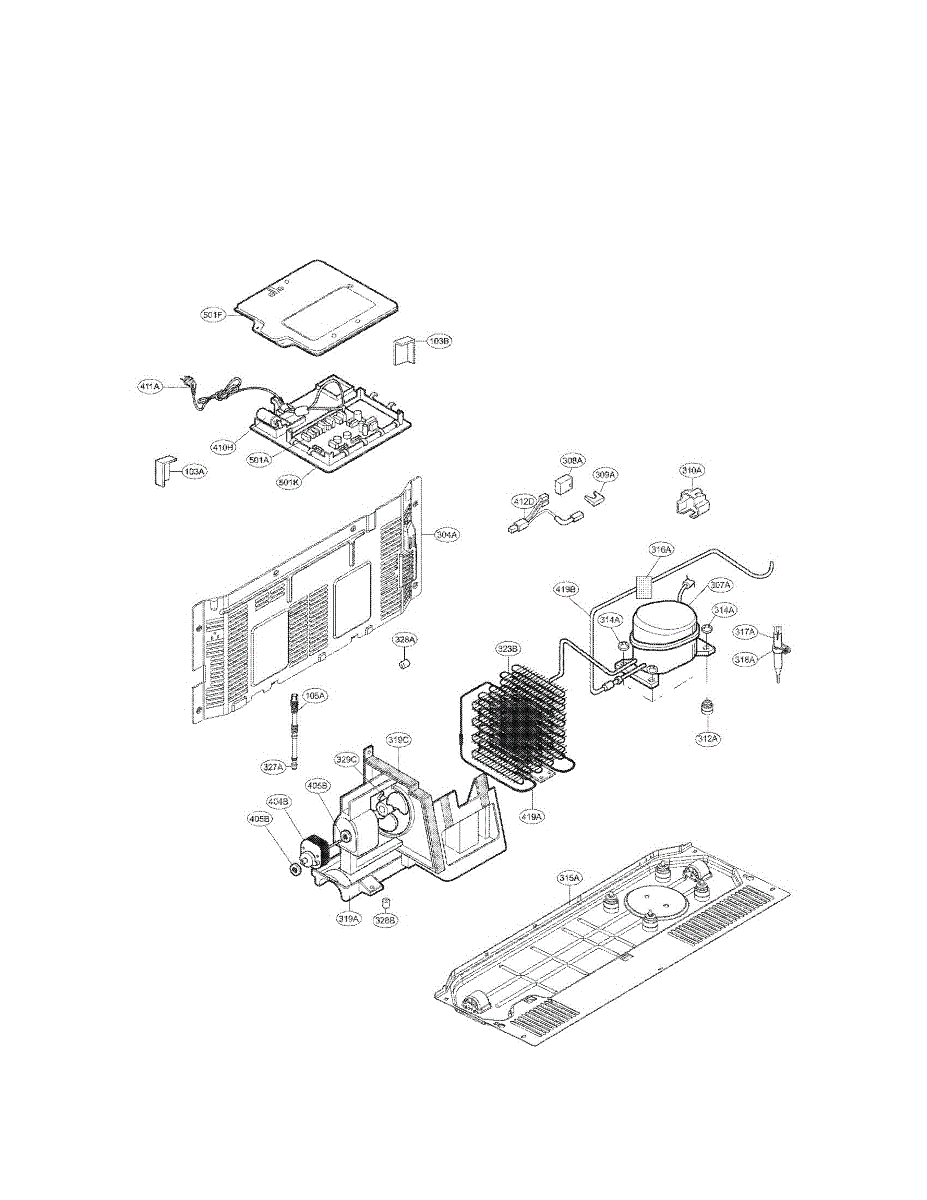

Parts for Lg LSC23924ST/00: Mechanical Compartment Parts

This PTC thermistor assembly feeds temperature feedback to the control so the appliance can monitor conditions and run sensor-based cycles correctly. Replacing a failed sensor restores reliable automatic operation and prevents errors that lead to inconsistent results.

• Detects temperature changes and sends a resistance signal to the main control for sensor/auto functions
• Helps regulate time and power during sensor-driven cycles for consistent performance
• Failure symptoms can include "sensor" errors, cycles ending too soon or running too long, or inconsistent results
• In some models, a bad sensor may prevent sensor modes from starting

• Disconnect power before servicing; microwaves can retain dangerous high voltage—discharge the capacitor before touching internal components
• Access and mounting location vary by model; commonly found behind the grille or near the control in the air duct path
• Route the harness exactly as original; keep wiring away from sharp edges and hot areas
• Avoid touching the sensing tip; ensure all connectors are fully seated

This motor overload protector helps prevent motor overheating by cutting power if the motor draws excessive current or gets too hot. It restores normal operation once the motor cools, helping protect the main motor from heat-related damage. What it does:

• Senses excessive motor current/heat and interrupts power to stop the motor from overheating
• Can prevent burning or further damage when a motor is overloaded or stuck
• Common symptom: washer motor hums but won't start or spins intermittently
• Works as a protective component in the washer's motor circuit

• One overload (motor protector) as shown

• Disconnect power before accessing or replacing the overload
• Access the motor area from the rear or bottom panel per your model's service instructions
• Handle terminals carefully and reconnect wires to the correct terminals
• If symptoms persist after replacement, test the motor and related components.

This relay cover is a protective housing that shields a washer or dryer relay assembly from dust, moisture, and accidental contact, helping maintain safe and reliable operation of the appliance's control components. What it does:

• Protects the relay and nearby wiring from debris and moisture that can cause shorts or corrosion
• Helps prevent accidental contact with relay terminals during maintenance
• Reduces risk of electrical arcing or damage when relays switch under load
• Can improve long-term reliability of the control assembly when installed and intact

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove access panels as needed to reach the relay area; basic hand tools typically required
• Handle control board and components carefully to avoid damage from electrostatic discharge
• Replace only with the specified cover; do not modify or force-fit

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This fan guide directs airflow from the evaporator/blower fan to the cabinet vents to help maintain even cooling and efficient air circulation. Replacing a damaged guide restores proper airflow and helps the cooling system perform as designed. What it does:

• Channels fan airflow to the vent path so cool air reaches refrigerator/freezer compartments
• Prevents air from recirculating inefficiently around the fan housing
• Helps reduce uneven temperatures and cold spots in the cabinet
• Can reduce frost buildup caused by disrupted airflow

• Disconnect power before servicing; follow appliance-specific disassembly steps
• Typically accessed by removing the rear evaporator or fan housing panel — use hand tools and avoid prying plastic parts aggressively
• Inspect mounting tabs and surrounding seals; replace if cracked or broken

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections
