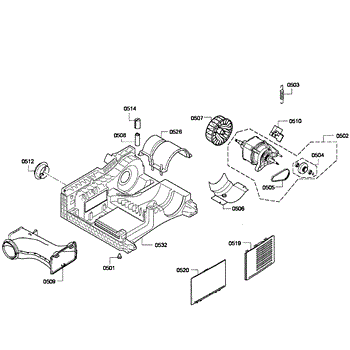

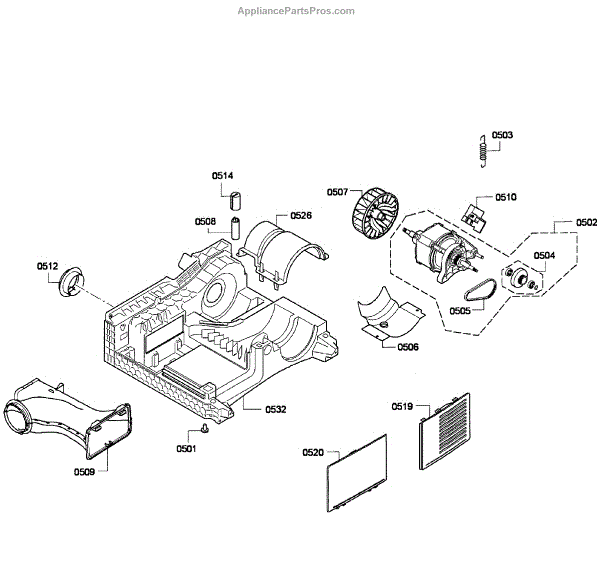

Parts for Bosch WTV76100US/08: Motor Assembly Parts

The Foot is an OEM component specifically designed for select Bosch dryers. It securely elevates the appliance above the floor for ventilation purposes. Rigid plastic construction supports weight distribution evenly during cycles.

Causes of a bad foot can involve normal wear from long-term appliance positioning. Exposure to moisture or impacts posing cracking and weakening risks over time necessitate replacement.

Causes of a bad foot include:

• Dryer is unstable and rocks or sways more than usual
• Scratches or damage to flooring surfaces it contacts
• Uneven drying performance from improper elevation

Symptoms of a bad foot include collapsed or unstable base structure inhibiting dependable operation. Timely replacement ensures correct height positioning.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dryers. Replace to properly elevate your unit and maximize airflow circulation.


This part is a dryer motor assembly. It is located on the back of the appliance. The part is responsible for turning the dryer blower and drum. Make sure the dryer is free of lint and regularly clean the dryer vents to keep the motor assembly in good shape. If the motor assembly is damaged or malfunctioning, it may cause the dryer to hum. The dryer may also have difficulty spinning.If the motor assembly has gone bad, it should be replaced. Unplug the dryer and consider work gloves to protect the hands. Remove the lint screen and housing, the lid, and the wire harness plug. Take off the front panel and unhook it from the hinges. Remove the pulley and belt to reach the drive motor. Take out the clamps and pull the motor assembly out. Place the new one in the same location and reassemble the dryer.Designed for dryers manufactured by Bosch, this motor assembly is sold individually. It is a genuine OEM replacement part that has been directly obtained from the manufacturer.

The Tension Roller is an OEM part for Bosch dryers. This part maintains the correct tension on the drive belt to ensure smooth and efficient operation. The tension roller ensures that the belt is tightly secured around the drum, allowing it to rotate smoothly and evenly during cycles.

The need for replacement can stem from normal wear and tear over time, as the roller can become worn or damaged, affecting its ability to maintain proper tension on the belt.

Symptoms of a failing Tension Roller include:

• Unusual noises, such as squeaking or grinding, coming from the dryer when it is running.
• The dryer drum not spinning correctly or at all, which can occur if the tension roller is not providing the necessary support and tension for the belt.
• Excessive vibration during operation, suggesting that the drive belt is not tensioned properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drive Belt is an OEM part for Bosch dryers. It works to transfer power from the dryer motor to the drum, helping rotate and tumble clothes during the drying cycle.

Causes of a bad drive belt usually come down to regular use over several years. Infrequent belt replacement intervals can lead to premature failure.

Symptoms of a bad drive belt can include:

• The dryer not starting or not completing full cycles
• Loud squealing or slipping noises coming from the dryer
• Visible cracking, fraying, or looseness of the belt

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement fan drum directs airflow inside the dryer to help move heated air through the drum and vent system, restoring proper ventilation and reducing rubbing or noise caused by a damaged housing. What it does

• Channels air from the blower into and through the dryer drum for effective airflow
• Helps maintain consistent drying performance when the housing is intact
• Stops rubbing, scraping, or vibration caused by a cracked or warped fan drum
• Works with the blower assembly and drum to prevent airflow restrictions that can cause longer dry times

• One fan drum housing

• Disconnect power (and turn off gas supply for gas models) before servicing
• Handle sharp edges carefully; wear gloves
• Replacement may require removing the dryer top/front panel and drum;

This metal paper capacitor replaces a failed film capacitor in household appliances to help stabilize voltage and support reliable electrical operation. It's used where the control or motor circuit needs clean, steady capacitance for proper function. What it does:

• Smooths and stabilizes voltage to reduce electrical noise and spikes
• Helps motors and control circuits start and run more reliably
• Can reduce intermittent operation, sputtering or weak motor performance
• Prevents control errors caused by unstable supply to electronic components

• Always disconnect the appliance from power before accessing electrical components
• Discharge the capacitor safely before handling to avoid shock
• Inspect mounting and wiring for heat or corrosion; replace connectors if damaged

This access panel cover protects internal components and keeps wiring and mechanisms enclosed for safe, reliable operation. It restores the appliance's exterior finish and helps prevent debris from entering sensitive areas. What it does

• Shields internal parts and wiring from dust, moisture, and accidental contact
• Helps maintain correct airflow and component spacing behind the panel
• Stops rattles and vibration-related noise when properly seated
• Common symptom fix: cracked, loose, or missing cover causing exposed components or unusual noise

• One access panel cover

• Refer to your model's service manual for correct removal and reinstallation steps
• Disconnect power before starting any repair
• Use proper fasteners and align tabs to avoid damaging mounting clips or the cover
• If clips or screws are broken, replace them to ensure a secure fit
