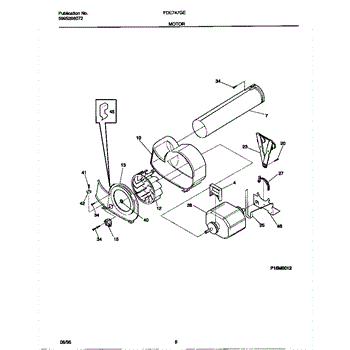

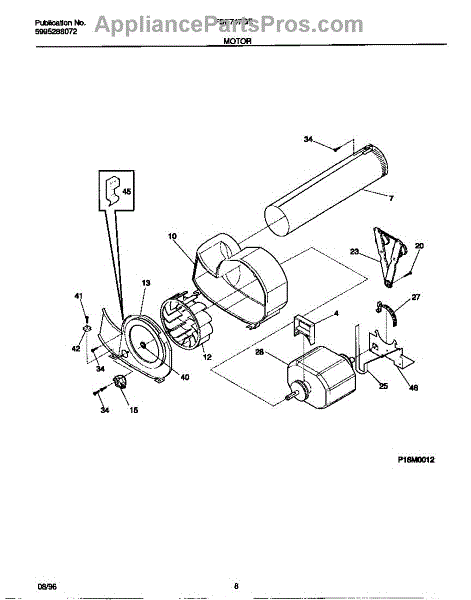

Parts for Frigidaire FDE747GES0: 05 - Motor Parts

This locking clip secures the fan/blower housing in place to keep the airflow path sealed and stable. Replacing a worn or missing lock helps eliminate rattles and air leaks for consistent, quiet operation. What it does:

• Secures the fan/blower housing to its mounting points to prevent movement
• Helps maintain a tight seal for proper airflow through the exhaust path
• May correct rattling, vibration, or scraping noises from the blower area
• A loose or missing lock can allow the housing to shift, causing air leaks and reduced performance

• Fan housing lock

• Disconnect electrical power; if applicable, shut off gas supply before servicing
• Access the blower/fan housing by removing the appropriate access panel(s)
• Note orientation, then release and replace the lock; ensure the housing seats fully and evenly
• Clear lint from the area and verify the blower wheel spins freely before reassembly and testing

Includes blower wheel housing, blower wheel and cover. The three parts are no longer available seperate.

Includes blower wheel housing, blower wheel and cover. The three parts are no longer available seperate.

Includes blower wheel housing, blower wheel and cover. The three parts are no longer available seperate.

This dryer thermostat monitors internal air temperature and opens/closes the heater circuit to keep drying safe and consistent. Replacing a weak or failed thermostat restores proper heat and helps prevent overheating or nuisance shutdowns. What it does:

• Senses exhaust/heater housing temperature and switches the heating circuit based on temperature
• Helps maintain target drying temperatures for consistent performance
• Provides over-temperature protection by opening the circuit if heat rises too high
• Common symptoms include no heat or weak heat, long dry times, heat cutting out mid-cycle, or the dryer running hotter than normal

• 1 thermostat

• Disconnect power before servicing; heating components can be live and hot
• Access location varies by model; typically mounted on the heater or blower housing behind a rear or front panel
• Transfer wires from the old thermostat to the new one one-at-a-time and secure firmly; ensure the mounting surface is clean and flat
• After replacement, check and clear the venting/duct for proper airflow to prevent repeat failures

This hex head screw spacer is a replacement threaded fastener that secures and spaces components while cutting its own thread in softer mating material for a tight fit. It's useful for repairs where the original spacer screw is missing or damaged. What it does:

• Acts as a spacer and fastener to hold panels, brackets, or assemblies at a set distance
• Thread-cutting tip forms secure threads in compatible materials for reliable engagement
• Helps stop movement or vibration of connected parts that can cause noise or wear
• Commonly used where the original hex-head spacer screw is corroded, stripped, or broken

• Use the correct screwdriver or wrench on the hex head to avoid rounding the fastener
• Start threads straight and apply steady pressure; do not force if resistance indicates misalignment
• Use appropriate torque — overtightening can strip the formed threads or damage parts
• Wear eye protection and follow appliance power/disconnect safety before servicing

This drive belt transfers the motor's power to the machine's drive system so the tub or drum can rotate. Replacing a stretched, glazed, or broken belt restores consistent movement and helps eliminate slippage noises and burning-rubber odors.

• Transfers rotation from the motor pulley to the drive/transmission pulley
• Typical symptoms of a worn belt: no spin or weak spin, no agitation, motor runs but tub/drum doesn't move
• Visual signs include cracks, fraying, glazing, or excessive slack

• Disconnect power; turn off water supply before servicing
• Access the belt by removing the appropriate panel; note the belt routing before removal
• Release the tensioner or loosen motor mounts to remove the old belt, then fit the new belt around the pulleys and rotate by hand to seat it
• Confirm proper tracking and clearance before reassembly and test run

A replacement hex washer head screw that secures appliance panels and components. Durable hardware designed to match OEM fit so you can restore proper fastening and reduce rattling or loose parts. What it does:

• Fastens panels, brackets, and assemblies where a 1/4-20 thread is specified
• Provides a built-in washer head to distribute load and resist pull-through
• Commonly used where vibration or movement can loosen standard screws
• Helps stop rattling, misalignment, or loose trim caused by missing or stripped fasteners

• Use the correct screwdriver or socket to avoid stripping the head; tighten until snug, do not over-torque
• Replace any damaged mating hardware or worn threads for a secure fit
