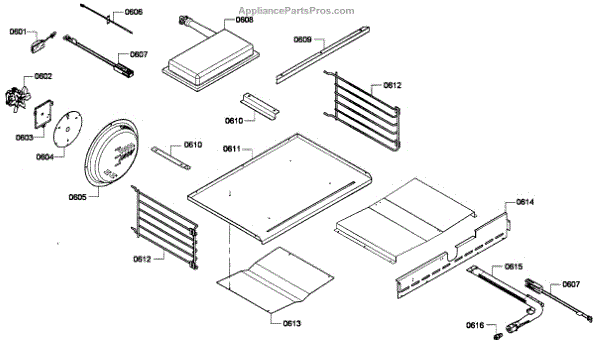

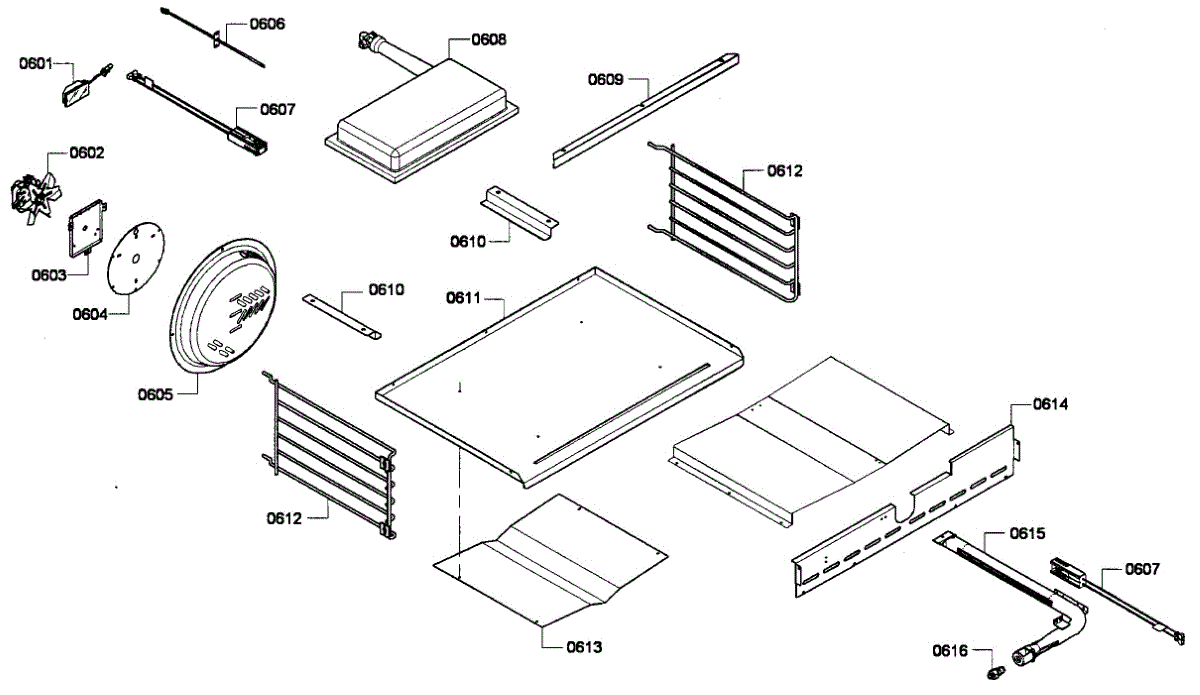

Parts for Thermador PRG366GH/01: Oven Assy Parts

The Lamp is an OEM part for Bosch ovens and ranges. It illuminates the oven cavity, allowing users to easily monitor food placement and cooking progress without disrupting the temperature and climate inside. Proper lighting aids in achieving optimal bake and broil results.

Causes of a bad oven lamp can include burnt out or broken bulbs due to age, high heat exposure, or accidental breakage.

Symptoms of a bad oven lamp include:

• Dim or flickering light from the bulb
• Premature failure of the light source
• Faulty or loose electrical connections
• Physical damage to the lamp housing or lens

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This OEM replacement part is a motor assembly for ovens. The motor assembly is the main motor that powers the oven fan which is responsible for maintaining and adjusting the temperature in an oven. If the oven is no longer heating properly, turning on, or maintaining temperature, then the motor assembly will need to be replaced.To replace this part, make sure that the oven is unplugged. After it has been powered off, proceed to pull the oven out and away from the wall. Once moved, uninstall the back panel of the oven by removing the panel's mounting screws. After detaching the back panel, locate the motor housing on the back of the oven. Unthread the screws that hold the housing in place. Once removed, locate the mounting brackets that hold the motor in place and remove the screws that attach to the motor. Pull the old motor out of its place and install the new motor. Reinstall the back panel and restore power to the appliance.This genuine replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador brand ovens.

This fan cover protects the appliance's blower assembly and directs airflow to maintain proper ventilation. It helps prevent debris from reaching the fan and supports efficient air movement for reliable operation. What it does:

• Shields the blower/fan from dust, lint, and loose debris that can interfere with airflow
• Directs and channels airflow for consistent ventilation and cooling of internal components
• Helps reduce noise by enclosing the fan area and stabilizing the blower assembly
• Commonly replaced when cracked, damaged, or warped after impact or wear

• One fan cover

• Inspect surrounding seals and mounting tabs before installation; replace any broken clips
• Power off and disconnect the appliance before accessing internal components
• May require basic tools (screwdriver, socket) and removal of adjacent panels for access

The temperature sensor is an electronic probe that monitors internal appliance temperature and reports it to the control so it can regulate operation. Replacing a failed sensor restores more accurate temperatures and can clear temperature-related error codes. What it does:

• Senses internal temperature via resistance changes and sends the signal to the electronic control
• Helps the control reach and maintain the set temperature during operation
• Common failure symptoms: too hot/cold, won't reach set temp, long/short cycles, temperature error codes
• Can cause preheat to stall or the unit to shut off early (model dependent)

• Includes: 1 temperature sensor

• Disconnect power at the breaker before servicing
• Location and access vary by model; typically mounts with screws or a clip and connects to a 2-wire harness
• Handle the connector and wiring carefully; route and secure away from hot or moving parts
• After installation, clear stored errors and run a test cycle to proper readings

The Bake Igniter is an OEM part for Bosch wall ovens and ranges. Located at the bottom of the oven cavity, it generates the radiant heat needed to initiate the bake burners.

Causes of a bad bake igniter can include failure of the delicate calrod-style heating element from prolonged high-temperature exposure over time.

Symptoms of a bad bake igniter include:

• Inability to ignite or maintain ignition of the bake burners
• Improperly or unevenly heated oven cavity
• Cool or cold spots appearing on bake results
• Igniter glows, but fails to ignite

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This catalytic liner is an oven cavity panel with a heat-activated coating that helps reduce baked-on grease and food soils, making regular cleaning easier and improving oven cleanliness over time. What it does:

• Provides a heat-absorbing, self-cleaning surface inside the oven cavity
• Reduces buildup of grease and food residue so soils burn off at normal bake temperatures
• Helps limit smoke and odors caused by heavy soiling
• A damaged or missing liner can lead to harder-to-remove baked-on food or uneven cavity protection

• Disconnect power to the appliance before service and allow the oven to fully cool.
• Handle the coated surface carefully; do not scrub with abrasive cleaners or pads that can remove the catalytic coating.
• Installation typically requires removing oven racks and fasteners to access the cavity panel—keep track of hardware.
• Replace if coating is damaged or flaking.

This replacement cover is an exterior access panel that protects internal components and finishes the appliance for a clean look. It restores a sealed barrier over controls and wiring to help keep parts secure and reduce drafts. What it does:

• Covers and protects internal wiring, terminals and small components from debris and accidental contact
• Restores finished appearance where a damaged or missing panel left an opening
• Reduces rattling or vibration caused by loose or broken panels
• Helps prevent moisture and foreign objects from entering the service area

• One cover

• Disconnect power to the appliance before starting any work
• Installation may require removing screws or unclipping snap-in fasteners; keep hardware if reusing
• Handle edges carefully—use gloves to avoid cuts on sheet-metal edges
