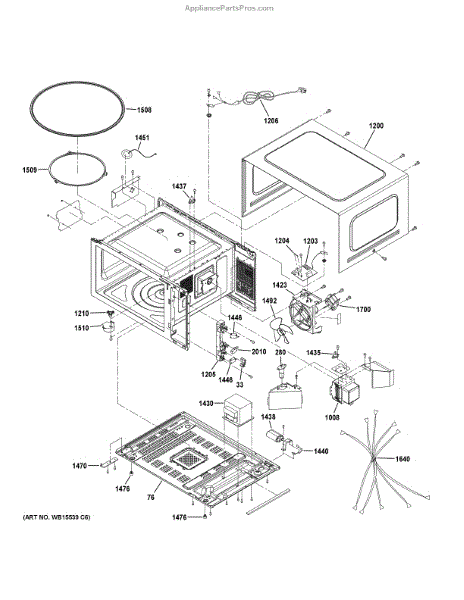

Parts for Ge PEB7227BL1TS: Oven Cavity Parts

The Switch Lever is an OEM part for GE microwaves. It is a component that allows for control of microwave functions by sensing the door position. The switch lever monitors whether the door is securely shut before enabling any cooking cycles, preventing hazardous radiation exposure.

Causes can involve wear and tear over time from repeated use. Exposure to moisture or impact damage may also compromise its operation.

Symptoms of a bad switch lever include:

• Error messages or indicator lights signaling a door issue
• Inability to lock or latch the door securely
• Failure to enable microwave functions with the door closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This base plate is the oven's bottom panel that supports internal components and helps direct heat and airflow for consistent cooking. It replaces a damaged or corroded bottom panel to restore proper oven interior support and alignment. What it does:

• Provides a stable mounting surface for oven components and the broiler/oven cavity floor
• Helps channel heat and airflow for even cooking performance
• Prevents debris from contacting lower heating elements and internal wiring
• Addresses symptoms such as visible rust, holes, warping, or loose/unstable oven floor

• One oven base plate (bottom panel)

• Disconnect power (electric) or shut off gas supply and electrical power before service
• Handle sharp edges carefully; wear gloves and eye protection during removal/installation
• Verify all fasteners and seals are tightened per manufacturer instructions after installation

Restore clear visibility while cooking with this replacement lamp. It brings your appliance's lighting back to factory performance so you can easily monitor food and read controls, replacing a burned-out, dim, or flickering light.

• Provides illumination inside the cavity or over the cooktop, depending on model design
• Replaces a failed, dim, flickering, or intermittent lamp
• Helps you see cooking progress and use controls safely
• Direct-fit replacement designed to connect to the original socket/connector

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the lamp and surrounding area to cool before handling
• Access location varies by model; follow your product's use and care guide
• For microwaves, service only the designated lamp access area; do not remove the cabinet due to high-voltage hazards. Ensure the lamp is seated/connected securely and test before reassembly

A noise filter that helps suppress electrical interference on the appliance power line, reducing hum, arcing and radio-frequency interference for more reliable operation. Fits into the appliance mains to limit unwanted electrical noise. What it does

• Suppresses line noise and radio-frequency interference that can cause humming, buzzing or intermittent operation.
• Helps prevent electrical interference that affect controls, displays or nearby audio equipment.
• Used where power-line filtering is required to maintain stable operation of the appliance's electronics.
• Common symptom: intermittent control response, audible electrical noise, or interference-related malfunctions.

• One noise filter.

• Disconnect power at the breaker or unplug the appliance before servicing.
• Access may require removing a rear or control panel; keep track of fasteners and grounding connections.
• Replace only with the exact part number; ensure proper orientation and secure mounting.

This replacement fuse protects the appliance's internal circuits from overcurrent. When the original fuse blows, installing a new one can restore power after the underlying short or overload has been identified and corrected.

• Opens the circuit during excessive current to protect wiring and components
• Common symptoms include no power, dark display, and no response to controls
• Replacement may restore operation once the root cause is fixed
• Repeated fuse failures indicate a shorted component or damaged wiring that needs diagnosis

• Disconnect power at the breaker before servicing
• Replace only with a fuse of the same type and rating as the original
• Never bypass or upsize a fuse; find and fix the cause before reapplying power

The Latch Board is an OEM part for GE microwaves. It plays a critical role in ensuring the microwave door latches securely, which is essential for safe operation. This board interacts with the door latch mechanism, enabling the microwave to function only when the door is properly closed.

Over time, the latch board can become worn out or damaged due to frequent use. Common causes of a bad latch board include electrical failures, wear and tear from regular use, or physical damage from repeated opening and closing of the microwave door.

Symptoms of a bad latch board include:

• The microwave not starting or operating intermittently
• The door not latching securely or staying closed
• Error messages related to door issues
• Unusual noises when attempting to close or latch the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Power Cord Assembly supplies mains power to compatible electric ranges and ovens, restoring safe, reliable electrical connection when the original cord is damaged. Designed as a direct-replacement electrical lead for affected units. What it does:

• Provides the appliance's main AC connection so the range/oven can receive power
• Replaces frayed, cracked, or burned cord insulation that can create shock or fire risk
• Stops intermittent power loss or failure to power on when caused by a damaged cord
• Helps prevent arcing and overheating at the cabinet entry when installed correctly

• Disconnect house power at the breaker before servicing; confirm power is off.
• Intended for replacement by an experienced DIYer familiar with appliance wiring.
• Verify proper terminal connections and secure strain relief to prevent chafing.
• Do not splice or shorten the cord; replace the entire assembly if damaged.

This turntable coupler is the hub that connects the microwave's turntable motor to the roller ring and glass tray. Replacing a worn or cracked coupler restores smooth rotation for more even heating and a steady, wobble-free tray.

• Transfers rotation from the turntable motor to the tray support and glass tray
• Promotes even cooking by keeping the tray turning during cycles
• Typical symptoms: tray not turning or turning intermittently, clicking/grinding from the center, wobbling tray, or a visibly cracked/stripped hub
• Direct replacement for a damaged, melted, or deformed coupler

• Disconnect power at the plug or breaker before servicing
• Remove the glass tray and roller ring; pull the old coupler straight up off the motor shaft
• Align the flats/splines and press the new coupler fully onto the shaft—do not force
• Reinstall the roller ring and tray; test rotation with a small cup of water

This wind guide cover is a direct-fit replacement cover that helps direct airflow and shields internal components from debris. It restores proper airflow routing and helps maintain consistent operation of the appliance. What it does:

• Directs and channels airflow inside the appliance to support proper ventilation
• Protects internal components and sensors from dust and debris build-up
• Helps reduce drafts or uneven airflow that can affect performance
• Restores the original fit and appearance after a damaged or missing cover

• Disconnect power to the appliance before beginning any service.
• Remove access panels and fasteners as needed; basic hand tools may be required.
• Handle the part carefully to avoid cracking plastic tabs; align mounting tabs and secure with original fasteners.

This high voltage transformer supplies the elevated voltage needed for spark ignition, restoring reliable spark to gas burners and the broiler so burners light quickly and consistently. What it does

• Steps up line voltage to create high-voltage pulses for spark electrodes used in gas burner and broiler ignition
• Replaces a failed transformer that produces weak or no spark
• Helps stop constant clicking or popping when no spark is visible
• Can resolve intermittent sparking or ignition failures on cooktop burners or broiler

• Disconnect power and shut off gas supply before beginning service.
• Handle carefully and avoid contact with terminals; capacitors and high-voltage components can retain charge.
• Transfer wires exactly as found; secure all connections and insulators to prevent arcing.

The Thermostat is an OEM part for GE microwaves. It acts as a temperature-sensing component that monitors internal heat levels and provides feedback to electronic controls.

Causes of thermostat failures can involve deterioration over extended use under intermittent high heat stresses.

Symptoms of a bad thermostat include:

• Inability to properly cook or reheat foods thoroughly
• Temperature readings malfunction triggering errors
• Magnetron shutting off unexpectedly mid-cooking cycle
• Cook settings not functioning optimally

This OEM GE replacement is compatible with Hotpoint, RCA and some Kenmore microwave models as well.

A replacement thermostat that monitors and regulates appliance temperature to restore consistent heating and more accurate temperature control. Use this thermostat when the original fails, causes inconsistent temperatures, or heating cycles behave erratically. What it does:

• Senses internal temperature and signals the appliance's heating system to maintain set temperatures.
• Helps stop persistent over- or under-heating and reduce wide temperature swings during cycles.
• Commonly used when an appliance won't reach or hold the correct temperature or cycles on and off too frequently.
• Works as a temperature-control component; does not include related sensors, switches, or wiring harnesses unless listed.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Allow the appliance to cool completely; handle sharp sheet metal and hot surfaces with care.
• Replace only with the correct part number; secure terminals and wiring per the appliance's wiring diagram.

The  High Voltage Capacitor is an OEM part for GE microwaves. As a high-voltage part, this capacitor stores electric current to power the magnetron tube that generates microwave energy.

Symptoms of a faulty capacitor include:

• Microwave failing to heat or functioning intermittently
• Low or no power output leading to longer cook times
• Sparking, burning, or smoke coming from inside the microwave cavity
• Buzzing or cracking noises emanating from the microwave

Over time, high-voltage capacitors can break down due to wear or internal electrical failures. As a microwave safety device, it must function properly to avoid potential electric shock hazards.

This OEM part is also compatible with some Hotpoint, RCA and Kenmore microwave models.

The H.V. Diode is an OEM component specifically designed for GE microwaves. It serves an important electrical purpose as a high-voltage rectifier that converts incoming AC power into DC power required to operate the microwave. During use, the H.V. diode regulates high voltage output sent to the magnetron tube for cooking.

Causes of a bad H.V. diode failure can include excessive heat stress and deterioration over many years of intermittent use.

Symptoms of a bad H.V. diode include:

• Magnetron not receiving proper voltage and failing to ignite
• Inability to heat or partially cooking foods
• Burning/melting smells detected from inside unit
• Electrical shorting or buzzing noises occur
• Microwave not operating or functioning erratically

This OEM GE replacement part is compatible with Hotpoint, RCA and select Kenmore microwave models.

The Micro Switch is an OEM part for GE microwaves. This part ensures the appliance operates only when the door is securely closed. It controls the electrical circuit, allowing the microwave to start heating food when the door latch engages the switch.

Causes of a bad micro switch can include wear and tear from frequent use, electrical issues, or physical damage from slamming the microwave door.

Symptoms of a bad micro switch include:

• The microwave not starting or stopping unexpectedly
• The microwave running even with the door open
• Intermittent power issues
• The door not latching or the microwave indicating the door is open

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This humidity sensor measures humidity levels inside the fresh-food compartment so the refrigerator can regulate humidity-sensitive features and help preserve produce. It replaces a failed or inconsistent humidity reading for better climate control. What it does

• Detects moisture/humidity in the fresh-food area so the fridge control can adjust dampers or humidity settings
• Helps reduce excess moisture, condensation, or premature spoilage when functioning properly
• Can resolve symptoms like erratic humidity readings, dampness or frost buildup, or related control errors
• Interfaces with the refrigerator control board to provide real-time humidity feedback

• One humidity sensor module

• Disconnect power to the appliance before replacing the sensor to avoid shock or damage
• Typically plugs into the control harness; handle the sensor and connector with care to avoid bending pins
• Avoid contaminating the sensor element with liquids or cleaners during installation
• Check the control board and wiring harness for faults

The glass tray is an OEM part for GE microwaves. It sits on the turntable motor and holds your food during the cooking process. It ensures even and efficient heating by allowing the food to rotate.

A bad glass tray can result in issues such as wobbling, a noisy operation, or unevenly cooked food. Causes of a bad tray can include accidental breakage, wear and tear over time, or improper handling.

Symptoms of a bad glass tray include:

• Uneven heating or cooking of your food
• Noisy or wobbly rotation during operation
• Visible cracks or damage on the tray
• Difficulty in cleaning or removing stains from the tray

Replace your worn-out or damaged glass tray with this genuine OEM GE part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Rotating Turntable Assembly is an OEM replacement part for GE countertop microwaves. As the central hub allowing full rotation of the glass turntable, this assembly performs an essential function.

Symptoms of a bad rotating turntable assembly can include:

• Scratching or binding noises coming from the turntable mechanism
• Difficulty rotating or uneven spinning of the turntable plate
• Discoloration, cracking or loosening of the turntable hub over time

Repeated heating and cooling cycles can cause wear of plastic gears and ball bearings in the assembly. Food residues or damage may also accelerate deterioration.

This genuine GE replacement is compatible with Hotpoint and select Kenmore brands.

The Turntable Motor is an OEM part for GE microwaves. It is responsible for rotating the glass turntable plate during cooking, ensuring food is evenly heated throughout the microwave cavity.

Symptoms of a bad turntable motor include:

• The turntable not spinning at all or rotating unevenly
• Loud grinding or clicking noises coming from the motor area
• The turntable plate wobbles excessively during the operation

Causes can be normal wear and tear over time from continuous use, failure of electronic components in the motor, or damage from heavy loads or impact. This GE replacement motor restores even cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today before a minor problem becomes a major repair bill. Continued use without a properly functioning turntable can damage other microwave components.
