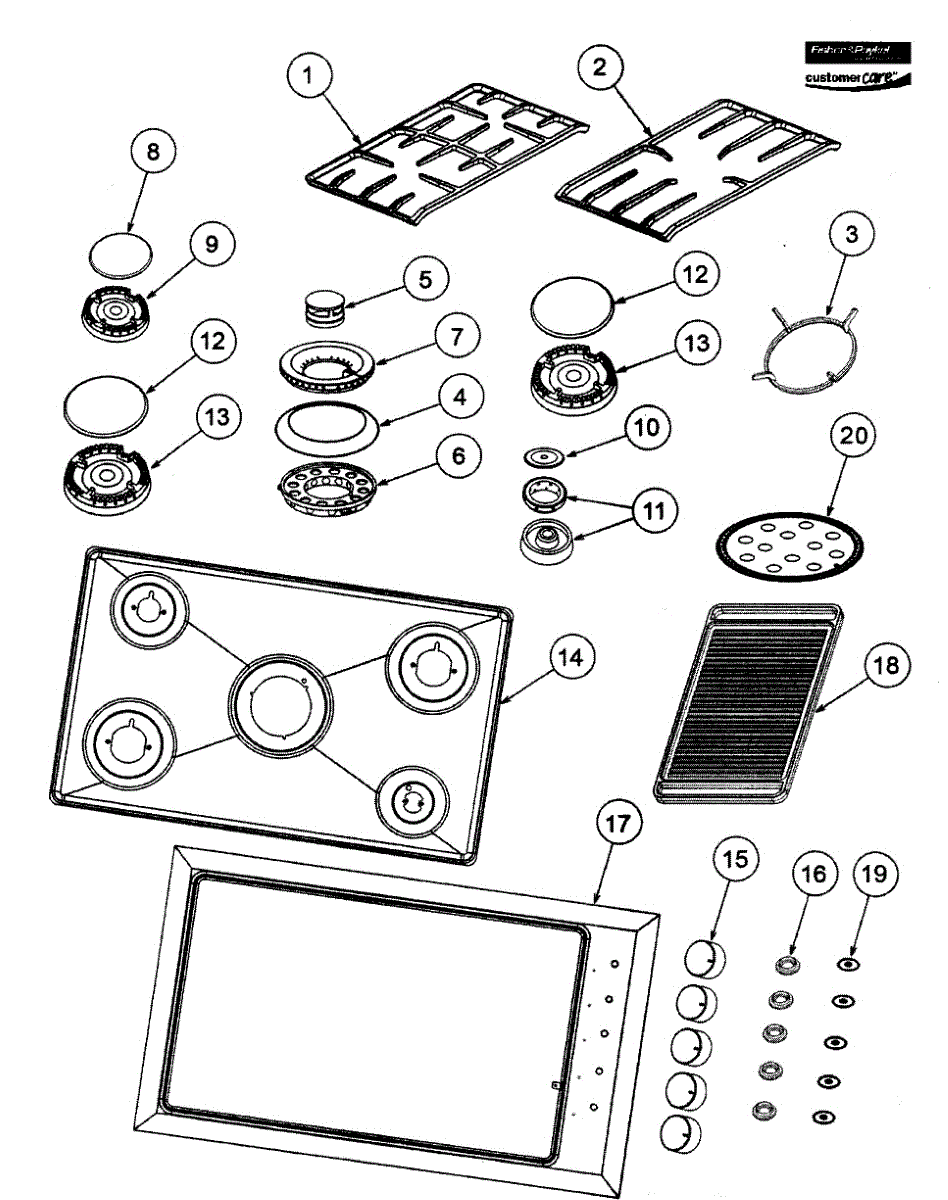

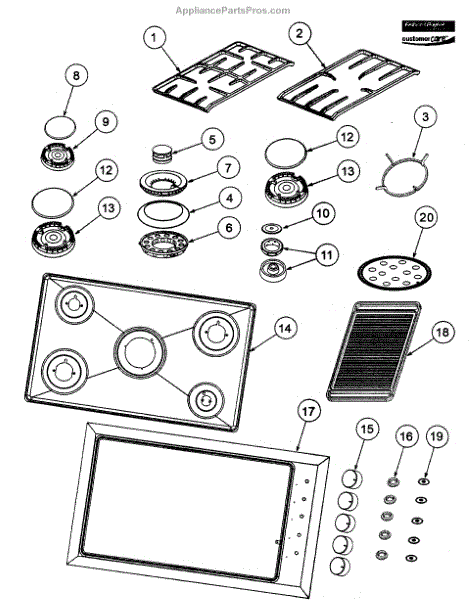

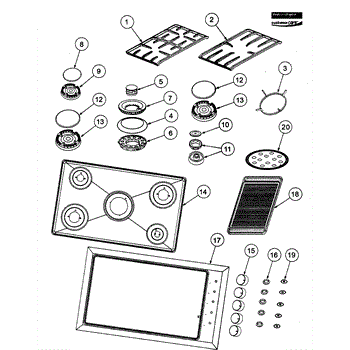

Parts for CG365DWACX1-88540A: Panel Assy Parts

This replacement auxiliary low burner ring supports the small/low-output gas burner and helps restore correct flame shape and heat distribution for simmering tasks. Designed to fit the matching burner cap and base. What it does:

• Positions and supports the auxiliary (low) burner cap for stable, even flames
• Restores proper flame pattern for low-heat cooking and simmering
• Helps prevent uneven heating or partial flame lift caused by a damaged ring
• Works with the burner assembly to maintain safe combustion when parts are intact

• Turn off gas supply and power to the appliance before servicing
• Remove burner cap and existing ring; seat the new ring so it sits flat and centered on the burner base
• Do not force or bend the ring; replace if warped or damaged
• If you smell gas or the burner fails to light properly after installation, stop.

This is a replacement rapid burner cap in a black matte finish for gas cooktops. It restores proper flame distribution and the cooktop's appearance after a damaged or missing cap. What it does:

• Covers the rapid (high-output) burner to direct gas flames for even heating
• Helps maintain correct burner flame pattern and cooking performance
• Replaces chipped, cracked, or worn caps that can affect ignition or heat spread
• Restores the cooktop's finished look and protects the burner head

• Turn off the appliance and gas supply and ensure all parts are cool before servicing
• Remove the old cap and set the new cap in place; no tools typically required
• Align the cap over the burner head so it sits flat and centered before use

This stainless steel hob tray collects spills and crumbs under the cooktop for easier cleanup and a neater appearance. It restores a sealed surface where burners and grates sit so messes stay contained. What it does:

• Catches spills, grease and food debris to prevent them from falling into the cabinet below
• Provides a flat, replaceable surface under burners and grates for easier wiping and maintenance
• Helps reduce visible stains and buildup around burner openings
• Replaces damaged, corroded or dented trays that no longer sit flush

• One stainless steel hob tray

• Turn off and cool the cooktop before removing grates and burners; follow appliance safety instructions
• Lift out old tray and set new tray into position; ensure openings align with burners and components
• Handle edges carefully; wear gloves to avoid cuts on sheet metal

This is a stainless-steel M3 x 7 mm countersunk Phillips screw packaged as a set of 10 — a common fastener for securing trim, brackets, and small components in appliances. It provides a flush finish when installed. What it does:

• Secures panels, brackets, and small component assemblies using a countersunk head for a flush fit
• Phillips drive allows standard screwdriver or bit installation
• Stainless finish resists corrosion in typical household appliance environments
• Used where an M3 x 7 mm machine screw is specified

• One packet containing 10 screws (M3 x 7 mm, countersunk Phillips, stainless)

• Use the correctly sized Phillips bit to avoid cam-out and striping
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• If replacing a screw, confirm thread size and head style match the original
• Follow all appliance safety guidance: disconnect power and water before servicing
