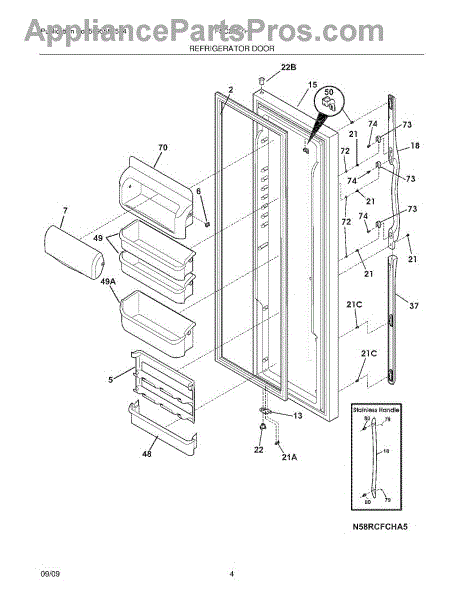

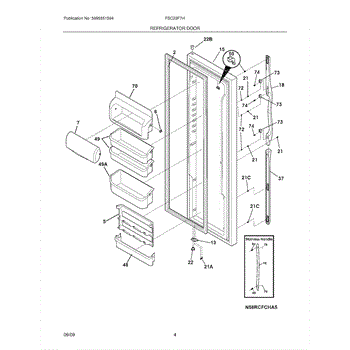

Parts for Frigidaire FSC23F7HSBB: 05 - Refrigerator Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This gray magnetic refrigerator door gasket replaces the perimeter seal on the fresh food door. It creates an airtight closure that keeps cold air in, blocks humid air, and helps prevent temperature swings, frost, and condensation. What it does:

• Seals the door perimeter with a flexible magnetic edge to stop air leaks
• Helps maintain proper refrigerator temperature and reduce frost/condensation near the door
• Restores smooth closing when the old gasket is torn, shrunken, or warped
• Typical symptoms: visible gaps, moisture on the gasket, frequent cycling, or food warming near the door

• 1 gray magnetic refrigerator door gasket

• Disconnect power before servicing
• Warm the new gasket with a hair dryer or hot water to relax folds for easier seating
• Remove the old gasket; press/fasten the new gasket evenly into the door channel or retainer, ensuring corners are fully engaged
• Close the door and check for uniform contact; adjust hinges or gently reshape with warm air as needed and allow the gasket to set with the door closed

This dairy door is the flip-up cover for the refrigerator's dairy compartment on the fresh-food door. It keeps butter and cheese covered and contained, restoring a clean, finished look when the original cover is cracked or missing.

• Covers the dairy compartment and hinges open for easy access
• Helps keep small dairy items contained and organized on the door
• Replaces a cracked, warped, discolored, loose, or missing cover
• Closes properly when seated on the original hinge posts

• Disconnect power before servicing
• Remove the old cover by releasing its tabs from the hinge posts
• Align the new cover with the hinge posts and press to snap into place
• Avoid forcing brittle plastic; allow the part to reach room temperature before installation

This refrigerator door stop limits how far the door swings open. Replacing a worn or broken stop restores the correct opening range, protecting the hinge and nearby cabinets while keeping door movement smooth and controlled.

• Mounts at the hinge to limit door swing and prevent overextension
• Protects the door, hinge, and adjacent cabinetry from impact damage
• Helps maintain proper door alignment and smooth operation
• Typical symptoms: door opens too far, bangs into surroundings, or the stop is visibly cracked/missing

• Disconnect power and clear items from the door before starting
• Support the door; remove hinge cover/fasteners and the damaged stop
• Install the new stop in the same orientation; tighten screws securely
• Reassemble and test the door swing to ensure it stops smoothly

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This hinge bearing supports and guides the refrigerator door as it pivots on the hinge, reducing friction and wear. Replacing a worn bearing restores smooth, quiet door movement and proper alignment for a reliable seal.

• Provides a low-friction pivot surface between the hinge pin and the door
• Helps support door weight and maintain alignment for proper gasket contact
• Common symptoms of a worn bearing: squeaking or popping, door sagging or binding, and doors that don't close smoothly or seal consistently
• Reduces hinge wear to help extend hinge life

• Disconnect power and remove items from the door for safety and easier handling
• Support the door, remove hinge cover and fasteners, and lift the door off the hinge
• Remove the worn bearing and install the new bearing in the same orientation on the hinge pin or seat
• Reinstall and align the door; tighten hardware and verify smooth movement and proper gasket seal

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. This bin attaches to the inside of the refrigerator door, providing convenient storage for smaller items like condiments, beverages, and jars.

Common causes of a bad door bin include regular wear and tear from frequent use, cracking or breaking due to overloading, or impact damage from items being placed in or removed from the bin.

Symptoms of a bad door bin include:

• Cracks or breakage in the plastic
• The bin not staying securely in place
• Difficulty in holding items due to instability
• Discoloration or warping of the bin material

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. This part attaches to the inside of the refrigerator door, offering additional storage space for condiments, bottles, and other small or medium-sized items.

Over time, door bins can become cracked, discolored, or broken due to overloading, accidental impacts, or the natural aging process. This can lead to a decreased ability to securely hold items, potentially causing spills or making efficient use of space more challenging.

Symptoms of a bad Door Bin include:

• Cracks or breaks in the plastic, compromising its structural integrity
• The bin sagging or not attaching securely to the refrigerator door, indicating wear or damage to the attachment points
• Difficulty in sliding the bin in or out, or it not fitting properly due to warping or damage
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for easy organization and access to items such as bottles, jars, and condiments.

You should replace the door bin if it becomes damaged or worn out. Causes of a bad door bin can include regular wear and tear, overloading with heavy items, or accidental impacts that cause cracks or breaks. A compromised door bin can reduce storage capacity and may not securely hold items.

Symptoms of a bad door bin include:

• Cracks or breaks in the bin
• Difficulty fitting the bin into its designated slot
• The bin not staying in place or wobbling
• Items falling out of the bin or not being securely held

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
