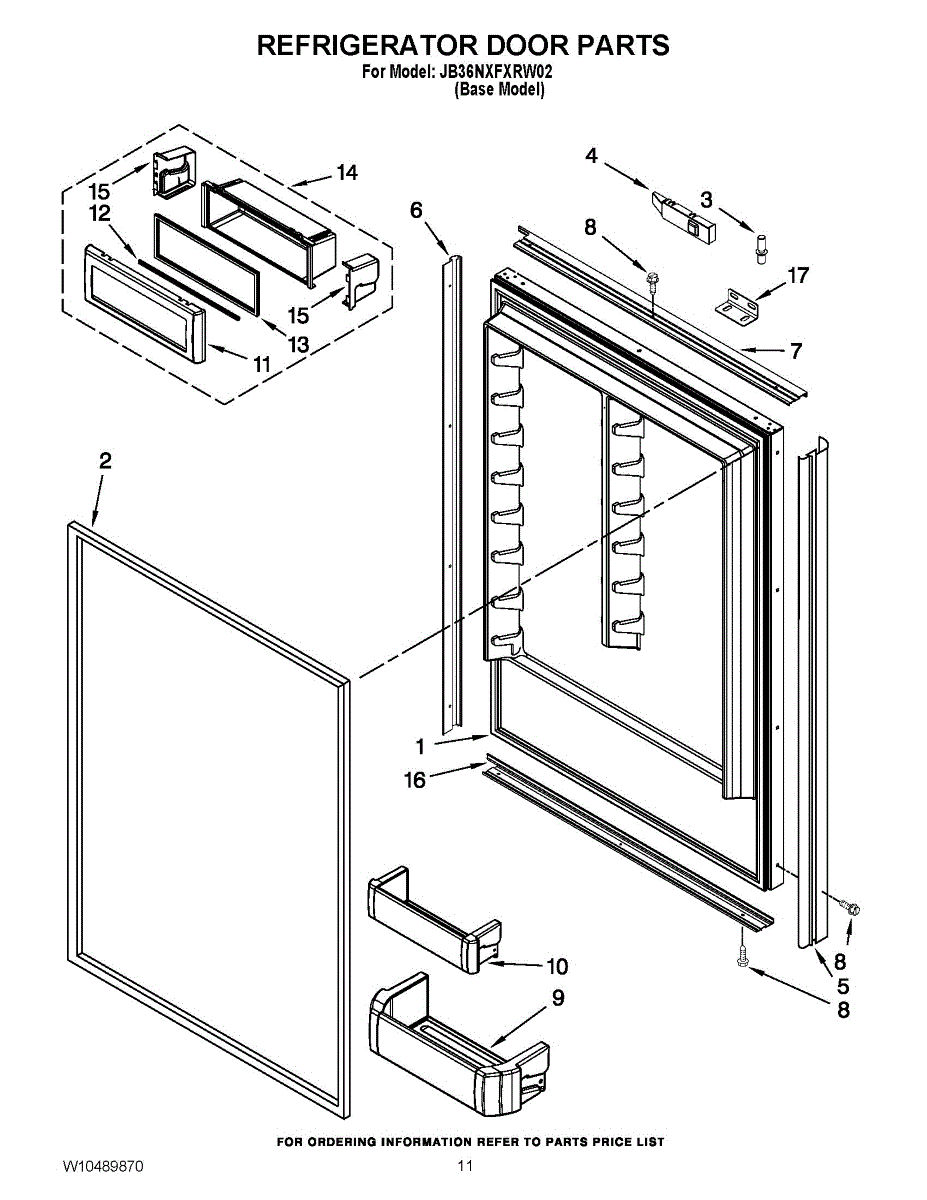

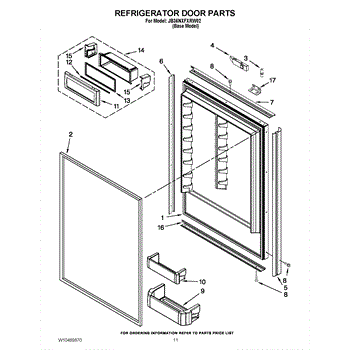

Parts for Jenn-Air JB36NXFXRW02: 07 - Refrigerator Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This refrigerator door gasket for foam-in-place doors creates a tight seal around the door opening to keep cold air in and moisture out, helping maintain stable temperatures and reduce frost and energy waste.

• Seals the door perimeter to prevent warm air leaks
• Helps maintain correct cooling performance and humidity levels
• Reduces frost and condensation caused by poor sealing
• Common signs it's needed: tears, warping, gaps, persistent frost/condensation, door not sealing or popping open

• Disconnect power before servicing
• Warm and relax the gasket in hot water or with a hair dryer on low to ease installation
• Remove the old gasket from the retainer/channel; install the new gasket starting at the corners and press fully into place
• Check the seal all around and adjust the door/hinges as needed; allow time for the gasket to set

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This shallow freezer door bin mounts on the inner door and restores organized storage for smaller items. Replace a cracked, loose, or missing bin to keep packages secure and easy to access.

• Creates a dedicated shelf on the freezer door for boxed or bagged foods
• Replaces bins with cracked plastic, broken locking tabs, or discoloration
• Helps prevent items from falling when the door opens and closes
• Restores a secure fit if the original bin won't seat or keeps popping off

• Empty and remove the old bin by lifting up to release it, then pulling out
• Align the new bin with the door liner slots and press down until fully seated
• Handle plastic carefully; install at room temperature to reduce risk of cracking
• No tools typically required; match position and orientation to the original bin

This control lever secures a refrigerator door shelf bin to the door frame so bins stay seated and stable during normal use. Replacing a broken or worn lever restores proper bin retention and reduces rattling or unexpected bin release. What it does

• Holds the door shelf/bin in place so it doesn't fall out when opening or closing the door
• Aligns and retains the bin on the door track for secure storage
• Stops bin-related rattles and noisy door operation caused by a loose or cracked lever
• Common symptom: bin falls out, won't stay seated, or rattles in the door

• One door bin control lever

• Remove food and take the door bin off the door before replacing the lever
• Inspect the bin and mounting area for damage; clean mounting surfaces if needed
• Lever typically snaps into the door mounting point; align and press until it clicks
• Disconnecting power is not required for most door-bin repairs, but follow all safety precautions and your model's service instructions

This left-hand endcap-trim is the side bracket that anchors the trim/rail for a refrigerator bin or shelf. Replacing a cracked or missing endcap restores support and alignment so the drawer, cover, or bin sits level and secure.

• Supports and secures the left side of the trim/rail for a bin, shelf, or cover
• Helps keep the drawer/bin aligned and prevents wobble or sagging
• Replaces a damaged or missing LH endcap that allows the rail to loosen or detach

• Disconnect power and remove the affected bin/shelf before servicing
• Release tabs or remove screws to detach the rail/trim; transfer any hardware from the old endcap
• Orient left-hand as viewed from the front of the appliance; snap or fasten into place
• Reinstall components and check alignment and movement

Right-hand door bin end cap that replaces a cracked or missing trim piece and secures the refrigerator door shelf. Restores a flush fit and helps keep stored items from shifting. What it does

• Snaps onto the right end of a refrigerator door bin to hold the bin trim in place.
• Prevents the bin from coming loose or tilting when you open and close the door.
• Replaces worn or damaged end trim that can leave gaps or expose sharp edges.
• Commonly used when the door shelf feels loose, the bin slides out, or the end cap is cracked.

• Remove the door bin before installing to access the end cap; handle the bin carefully to avoid spills.
• Align the end cap with the bin trim and snap it into place until it seats securely.
