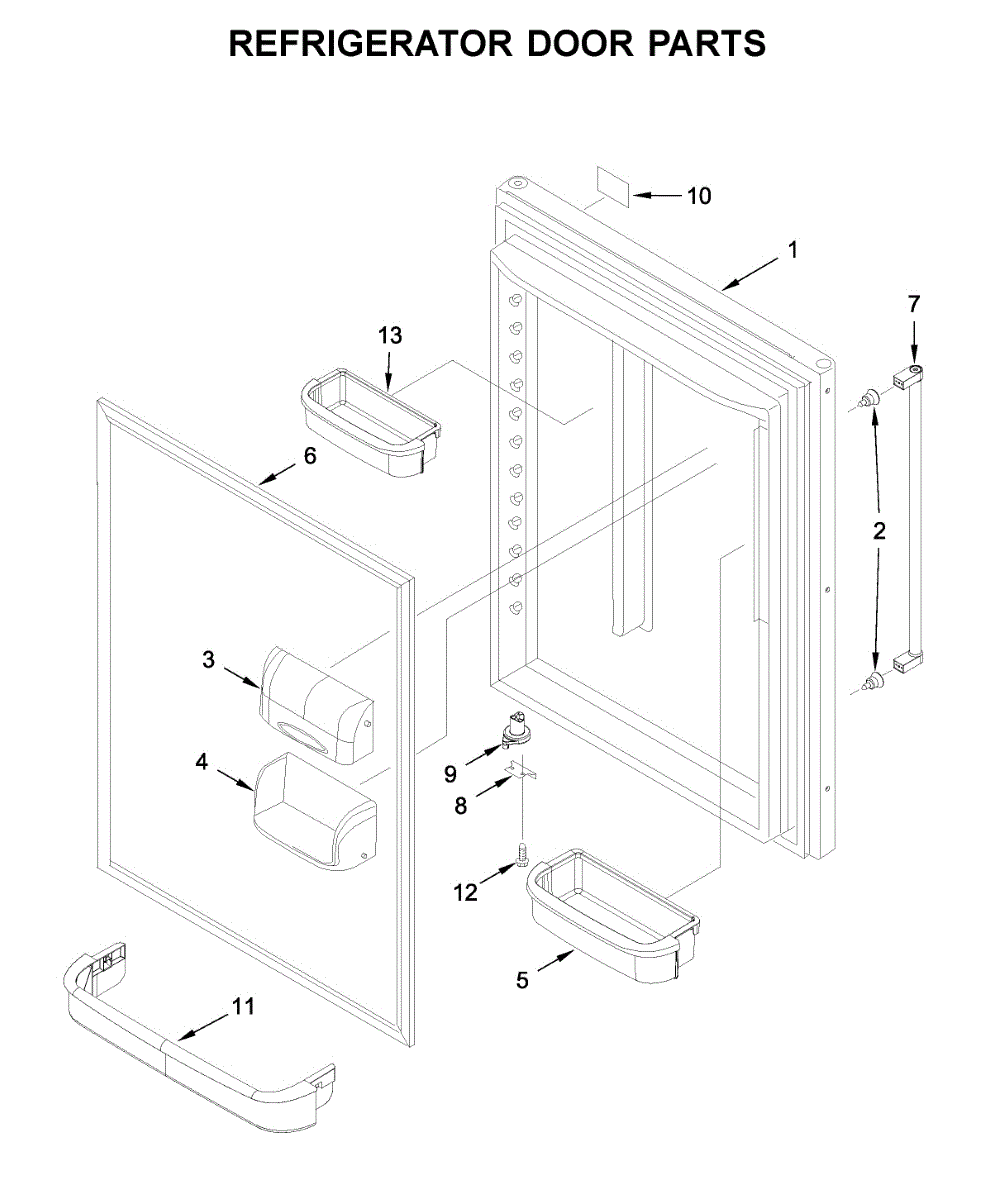

Parts for Kitchenaid KRBL109ESS01: Refrigerator Door Parts

Color: Stainless Note: Left Hand Door Swing

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Fip Gasket is an OEM part compatible with Whirlpool refrigerators. Located around the refrigerator door opening, the fip gasket forms an air seal when the door is closed.

Causes of a bad fip gasket can include tears, cracks or compression issues from years of door opening/closing cycles. Mineral or food residue buildup can also cause sealing problems.

Symptoms of a bad fip gasket include:

• Fluctuating interior temperatures
• Higher energy costs due to inefficient sealing
• Condensation or frost buildup around the door
• Warm or cool air detected entering around the door seal
• The door not sealing closed properly

This OEM Whirlpool replacement fip gasket is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore refrigerators.

The Handle is an OEM part for Whirlpool refrigerators. It allows for easy opening and closing of the door. This handle is designed to provide a sturdy grip, making it convenient to access your food items.

A bad handle can be caused by wear and tear over time, excessive force applied to the handle, or damage due to accidental impact or mishandling.

Symptoms of a bad handle include:

• Difficulty in opening or closing the door.
• Loose or wobbly handle.
• Cracks or breaks in the handle.

Replace your worn-out or damaged handle with this OEM part and restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This stop-door is a small replacement door stop that helps control how the appliance door closes and rests, restoring proper door movement and preventing over-travel or binding. What it does:

• Cushions and limits the door's travel to prevent slamming or over-rotation.
• Helps the door align and latch correctly when closing.
• Can reduce door sag or rubbing caused by a worn/missing stop.
• Addresses symptoms such as a door that closes too far, hangs unevenly, or doesn't sit flush.

• High-level, two-person recommended for larger doors; support the door before removing fasteners.
• Disconnect power (and water if applicable) and follow manufacturer safety guidance before servicing.
• Use appropriate hand tools; inspect adjacent hinges and fasteners and replace if damaged.

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1-1/4 inch.

This clear refrigerator door bin snaps into the inner door liner to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure door storage and keep frequently used items organized and within reach.

• Provides removable shelf storage on the refrigerator door
• Replace if the bin is cracked, warped, or has broken locking tabs
• Common symptoms: bin falls off, won't stay seated, or won't install securely
• Restores proper door capacity and helps prevent spills

• Remove the old bin by lifting up and out of the door slots
• Align the new bin's hooks with the door slots and press down firmly until fully seated
• Ensure both ends are fully engaged; test with a light load before filling
• Distribute weight evenly and avoid overloading
