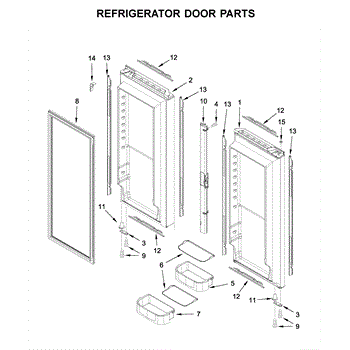

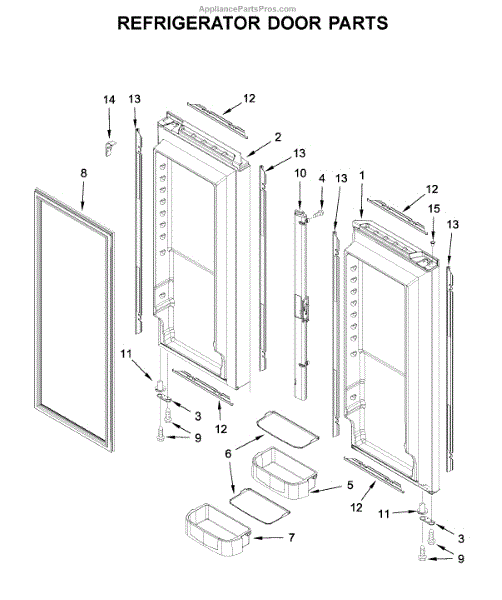

Parts for Kitchenaid KRFC302EPA02: Refrigerator Door Parts

The Bin-Cntlvr (Cantilever Bin) is an OEM part for Whirlpool refrigerators. This bin attaches to the refrigerator door and provides additional storage space for items like bottles, condiments, and other small containers. The cantilever design allows for easy adjustment and customization of shelf space within the refrigerator door.

Causes of a bad cantilever bin can include overloading the bin with heavy items, accidental impacts, or wear and tear from regular use.

Symptoms of a bad cantilever bin include:

• The bin not staying in place on the door
• Cracks or visible damage to the bin
• Difficulty adjusting or removing the bin
• Items falling out of the bin due to instability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

This replacement mat is a simple protective liner that helps keep the appliance base area clean and cushions the surface beneath the unit. It preserves finishes and helps contain minor spills and debris for easier cleanup. What it does:

• Provides a washable surface that catches drips, crumbs, and loose debris
• Helps protect cabinet or floor finishes from spills and scuffs
• Reduces direct contact between appliance base and underlying surface
• Can make cleanup faster by containing messes in one removable piece

• Remove old mat and clean the area before installing the new mat
• Position the mat flat and centered under the appliance or in the designated compartment
• Do not place the mat over vents, heating elements, or controls
• Lift or slide gently to avoid shifting the mat; follow all appliance safety and disconnect procedures before servicing

The Door Bin is an OEM replacement part for Whirlpool refrigerators. Mounted on the refrigerator doors, bins conveniently organize stored items.

Causes of replacement consist of excess weight occasionally placed in bins can bow or warp tray structures over extended use as well.

Symptoms involve:

• Bins that no longer securely anchor or drift loose within doors
• Warped configurations insufficiently containing particular items
• Scratches or defects that harbor bacteria on surrounding surfaces

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: Black

Size: 8 x 1-1/4 inch.

Color: Black

The Trim is an OEM component specifically designed for Whirlpool refrigerators. Installed along the outer edge of the refrigerator and freezer doors, the trim seamlessly frames the opening. Its styled accents and durable material withstand frequent use while enhancing the appliance's appearance.

Symptoms of bad trim can include cracks or chips developing from years of opening and closing the doors. Adhesive degradation may cause a loose, uneven fit.

Causes involve normal wear over time exposing the trim to repeated stresses. Impact damage could also compromise its structure.

Symptoms of a bad trim include:

• Gaps allowing air exchange reducing efficiency
• Loose, flapping, or misaligned sections ruining aesthetics
• Cracks or splits compromising the weatherproof barrier

This OEM Whirlpool part is also compatible with KitchenAid, Maytag, Jenn-Air, Amana, and some Kenmore refrigerator models. Replace to restore an integral design element protecting the door seals.

Door trim restores the finished edge and appearance of your refrigerator door while helping protect the gasket area and reduce drafts. Replaces cracked, dented, or worn trim to keep the door looking and sealing properly. What it does:

• Provides a finished edge and restores cosmetic appearance to the refrigerator door.
• Helps protect the door seal area from damage and wear.
• Can reduce visible gaps or drafts that lead to frost buildup or temperature loss.
• Covers exposed fasteners and helps maintain a clean, finished look.

• Unplug the refrigerator or switch off power at the breaker before beginning any work.
• Remove any door-mounted items and handle parts as needed to access trim; follow the refrigerator's OEM service manual for step-by-step removal.
• Use care to avoid scratching the finish; gloves are recommended to protect hands and part edges.
