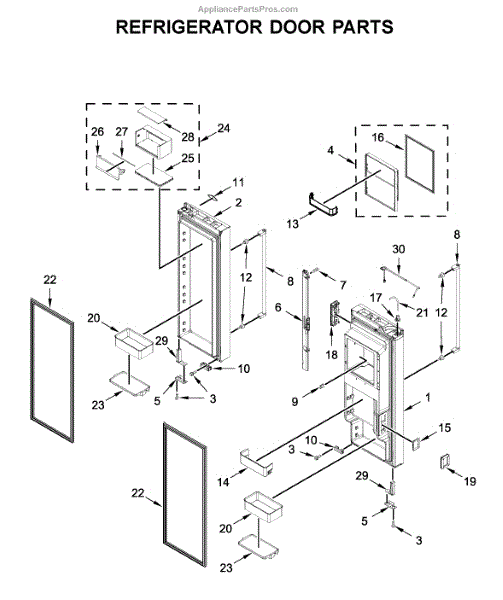

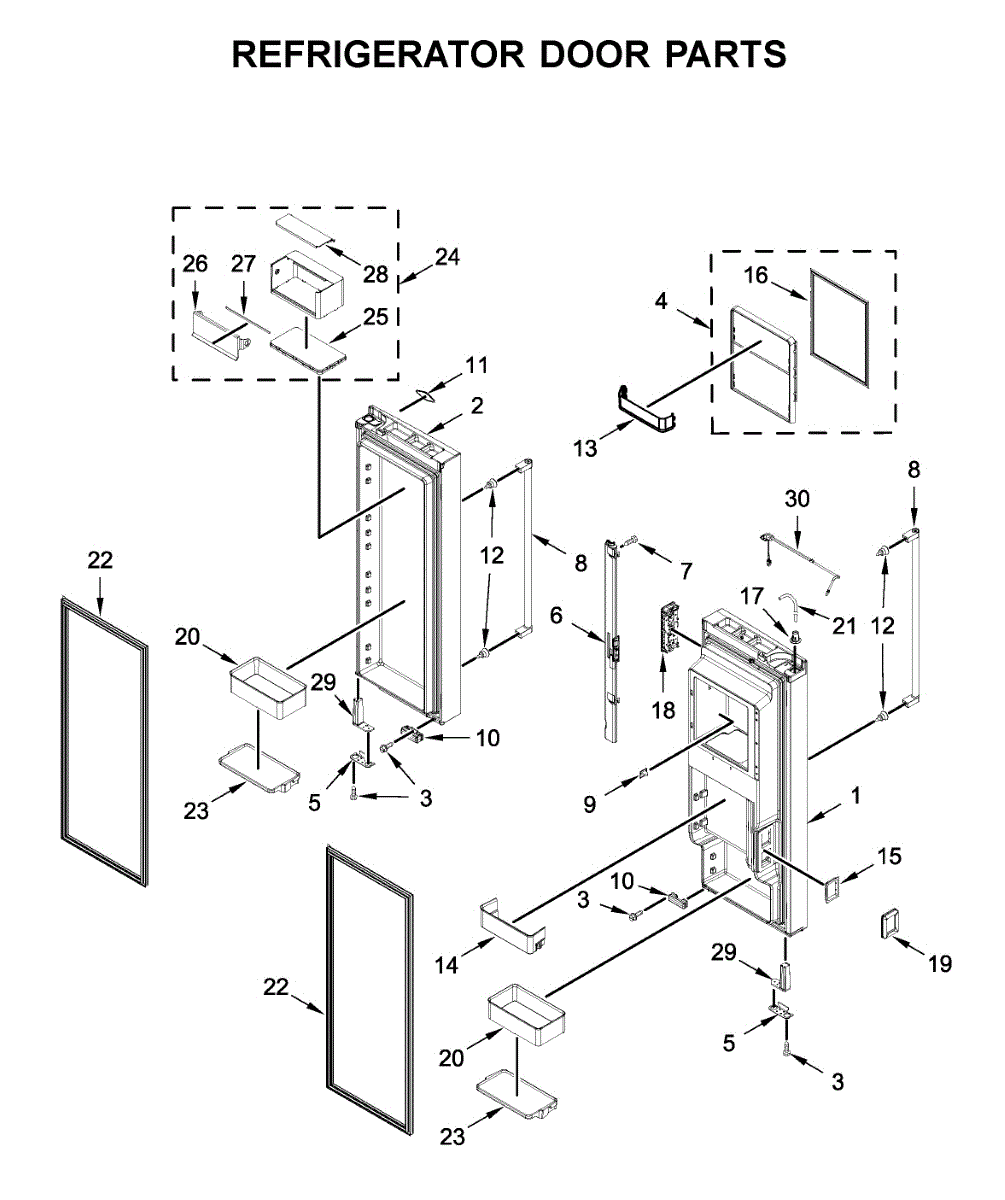

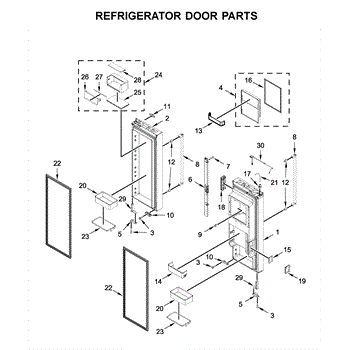

Parts for Kitchenaid KRFC704FPS04: Refrigerator Door Parts

This factory screw fastens appliance components securely. Replacing a missing, stripped, or rusty screw helps stop rattles, keep panels and brackets aligned, and restore a solid, as-designed fit.

• Secures panels, brackets, and trim to the appliance cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces damaged, corroded, or missing hardware
• Can resolve loose or shifting components

• Disconnect power and shut off gas/water to the appliance before service.
• Use the correct driver; start threads by hand to avoid cross-threading and do not overtighten.
• Install in the original location and match the OEM fastener type specified in your model's parts diagram.

This ice door foam assembly replaces the insulation inside the refrigerator ice door to help maintain cold temperatures and reduce frost and condensation around the ice area. Proper insulation helps the ice system run more reliably and stay drier. What it does:

• Provides thermal insulation inside the ice door to reduce heat transfer
• Helps minimize frost buildup and moisture around the ice dispenser/bin
• Supports stable ice storage temperature for better ice quality
• Restores the door's insulated seal when the original foam has deteriorated

• One ice door foam assembly

• Disconnect power to the appliance before starting any repair
• Remove ice bin/door trim per manufacturer instructions to access the foam
• Handle carefully and align foam into the door cavity; some models use adhesive or clips

This stop door is a replacement door stop that helps the appliance door close securely and stay in position. Restores proper door movement and reduces rubbing or misalignment that can cause noise or poor sealing. What it does:

• Replaces a worn or broken door stop to restore normal door closing and positioning
• Helps prevent the door from bouncing, rubbing, or hanging open
• Can reduce door-related noise and improper sealing during use
• Supports reliable door alignment for safer operation

• Disconnect power to the appliance before starting any repair
• Remove the door or access panel as needed to reach the mounting area
• Typical installation uses basic hand tools (screwdriver, nut driver); retain existing fasteners unless replacement hardware is provided
• Inspect surrounding hinges and catches and replace if damaged

This rail-mulln (mullion rail) replaces the vertical trim piece that runs between appliance door sections to restore proper fit and appearance. It helps keep the door edges aligned and maintains a finished look. What it does:

• Provides the vertical trim between door panels or appliance sections for a finished appearance
• Helps maintain door alignment and consistent spacing between panels
• Covers and protects the seam where two door sections meet
• Reduces light and air leakage at the door seam

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or door panels to access the mullion rail
• Handle trim pieces carefully to avoid scratching or bending; use proper fasteners

The Handle is an OEM part for Whirlpool refrigerators. Located on the outside front center of the refrigerator cabinet, this handle provides an ergonomic grip point for easily opening and closing the refrigerator door. This handle measures 30 3/4 inches.

Causes of a bad handle can include wear and tear over time allowing door seals to leak, or damage such as cracks, breaks, or loose mounting from falls or repeated forceful closing of the door.

Symptoms of a bad handle include:

• Difficulty opening/closing the refrigerator door
• Leaks developing around the door seals
• Cracked, loose, or broken handle mounting

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore refrigerator models.

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations

The Refrigerator Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides storage for eggs, condiments, and other small items directly in the refrigerator door.

Causes of a bad shelf bin can include cracked or broken plastic.

Symptoms of a bad shelf bin include:

• Items falling out of alignment or between cracks
• Difficulty deploying or stowing the shelf tray
• Leaks or odors from cracked surfaces

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the cantilever-style door shelf bin that locks into the refrigerator door rails to hold bottles, jars, and condiments. Replacing a cracked or missing bin restores secure storage and full door capacity. What it does:

• Provides adjustable storage on the inner door using cantilever slots
• Helps keep items stable when opening and closing the door
• Common replacement signs: cracks, broken locking tabs, won't stay seated, falls off the rail
• Restores usable space and keeps contents organized

• 1 door shelf bin

• Remove the old bin by lifting up to release it from the cantilever slots, then pull out
• Align the new bin's hooks with the desired slots and press down until it clicks securely
• Verify the door closes freely and avoid overloading the bin
• Wear gloves to protect hands from sharp edges on broken plastic

This gasket seals the refrigerator's ice compartment. Replacing a worn or damaged seal restores a tight barrier that keeps cold air in and moisture out, helping reduce frost, condensation, and ice clumping around the ice bin and chute.

• Creates an airtight seal around the ice compartment door/housing to limit warm air infiltration
• Helps maintain proper temperature and airflow in the ice area for consistent ice quality
• Reduces frost and condensation at the ice chute and inside the bin
• Common signs of failure: tears, warping, or compression; persistent frost/moisture; ice clumping or melting in the bin

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and any covers to access the gasket channel
• Pull out the old gasket; clean mating surfaces; press the new gasket in evenly without stretching
• Verify full, even contact around the perimeter before restoring power

This small plastic retainer clip secures panels or trim pieces on the appliance to keep components aligned and reduce vibration. It's a simple replacement that restores a snug fit where a worn or broken clip allowed gaps or rattling. What it does:

• Secures exterior panels, trim or internal covers to prevent movement and rattling
• Holds wiring harnesses or small components in place
• Restores factory alignment and helps maintain proper clearances
• Common symptom: loose or rattling panel, trim gap, or unsecured component

• One replacement retainer clip

• Disconnect power before servicing; always follow appliance safety guidelines
• Typically installs with a push-fit or snap-in action; may require a flat screwdriver or small trim tool to remove the old clip
• Verify clip orientation and seating before reassembling panels
• Replace all matching clips for consistent fit

This door gasket seals the refrigerator/freezer door to keep cold air in and humidity out, helping the appliance run efficiently and protecting stored food. It replaces a torn, warped, or leaking seal. What it does:

• Forms an airtight seal around the door to reduce frost buildup and prevent warm air leaks
• Helps maintain consistent internal temperatures for food safety
• Can reduce excessive run time and cycling caused by a failing seal
• Stops drafts, moisture, and odors from entering the compartment

• One door gasket

• Remove old gasket and clean mating surfaces before installing the new gasket
• Align gasket into the door channel and press firmly; some models require softening with warm air for a snug fit
• Check seal by closing the door and inspecting for gaps; adjust as needed

This cantilever door bin mounts on the inner door to provide secure, convenient storage. Replacing a cracked or missing bin restores organized space for bottles and condiments and helps prevent items from tipping or falling when the door opens.

• Mounts to the door liner rails as a cantilever shelf to hold containers
• Keeps frequently used items organized and within easy reach
• Replace if the bin is cracked, broken, or warped
• Replace if tabs are worn, the bin falls off, won't stay seated, or is missing

• Disconnect power to the refrigerator before servicing
• Remove contents; lift the old bin up and out of the door ladder/slots
• Align the new bin with the slots and press down until fully seated and secure
• Verify the door closes freely and avoid overloading the bin

The door gasket is an OEM part for Whirlpool refrigerators. It forms a seal between the refrigerator door and body, working to ensure peak cooling and energy efficiency. This rubber gasket acts as insulation, preventing warm air from entering the refrigerator compartment each time the door is opened.

Causes of a bad door gasket can include cracks, tears, or compression from repeatedly opening and closing the refrigerator door over an extended period of time.

Symptoms of a bad door gasket include:

• Inefficient cooling and higher energy costs
• Warm air leaking into the refrigerator
• Moisture buildup or frost inside the body
• Difficulty properly sealing the door shut

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover is an access panel that protects internal components and keeps the appliance enclosure finished and secure. It restores a clean exterior and helps prevent dirt, lint, and accidental contact with parts behind the panel. What it does:

• Shields internal wiring and components from debris and accidental contact
• Maintains the appliance's finished appearance by replacing a damaged or missing panel
• Helps reduce airflow of lint and dust into service areas
• Useful when troubleshooting or servicing — provides a removable access point

• Disconnect power (and gas/water if applicable) before starting any service
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Handle part carefully to avoid scratching the finished surface

A genuine replacement door closer that helps the appliance door open and close smoothly while holding proper alignment. Restores intended door motion to reduce slamming and misalignment for safer, more reliable operation. What it does

• Controls the door's opening and closing movement to prevent sudden drops or slams
• Helps the door stay properly aligned and seated when closing
• Reduces stress on hinges and latches caused by uncontrolled door movement
• Commonly used when door feels loose, won't stay open, or closes unevenly

• One door closer assembly

• Disconnect power and water (if applicable) before starting any repair
• Basic hand tools are typically required;
• Handle springs and tension components carefully; wear eye protection when working with tensioned parts

This closer is the door hinge/closing component that controls how the appliance door moves and latches. It cushions and steadies the door for smoother closing and helps prevent slamming or doors that won't stay shut. What it does:

• Controls and cushions door travel so the door closes smoothly and reduces slamming.
• Helps the door engage the latch and stay closed; can address doors that drop or don't shut fully.
• Replaces worn or broken closers that cause uneven or noisy door movement.
• Works as a mechanical hinge/closing aid—not an electronic part.

• Disconnect power to the appliance (unplug or turn off breaker) before starting any work.
• Basic hand tools typically required (screwdriver, nut driver); remove any trim or panels per your service manual.
• Handle springs and hinge hardware carefully to avoid pinching; wear gloves and eye protection.
