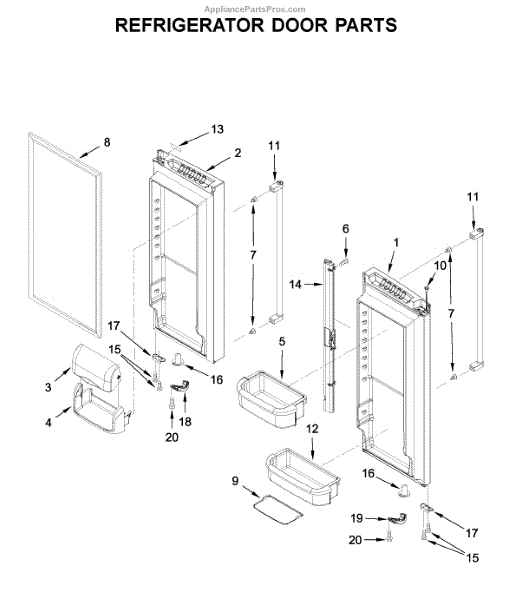

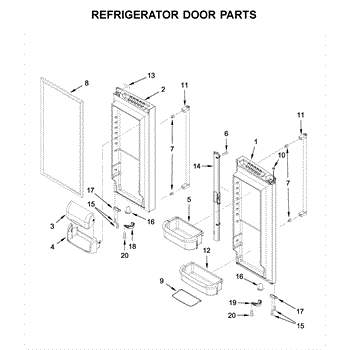

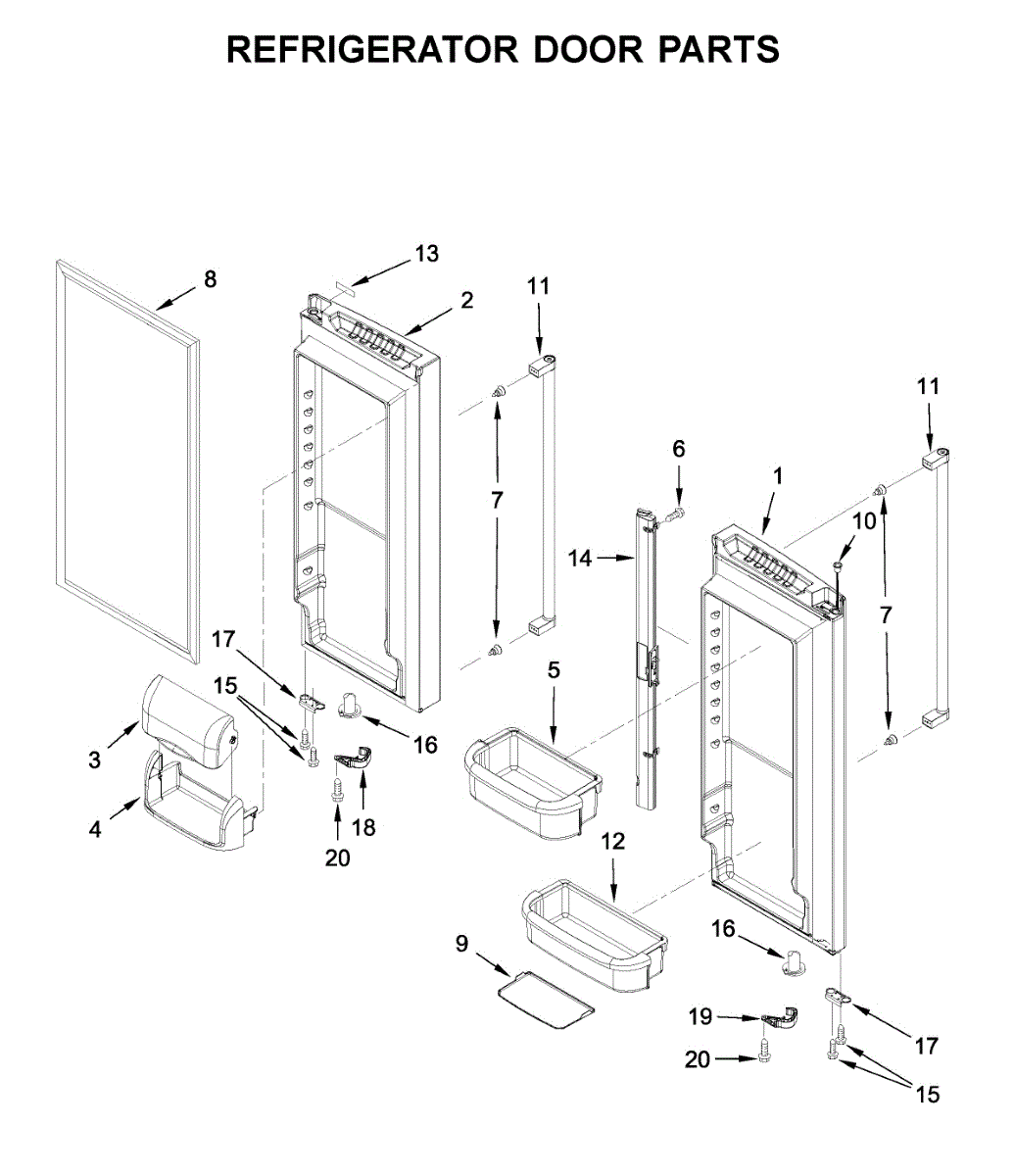

Parts for Kitchenaid KRFF305EBS02: Refrigerator Door Parts

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance panels and components securely. Replace a missing, stripped, or corroded original to restore a tight fit and help prevent rattling, vibration, and gradual loosening of assemblies.

• Secures panels, brackets, and internal assemblies to the frame
• Replaces damaged or missing hardware to maintain proper fit
• Helps reduce vibration, noise, and movement caused by loose parts
• Supports correct alignment at the original mounting points

• Disconnect power and shut off water or gas before service.
• Match the original screw's location and length; replace one at a time if needed.
• Use the correct driver/bit and avoid overtightening to prevent stripping plastic or metal.
• Reuse any washers or clips only if in good condition.

Black for Right Hand Door

The Gasket-FIP (BLK) is an OEM part for Whirlpool refrigerators. This gasket is designed to create a tight seal around the refrigerator or freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering.

Causes of a bad gasket can include wear and tear over time, cracks or tears from frequent door openings and closings, and deformation due to improper cleaning or handling. A compromised gasket can lead to energy inefficiency, increased frost build-up, and higher utility bills.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost or condensation buildup
• The door not sealing properly or gaps in the seal
• Higher than usual energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For WHITE gasket, order W10830189.

The Handle is an OEM part for Whirlpool refrigerators. Located on the outside front center of the refrigerator cabinet, this handle provides an ergonomic grip point for easily opening and closing the refrigerator door. This handle measures 30 3/4 inches.

Causes of a bad handle can include wear and tear over time allowing door seals to leak, or damage such as cracks, breaks, or loose mounting from falls or repeated forceful closing of the door.

Symptoms of a bad handle include:

• Difficulty opening/closing the refrigerator door
• Leaks developing around the door seals
• Cracked, loose, or broken handle mounting

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore refrigerator models.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin is designed to fit into the door of the refrigerator, providing additional storage space for items such as bottles, condiments, and small containers. This door bin measures about 15 inches wide by 3 inches high by 8 inches deep.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic, which can cause items to fall out
• The bin not fitting securely into the door slots
• Sagging or bending of the bin, especially when loaded with heavier items
• Difficulty in removing or replacing the bin due to damage or warping

Causes of a bad door shelf bin can include regular wear and tear from frequent use, overloading with heavy items that exceed the bin’s weight capacity, or exposure to temperature fluctuations that can cause the plastic to become brittle and break.

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement name plate restores the appliance identification label that shows model, serial and regulatory information. It makes it easy to identify the unit for service, warranty and parts ordering. What it does

• Replaces a torn, faded or missing identification label so model and serial info are readable
• Provides the appliance's regulatory and manufacturing details used for service and registration
• Helps technicians during repairs
• Prevents confusion when buying replacement parts or scheduling service

• Disconnect power to the appliance and move any panels aside only as needed to access the original name plate.
• Clean and dry the mounting area before applying; align carefully to ensure full adhesion and legibility.
• If the original was fastened with screws, rivets or brackets, retain and reuse the proper hardware.
• Avoid touching printed surfaces to prevent smudging; handle with care.

This door closer restores smooth, controlled closing for the appliance door. It helps prevent slamming and keeps the door aligned for a better seal and reliable operation. What it does:

• Guides and cushions the door during closing to reduce slamming and wear
• Helps maintain proper door alignment for an effective seal and temperature control
• Reduces stress on hinge components and latch mechanisms
• Commonly replaces worn or broken closers that cause noisy, uneven, or loose door movement

• One door closer

• Disconnect power before starting work and follow appliance-specific service instructions
• Removal may require access panels or partial disassembly of the door/hinge
• Inspect surrounding hinge and mounting hardware and replace if damaged

Size: 8 x 1-1/4 inch.
