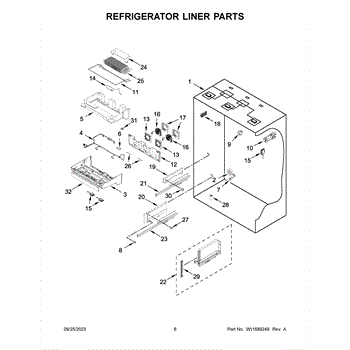

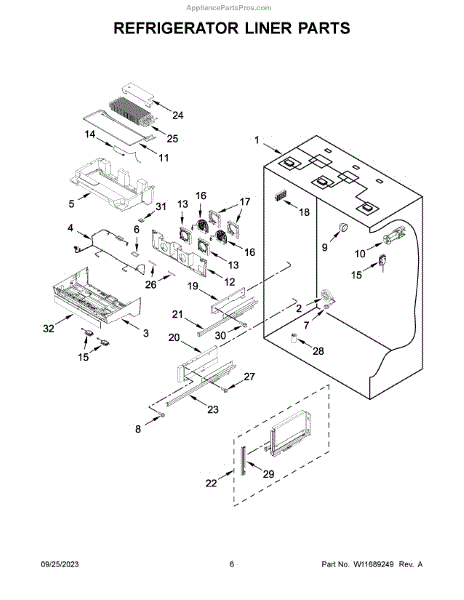

Parts for Kitchenaid KBBL306ESS05: Refrigerator Liner Parts

This evaporator cover protects the refrigerator's evaporator coil and helps direct airflow for efficient cooling. It replaces a damaged or missing cover to reduce frost buildup and maintain consistent temperatures inside the compartment. What it does:

• Shields the evaporator coil from contact and debris to prevent damage.
• Directs airflow over the coil for more even cooling and reduced ice buildup.
• Helps limit frost accumulation that can cause reduced cooling performance.
• Prevents loose items from contacting the coil and creating noise or obstructions.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Remove shelves and access panels as needed; handle the evaporator area gently to avoid puncturing the coil.
• Allow the evaporator to fully defrost if ice is present before installing the new cover.
• Reinstall all fasteners and panels securely; test operation and monitor for proper cooling after reassembly.

This wire harness assembly routes power and signals between appliance components so controls and motors operate reliably. Replace a damaged harness to restore electrical connections and correct intermittent or failed functions. What it does:

• Connects control boards, switches and motors with factory-style wiring and terminals
• Restores lost or intermittent electrical continuity that can cause erratic operation
• Prevents shorted or exposed wires from causing component failures
• Ensures correct signal routing for timed cycles and safety circuits

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Inspect connectors and wire routing; replace any harness with exposed insulation or damaged terminals
• Reconnect all plugs fully and secure the harness along original clips or guides to prevent chafing

This thermistor is the refrigerator temperature sensor that monitors cabinet temperature and sends readings to the control board so the appliance maintains consistent cooling. Replaces a failed sensor to restore proper temperature sensing and cycling. What it does:

• Senses internal refrigerator/freezer temperature and reports readings to the control board.
• Helps the control board regulate compressor and fan cycles for consistent cooling.
• Commonly fails when readings are erratic or the refrigerator runs too cold or too warm.
• Safe, widely reported symptom: temperature not stable or incorrect defrost behavior.

• One thermistor temperature sensor.

• High-level replacement: access may require removing interior liners or control covers.
• Disconnect power before testing or replacing to avoid shock or damage.
• Handle the sensor and wiring gently to avoid damage; secure connectors fully.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

Size: 8-18 x 1 1/4 inch.

This replacement valve tube-body helps route water within the appliance's valve assembly so the dispenser and ice maker get water when called. Restores proper water flow paths and replaces a worn or damaged tube-body. What it does:

• Directs water from the main valve to the dispenser and/or ice maker in the valve assembly
• Replaces cracked, corroded, or blocked tube passages that can cause reduced flow
• Commonly used when water leaks or irregular dispensing occur near the valve area
• Works as part of the valve manifold to maintain correct internal water routing

• One valve tube-body component

• Disconnect power and shut off the water supply before servicing
• Handle small fittings and seals carefully; inspect and replace O-rings or gaskets if damaged
• Some disassembly of panels or the valve assembly is required; wiring/piping diagrams
• After installation, restore water and power and check thoroughly for leaks and proper function

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages

This user interface panel is the front control surface that lets you set and monitor oven functions. It replaces a damaged, unresponsive, or visually worn control/display to restore normal front-panel operation. What it does:

• Provides the touch/buttons and display used to select oven modes, temperatures, timers and settings
• Transmits user commands to the oven's control board so appliances respond to inputs
• Common symptom fix: replaces panels with unresponsive or intermittent buttons
• Common symptom fix: replaces panels with faded, cracked, or unreadable displays

• Disconnect power at the breaker before starting any work to avoid shock
• Remove the control housing or trim as needed; handle the display surface carefully to avoid scratches
• Follow OEM wiring/location orientation; replace screws and grounding as originally installed
