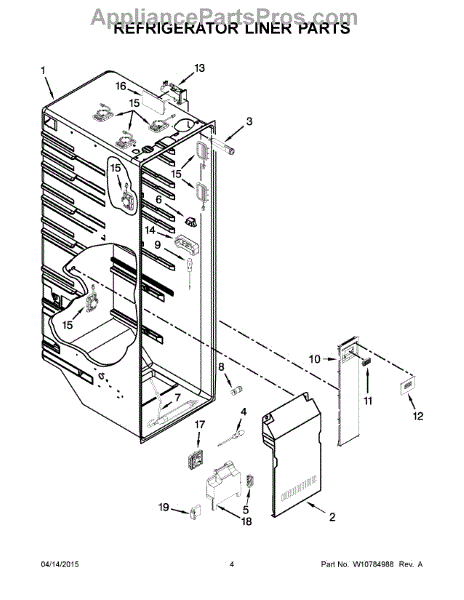

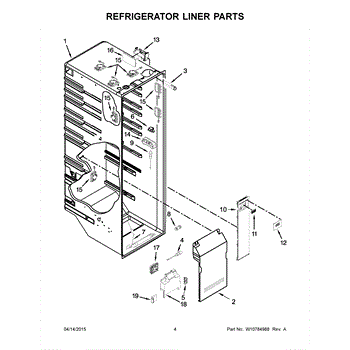

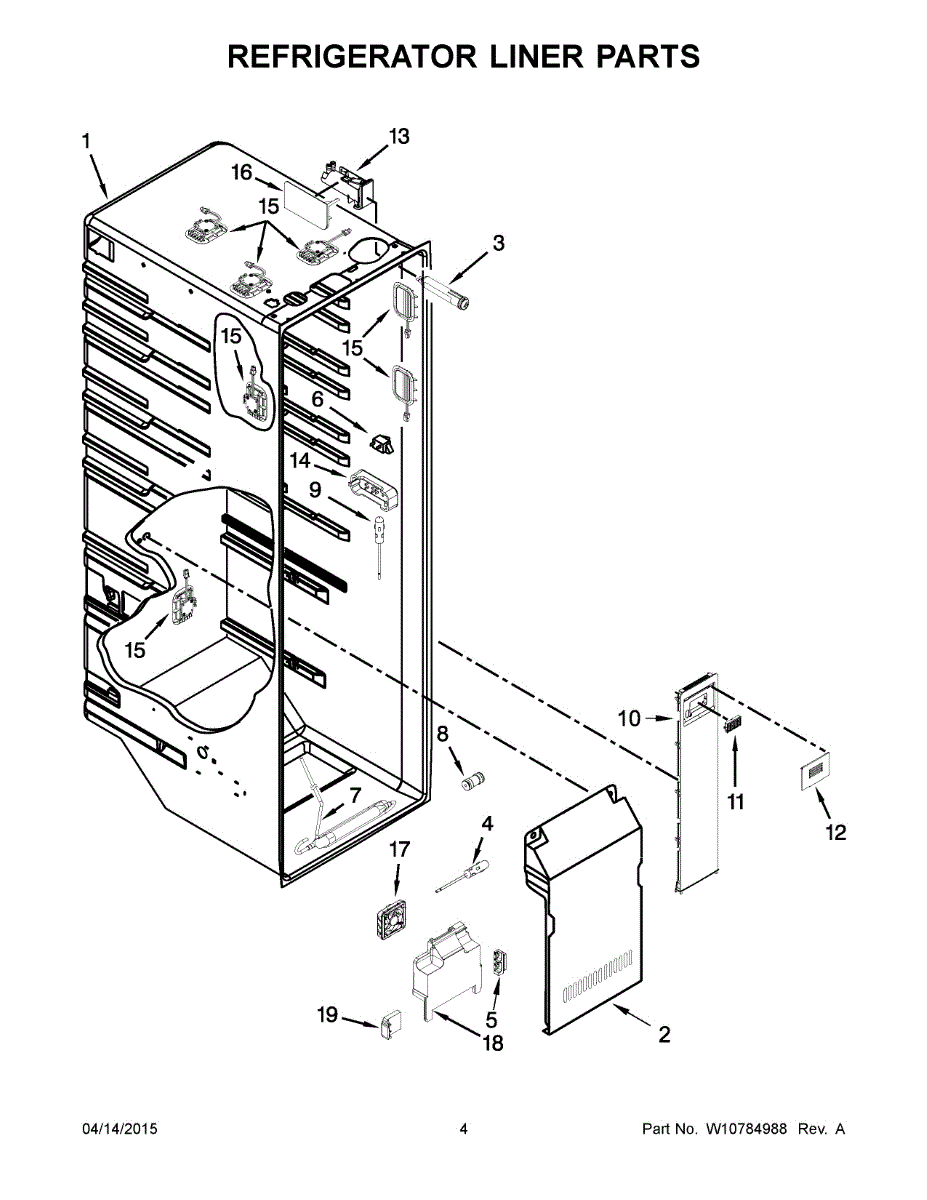

Parts for Kitchenaid KSC24C8EYP04: 03 - Refrigerator Liner Parts

This evaporator cover protects the evaporator assembly and helps direct cold airflow inside the freezer compartment for more consistent cooling. It replaces a cracked or missing cover to restore proper airflow and component protection. What it does:

• Shields the evaporator coil and fan from damage and debris
• Directs airflow across the evaporator for even cold distribution
• Helps reduce frost buildup by maintaining correct airflow paths
• Can prevent rubbing or vibration noises caused by loose or damaged covers

• One evaporator cover

• Always unplug the appliance before starting any repair
• Remove interior panels and any ice build-up to access the evaporator area
• Handle the evaporator and capillary tubing gently to avoid damage
• Use proper fasteners and ensure the cover seats fully to restore airflow

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Support Bracket is an OEM part for Whirlpool refrigerators. It is an integral structural component that provides support for internal refrigerator shelves and bins.

Causes of a bad support bracket can include cracks or fractures from long-term use and vibration, broken mounting points no longer firmly attaching it to the wall, or deformation preventing shelves from sitting correctly.

Symptoms of a bad support bracket include:

• Sagging or collapsed refrigerator shelves
• Items falling off shelves or bins frequently
• Difficulty removing or replacing shelves smoothly

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This reservoir is the molded water tank that stores and directs water inside the appliance, ensuring steady supply to the dispenser and ice-making system. Replaces a cracked, leaking, or damaged tank to restore proper water delivery. What it does:

• Holds and routes water used by the dispenser and ice system
• Prevents leaks when intact; cracks or damage can cause visible water under or around the appliance
• Replacing a failed reservoir can stop intermittent dispenser flow or slow ice production caused by leaks or loss of pressure
• Works with factory fittings and tubing to maintain correct water path and alignment

• 1 reservoir

• Disconnect power and shut off the water supply before starting work
• Handle the plastic tank carefully to avoid cracking fittings or mounting tabs
• Inspect and replace any damaged gaskets, clips, or tubing when installing
• After installation, reconnect water, check for leaks, and run the dispenser/ice cycle to verify proper operation

The Water Filter Housing is an OEM part for Whirlpool refrigerators. This part securely holds the water filter in place, ensuring proper water filtration and flow to the dispenser or ice maker.

Causes of a bad part can stem from physical impact or mishandling, excessive force applied when changing the water filter, or general wear and tear over time, leading to deterioration of the housing's materials or mechanisms.

Symptoms of a bad Water Filter Housing include:

• Water leaks around the housing area
• Difficulty in inserting or removing the water filter
• Visible cracks, breaks, or damage to the housing itself

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small white water filter cover secures and protects the refrigerator's inline/replaceable water filter, keeping the filter seated and helping direct water flow for the dispenser and ice maker. Replaces a cracked, warped, or missing cover to restore a proper seal. What it does:

• Holds the water filter in place so it seals correctly and prevents leaks
• Shields the filter from dirt and damage inside the housing
• Helps maintain correct water flow to the dispenser and ice maker
• Commonly replaced when cover is cracked, broken, or will not latch

• One water filter cover (small, white)

• Turn off the refrigerator water supply and dispense any remaining pressure before removing the old cover
• Handle gently to avoid damaging the filter housing or sealing surfaces
• Ensure the replacement cover is fully seated and latched; check for leaks after restoring water

The Fan Motor is an OEM part for Whirlpool refrigerators. Located inside the fresh food or freezer compartments, it circulates cold air evenly throughout interior shelves and bins.

Symptoms of a bad fan motor include:

• Erratic temperature fluctuations within sections
• Frost or ice buildup in areas further from vents
• Muffled or grinding noises emanating from inside walls

Causes can be normal wear over many years of operation, failure of electronic speed controls, or accumulated debris inhibiting smooth fan rotation.

This Whirlpool OEM replacement will restore the air circulation needed to maintain consistent temperatures. It is also compatible with Maytag, Jenn-Air, Amana, KitchenAid, and some GE side-by-side models for a seamless repair that prolongs your refrigerator's performance.

The Support is an OEM replacement part for Whirlpool refrigerators. It is designed to provide stability and support to the fan motor, ensuring proper operation and circulation of air within the refrigerator.

A bad fan motor support can occur due to wear and tear, cracks, or damage to its components. If you notice symptoms such as noisy operation, improper cooling, or the fan motor not spinning correctly, it may be time to replace the fan motor support.

Symptoms of a bad fan motor support include:

• Noisy operation
• Improper cooling
• Fan motor not spinning correctly

Restore your refrigerator by replacing the faulty or damaged fan motor support with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
