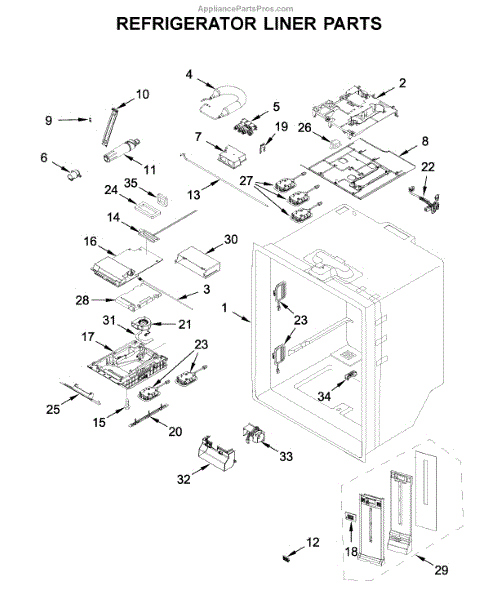

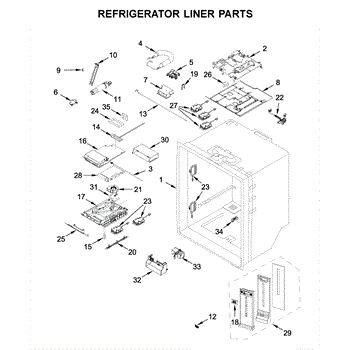

Parts for Whirlpool WRF767SDHZ02: Refrigerator Liner Parts

This water tube routes water from the supply to the refrigerator's dispenser/ice system, restoring proper water flow and reducing leaks where the line is damaged or cracked. It replaces a worn or broken factory water line. What it does

• Carries water from the household supply to the refrigerator dispenser/ice maker.
• Replaces cracked, split, or collapsed tubing that can cause leaks or reduced flow.
• Helps restore normal dispenser and ice-maker fill operations when the original tube is damaged.
• Prevents internal water damage caused by pinholes or separated fittings.

• One replacement water tube.

• Disconnect the refrigerator from power and shut off the water supply before starting.
• Use appropriate tools to remove clamps or fittings; avoid over-tightening new connections.
• Inspect and replace any worn clamps or fittings for a secure, leak-free seal.

The Triple Water Valve is an OEM part for Whirlpool refrigerators. It is a multi-port valve that controls the flow of water to three main areas inside the refrigerator: the ice maker, water dispenser valve, and the water filter housing.

Symptoms of a bad triple water valve include:

• No water dispensing from the fridge door
• Ice maker not making/dispensing ice
• Water filter changes not registering properly

Causes of failure can be mineral/scale buildup over time restricting water flow, or damage to internal seals and mechanisms from drops/impacts.

This OEM Whirlpool replacement valve is also compatible with refrigerators from brands including Maytag, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

The Water Filter Housing is an OEM part for Whirlpool refrigerators. Located inside the refrigerator cabinet, usually behind the vegetable/crisper drawers, this housing holds the water filter cartridge and provides the mounting point for water lines connecting to the ice maker and water dispenser.

Symptoms of a bad water filter housing include:

• Leaks or water drips inside the refrigerator
• Inability to properly install or change the water filter cartridge
• Error messages related to filter replacement not clearing
• Ice maker or water dispenser malfunctions

Causes can be cracks or breaks in the plastic material from repeated filter changes/impact damage. Mineral buildup over time may also cause internal parts to get stuck or fail to seal properly.

This OEM replacement housing is compatible with select refrigerator models from Whirlpool, Maytag, KitchenAid, and more.

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

This is the door filter access cover that protects and secures the refrigerator's water/filter access opening, keeping the filter compartment closed and helping maintain a clean, finished door appearance. What it does

• Covers the water/filter access opening so the filter stays secured and concealed.
• Helps prevent debris from entering the filter compartment.
• Restores a proper door seal and fit when the original cover is cracked, broken, or missing.
• Common symptom: cover is loose, cracked, or won't latch, exposing the filter area.

• Turn off water supply and remove the filter per manufacturer instructions before replacing the cover.
• Typically installs with clips or screws—align the cover, press into clips or reinstall fasteners.
• Inspect surrounding trim and gasket for damage and replace if necessary to ensure proper fit.

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This water tube directs water from the dispenser/water system to the appliance's internal components, restoring proper water flow and preventing leaks when the original tube is cracked or clogged. Durable replacement for wet or restricted lines. What it does:

• Routes water from the inlet/valve to the dispenser, icemaker, or internal plumbing.
• Replaces cracked, split, or collapsed tubing that can cause leaks or reduced water flow.
• Helps stop visible pooling or dripping under the cabinet or inside the fresh food section.
• Restores normal water delivery to the dispenser or icemaker when the original tube is obstructed or damaged.

• Disconnect power and shut off the water supply before beginning any repair.
• Inspect fittings and seals; replace any worn gaskets or clamps to ensure a leak-free connection.
• Tighten fittings by hand first, then snug with an appropriate tool—avoid overtightening plastic fittings.
• Test the system at low pressure after installation and check carefully for leaks before restoring full operation.

The Heater is an OEM component specifically designed for Whirlpool bottom-mount refrigerators. Located within the fresh food compartment walls, it prevents condensation by maintaining warm air circulation along interior surfaces.

Causes of a bad heater include deterioration of heating coils or electronic boards over many years, loose connections disrupting power delivery, or damage from moisture exposure.

Symptoms include:

• Foggy or frosted exterior walls need frequent drying
• Puddles of water collecting beneath vegetable drawers
• Musty odors developing within refrigerator shelves

This OEM replacement is also compatible with Kenmore, KitchenAid, and some GE models.

This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

Evaporator fan that circulates cold air through the refrigerator to help maintain even temperatures and reduce frost build-up. Replacing a failed fan restores airflow so the appliance cools more consistently. What it does:

• Circulates cold air across evaporator coils and interior compartments to help maintain set temperatures.
• Helps prevent localized frost buildup by keeping air moving over the evaporator.
• A worn or failed fan may make whining or rattling noises or run intermittently.
• Loss of fan operation can cause warm spots or reduced cooling performance.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access may require removing interior panels or evaporator cover—keep fasteners in a safe place.
• Handle sharp sheet-metal edges carefully and support the fan assembly to avoid dropping it.

The LED module is an OEM part for Whirlpool refrigerators. It contains LED lights that illuminate the refrigerator's interior bins and compartments. The modular LED assembly provides bright, energy-efficient lighting that makes items easy to see.

Causes of a bad modular LED assembly include burnt out bulbs, damaged wiring, or failures in the electronic components controlling power distribution.

Symptoms of a bad modular LED assembly include:

• Dim or unlit interior lighting
• Flickering or inconsistent illumination
• Completely non-functional lights
• Overheating or hot spots near the lighting area

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear icebox gasket seals the freezer/icebox compartment to help maintain proper temperature and reduce frost buildup. It restores the door seal so the appliance runs more efficiently and prevents moisture intrusion. What it does:

• Seals the icebox/freezer compartment to keep cold air in and warm, humid air out
• Helps prevent frost and ice buildup inside the icebox
• Reduces temperature fluctuations that can cause food spoilage
• Can stop condensation or water pooling caused by a failing door seal

• Unplug the appliance before attempting replacement
• Remove the old gasket fully and clean the mounting channel before installing the new seal
• Press the new gasket into the channel evenly; allow time for the gasket to form to the door

The Heater is an OEM part for Whirlpool refrigerators. It is a thin heating element located behind the cover for the ice compartment inside the fresh food section that functions to prevent condensation from accumulating.

Causes of a bad heater can include failure of the heating element over many cycles of use, cracks or breaks due to normal wear and tear or repeated door opening/closing stress.

Symptoms of a bad heater include:

• Foggy or clouded refrigerator door panels
• Visible condensation building up inside refrigerator doors
• Potential for water droplets or leaks inside door panels

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

The 3 LED Light Module & Harness is an OEM part for Whirlpool refrigerators. It includes three LED lights and a wiring harness to provide flexible and energy efficient lighting throughout the refrigerator compartment.

Causes of a bad light module can include failure of the individual LED lights over time, shorts or damage to the wiring harness, or issues with the electrical components that power the lights.

Symptoms of a bad light module include:

• Dim or flickering lights inside the refrigerator
• One or more lights not working
• Lights that repeatedly blow fuses or breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fan gasket seals the fan housing to help direct airflow and maintain proper cooling performance. It replaces a worn or damaged seal to reduce air bypass and improve temperature consistency in the appliance. What it does:

• Seals the fan housing to keep airflow directed through the evaporator/condenser as designed
• Helps prevent air leaks that can cause uneven cooling or longer run cycles
• Reduces the chance of frost buildup or moisture intrusion around the fan area
• Can minimize wind noise from air escaping gaps at the fan assembly

• Disconnect power to the appliance before beginning any repair
• Remove access panels and the fan housing to reach and replace the gasket
• Ensure the gasket seats evenly around the fan housing; trim none unless specified by the OEM
• Inspect surrounding components (fan blade, housing) for damage and replace if needed

When the damper control assembly fails, you'll know it. It will be stuck in one of two positions - closed or open. If it's stuck closed, your refrigerator compartment won't cool down at all and things will start to warm up. But if it's stuck open, too much cold air will rush in and your food will start freezing over. The damper control cannot be fixed and will need to be replaced.

A replacement icebox rear gasket that seals the freezer compartment to help keep cold air in and reduce moisture intrusion. Restores the door seal to help maintain proper temperature and reduce frost buildup. What it does

• Seals the icebox/freezer door edge to maintain cold compartment temperature.
• Helps prevent warm air and moisture from entering, reducing frost and ice buildup.
• Can improve cooling consistency and help reduce excessive run time caused by a poor seal.
• Common symptom fix: visible gaps, torn or deformed seal, or recurring frost around the door.

• One icebox rear gasket.

• Disconnect power to the appliance before replacing the gasket.
• Remove the old gasket, clean the door/frame sealing surface, and align the new gasket evenly.
• Press the gasket into the channel firmly; some models may require gentle warming or minor adjustment for a snug fit.
