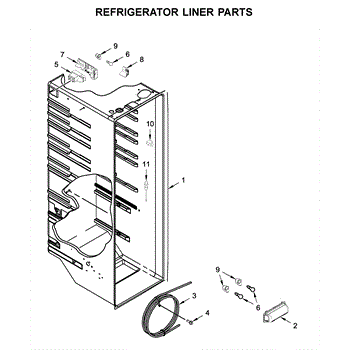

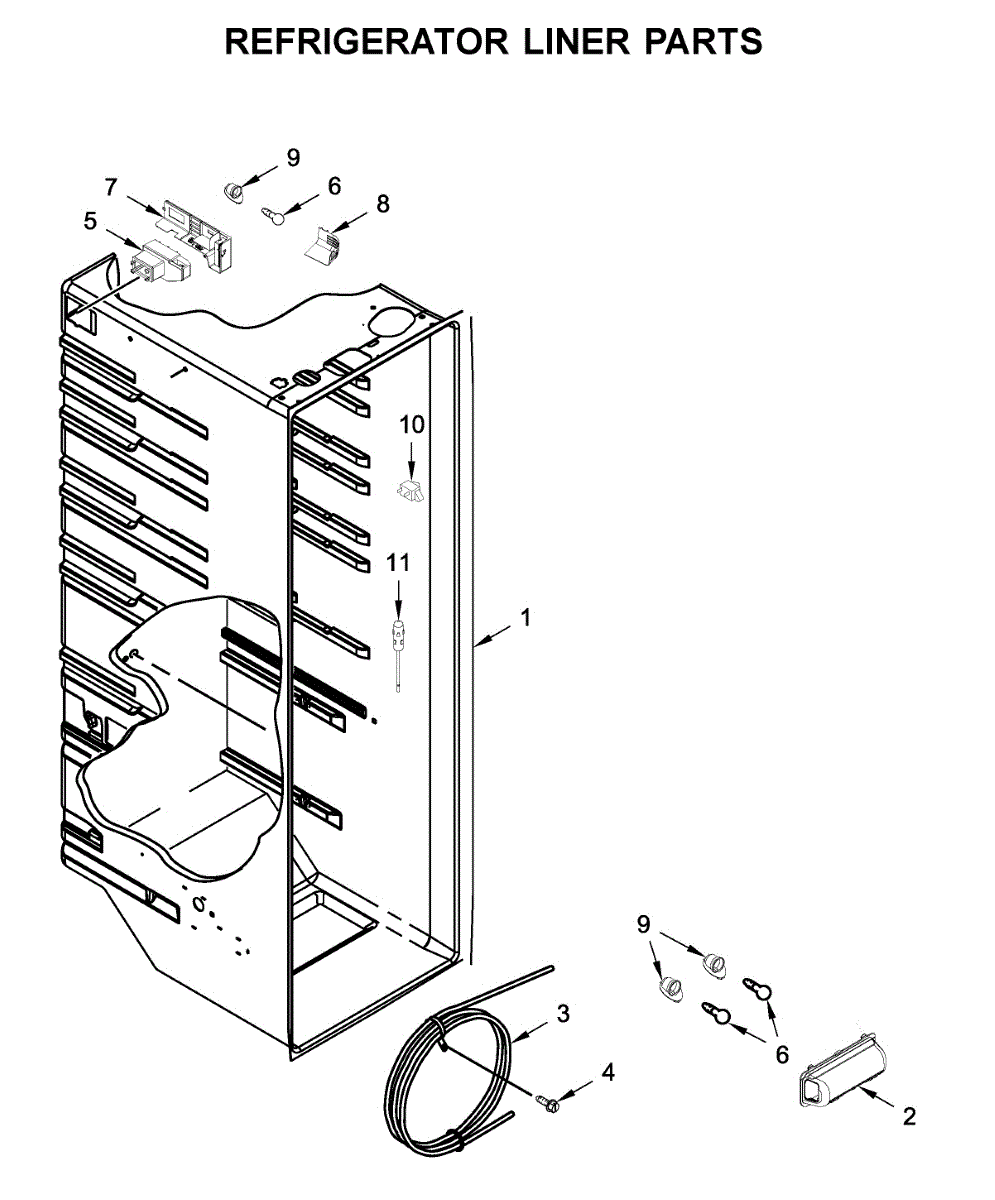

Parts for Whirlpool WRS311SDHT01: Refrigerator Liner Parts

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

This replacement tubing connects the refrigerator's water reservoir to the water system, restoring proper water flow and preventing leaks. It's a direct-fit hose that helps maintain reliable water delivery to the reservoir assembly. What it does:

• Carries water between the reservoir and the refrigerator water system
• Restores proper water flow when original tubing is cracked, pinched, or deteriorated
• Helps stop visible leaks near the reservoir or tubing connections
• Supports consistent ice maker and dispenser performance by ensuring uninterrupted water supply

• Disconnect power and shut off the water supply before beginning work
• Inspect routing and connection fittings; replace clamps or seals if damaged
• Handle tubing carefully to avoid kinks; secure with original clips or clamps
• Test for leaks after reconnecting water and restoring power

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

The Diffuser is an OEM component specifically designed for Whirlpool refrigerators. Located inside the refrigerator compartment's rear wall, it evenly distributes cool air flow throughout storage shelves.

Causes of a bad diffuser include cracks developing from constant air blowing over many years. Debris buildup may also obstruct optimum air distribution.

Symptoms of a bad diffuser include:

• Warm or cool spots inside the refrigerator
• Reduced airflow felt at storage level vents
• Visible cracks or breaks in the plastic structure
• Buildup of dust or particles on air passages

This OEM Whirlpool replacement diffuser ensures balanced interior temperatures. Its engineered vent design supports consistent air distribution along shelves.

Replace yours if any symptoms surface. This part is also compatible with some GE, Crosley, and select Kenmore models.

The Bulb-Light is an OEM part for Whirlpool refrigerators. It provides lighting within the refrigerator compartments, allowing for easy viewing of contents. The bulb-light joins with compatible sockets or bases designed precisely for its installation within the refrigerator.

Causes of a bad bulb light can include burnout over extended use, accidental damage during cleaning, or faulty wiring that prevents the bulb from receiving power.

Symptoms of a bad Bulb-Light include:

• Dark or no light in refrigerator compartments
• Bulb producing a flickering or intermittent light instead of consistent illumination
• Signs of overheating, melting, or charring around the bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This control box is the refrigerator's electronic control board that manages core functions and user interface so the appliance can regulate temperature and run cycles correctly. Replace a failed board to restore electronic control. What it does:

• Interprets inputs from temperature sensors and user controls to command compressor, fans, and defrost systems
• Manages timing for cooling and defrost cycles to help maintain set temperatures
• Powers and controls the display and user interface components
• Can resolve symptoms like erratic temperature behavior, unresponsive controls, or display errors when board failure is confirmed

• Disconnect power before accessing or replacing the control box to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use an anti-static wrist strap if available
• Verify connectors are fully seated and wiring is routed exactly as removed
• Some models require removing interior panels to access the board; for panel removal steps

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
