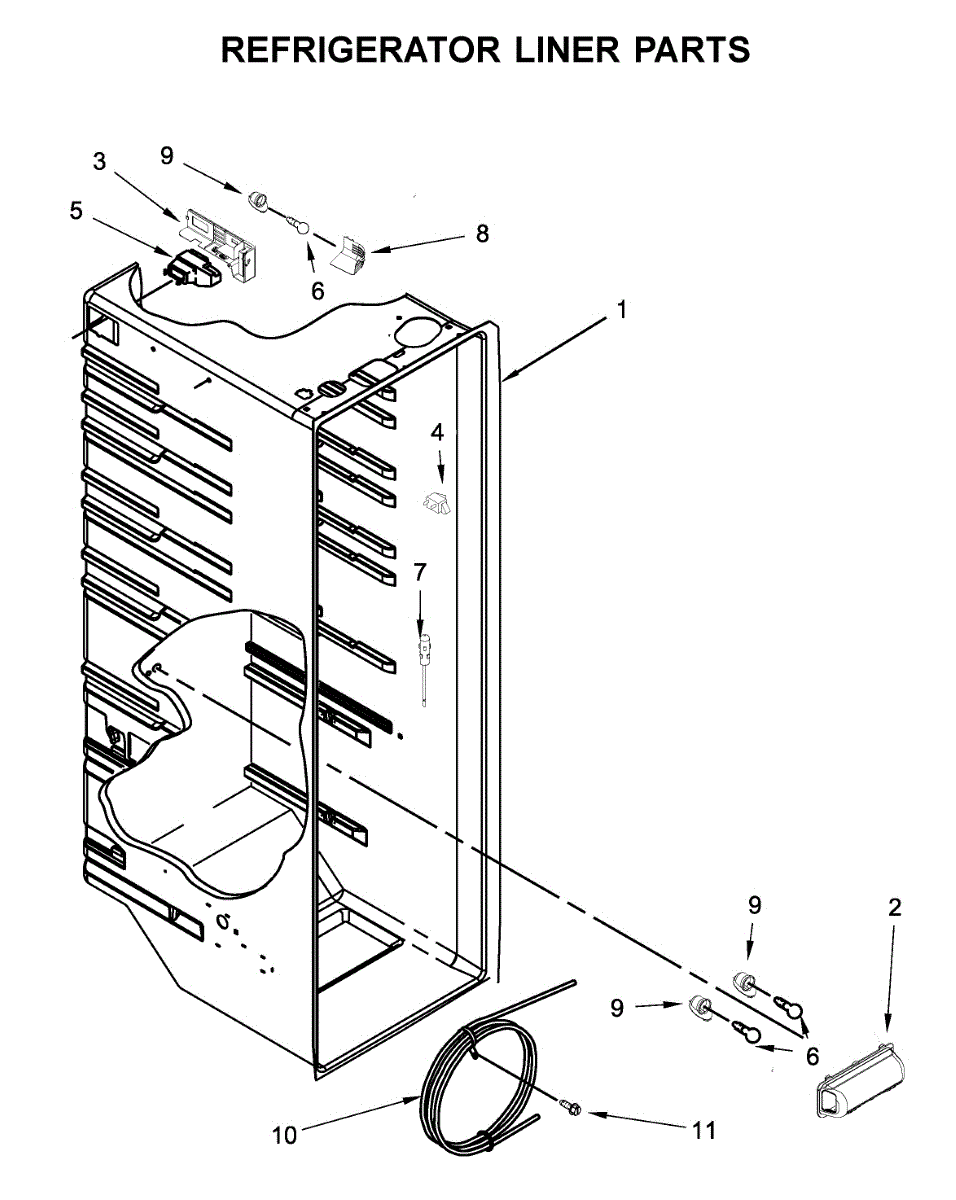

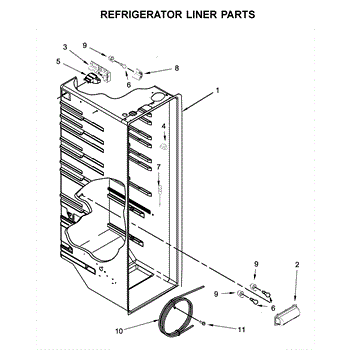

Parts for Whirlpool WRS315SDHM01: Refrigerator Liner Parts

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

The User Control and Display Board is an OEM replacement part for Whirlpool side-by-side refrigerators. It is the circuit board housed inside the control panel that operates and monitors all input and output functions. This includes powering the digital display, control buttons and receiving signals to regulate temperatures, ice & water dispensers, lighting and alarms.

Causes of a bad user control board can include shorts or failures in the circuitry from repeated heating and cooling cycles over time. The board houses sensitive electronics prone to damage from moisture exposure or power surges.

Symptoms of a faulty board are:

• Faulty temperature or moisture controls
• Unresponsive or incorrectly functioning buttons
• Error codes or blinking lights on the display
• Issues with interior fridge lighting

This Whirlpool OEM part is also compatible for use in Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore side-by-side models.

The Diffuser is an OEM part for Whirlpool refrigerators. It is installed inside the refrigerator compartment behind the rear wall and works to evenly distribute cool airflow throughout.

Symptoms of a bad diffuser can include blockages from dust buildup that reduces air circulation, cracks or damage to air passages, or complete failure of air ducts or mounting brackets that secure the diffuser in place.

Causes of a bad diffuser typically include normal accumulation of debris over time, accidental impacts during cleaning that damage plastic air ducts, or failure of mounting hardware due to vibration.

Symptoms of a bad diffuser include:

• Inconsistent or localized temperatures within the refrigerator compartment
• Dust or debris blown from inside refrigerator walls
• Abnormally loud fan noise or vibration coming from the rear

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bulb-Light is an OEM part for Whirlpool refrigerators. It provides lighting within the refrigerator compartments, allowing for easy viewing of contents. The bulb-light joins with compatible sockets or bases designed precisely for its installation within the refrigerator.

Causes of a bad bulb light can include burnout over extended use, accidental damage during cleaning, or faulty wiring that prevents the bulb from receiving power.

Symptoms of a bad Bulb-Light include:

• Dark or no light in refrigerator compartments
• Bulb producing a flickering or intermittent light instead of consistent illumination
• Signs of overheating, melting, or charring around the bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Reservoir is an OEM part for Whirlpool brand bottom-mount refrigerators. Located internally, it collects excess condensation and runoff from refrigerator components.

Causes of a bad reservoir can include cracks forming over time from the impact of falling debris or damage, as well as mineral scale deposits constricting drain openings.

Symptoms of a bad reservoir include:

• Standing water or flooding in the bottom of the refrigerator
• Leaks or drips appearing around refrigerator connections
• Poor drainage and disposal of condensate waters
• Musty odors developing from excess moist environments

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore refrigeration systems.

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit
