Kitchenaid Refrigerator KSRU25FKWH01 Leaking

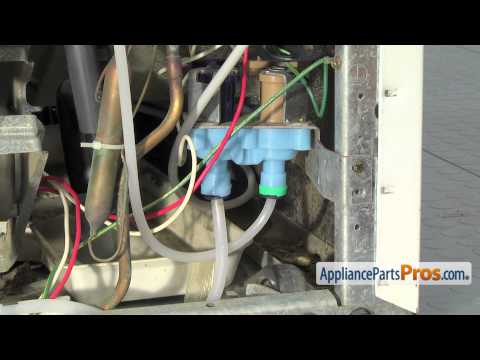

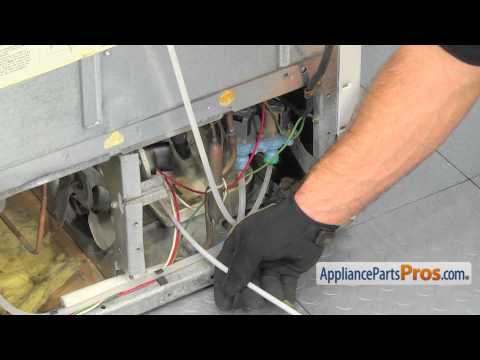

The Water Inlet Valve is an OEM replacement part for Whirlpool refrigerators. It regulates the supply of water to the ice maker and water dispenser features. Properly functioning valves are essential for reliably producing ice and dispensing filtered water.

Symptoms of a faulty inlet valve include:

• Ice maker or dispenser not working properly
• Water leaking or spraying from the supply line connections
• Irregular water pressure when dispensing

Causes can involve mineral buildup overtime inhibiting flow control or a motor malfunctioning to switch the valve on and off.

This replacement valve is also compatible with brands like Maytag, KitchenAid, and Jenn-Air.

Note: If your original valve assembly had an additional connector bracket, the factory no longer includes that with the valve. The connector bracket can be ordered separately by ordering part# WPW10445062.

The Water Filter Housing is an OEM part for Whirlpool refrigerators. It is designed to encase and support the water filter, ensuring it remains securely in place and functions effectively to filter out contaminants from the refrigerator’s water supply.

Symptoms of a bad Water Filter Housing include:

• Leaking water around the filter area.
• Difficulty in installing or removing the water filter.
• Unfiltered water bypassing the filter due to cracks or breaks in the housing.

Causes of a bad water filter housing can include cracking due to material fatigue, damage from improper filter installation or removal, or wear and tear from frequent filter changes.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Filter Inlet Water Tube Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary tubing and fittings to ensure a proper water supply to the refrigerator's filtration system. The inlet tube starts out as 1/4" tubing but transitions to a 5/16" diameter.

You should replace the filter inlet water tube kit if it becomes damaged or clogged. Common causes of issues include mineral buildup from hard water, wear and tear over time, or accidental damage during maintenance or installation. A faulty water tube can result in reduced water flow or leaks.

Symptoms of a bad filter inlet water tube include:

• Reduced water flow to the ice maker or water dispenser
• Leaks or water puddles near the refrigerator
• Ice maker not producing ice or producing ice slowly
• Unusual tastes or odors in the water or ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

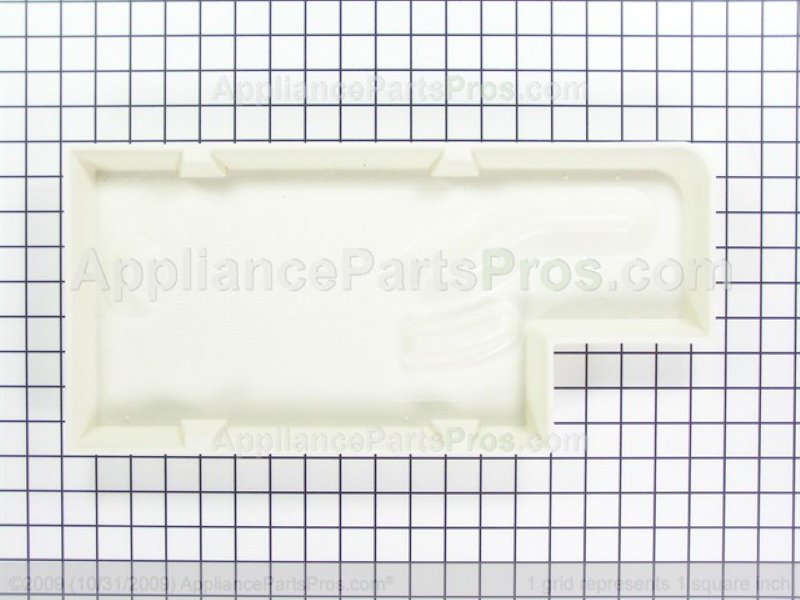

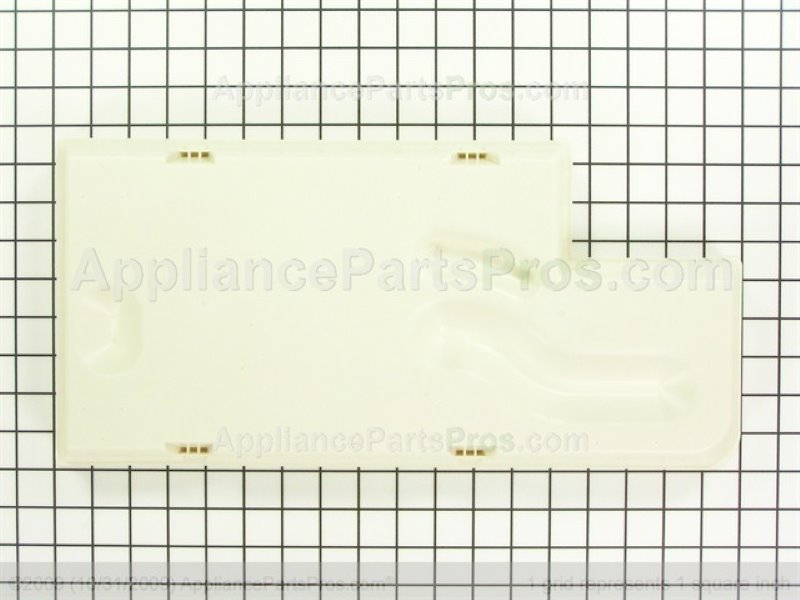

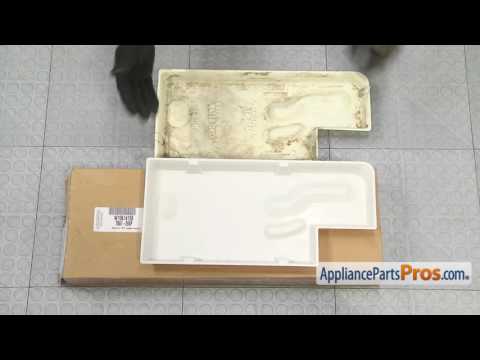

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

The Dispenser Water Tube Kit is an OEM part for Whirlpool refrigerators, designed to replace or repair the water line that connects to the refrigerator's water dispenser.

Causes of these symptoms can vary from normal wear and tear, mineral buildup from hard water leading to blockages or damage, or accidental damage during cleaning or moving of the refrigerator.

Symptoms of needing the Dispenser Water Tube Kit include:

• Leakage or dripping from the water dispenser area
• A decrease in water flow or no water flow to the dispenser or ice maker
• Noticeable damage or kinks in the existing water tube that restrict water flow

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

The Dispenser Lever Retainer is an OEM part for Whirlpool refrigerators. It secures the dispenser lever, which allows for the proper dispensing of water or ice when activated.

Causes of a bad dispenser lever retainer can include physical damage from repeated use, breakage due to accidental impact, or general wear and tear over time.

Symptoms of a bad dispenser lever retainer include:

• The dispenser lever feeling loose or wobbly
• Difficulty in dispensing water or ice
• The lever not returning to its original position after use
• Unusual noises when using the dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir is an OEM part for Whirlpool refrigerators. It stores and chills water before it is dispensed through the refrigerator's water dispenser. This component ensures that you have a steady supply of cold water available directly from your fridge.

Common causes of a bad water reservoir include cracks or leaks from regular use, exposure to extreme temperatures, or blockages from mineral deposits.

Symptoms of a bad water reservoir include:

• Water leaks inside the refrigerator
• The water dispenser not dispensing properly
• Unusual tastes or odors in the water
• Visible cracks or damage to the reservoir

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 5/16 to 1/4. Universal John Guess Push On

The Dispenser Door Pin Kit is an OEM part for Whirlpool refrigerators. This kit includes the pins that secure the dispenser door, allowing it to open and close smoothly when dispensing ice or water.

Causes of a bad dispenser door pin kit can include normal wear and tear, breakage from frequent use, or damage due to mishandling.

Symptoms of a bad dispenser door pin kit include:

• The dispenser door not opening or closing properly
• Leaks or drips from the dispenser area
• Loose or misaligned dispenser door
• Difficulty in dispensing ice or water

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
