Lg Washer WM0001HTM Leaking

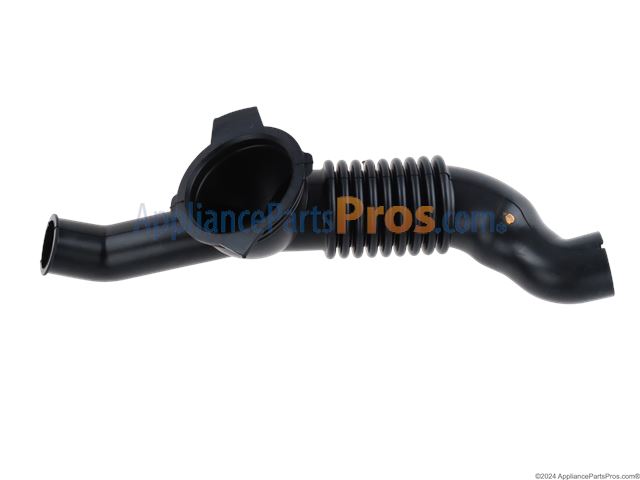

The Tub to Pump Hose is an OEM replacement part for LG top-load washing machines. This hose safely transports water between the wash tub and drain pump. The hose measures 13 inches in length.

Causes of failure relate to constant flexing under water pressure strains that accumulate over years of usage. Excess minerals in hard water areas promote accelerated breakdown of flexible PVC material.

Symptoms of a cracked or leaking tub to pump hose include:

• Water not draining or taking an abnormally long time
• Water continually accumulating inside the machine cabinet
• Error codes related to drainage issues displayed
• Puddles forming near or under the back of the washer

This genuine LG hose is also compatible with select Sears/Kenmore units as well.

The Water Inlet Valve Assembly is an OEM replacement part for LG washing machines, designed to control the flow of water into the laundry tub. This part is responsible for opening and closing to allow water into the wash drum at the appropriate times during the wash cycle, providing the correct water level and temperature.

Causes of a bad Water Inlet Valve Assembly can include mineral deposits blocking the valve, electrical failure preventing the valve from opening or closing properly, or physical damage to the valve mechanism itself.

Symptoms of a bad Water Inlet Valve Assembly include:

• Inadequate filling of the washer drum
• Water entering the drum when the washer is off
• Unusual noises during the fill cycle
• Water that is too hot or too cold, indicating a failure in valve operation that controls temperature

This OEM LG part can also be used on Kenmore/Sears appliances.

The Gasket is an OEM part for LG washing machines, designed to ensure a watertight seal between the door and the washing machine's drum. This door gasket prevents water leaks during operation. Made from flexible, durable rubber, it conforms to the door and frame, creating a secure seal that keeps water contained within the washer during cycles.

Causes for a Gasket to fail include normal wear and tear from frequent use, chemical degradation from laundry detergents and cleaners, and buildup of residue that can cause the material to deteriorate or lose its elasticity.

Symptoms of a bad Gasket include:

• Water leaking from the front of the washing machine
• Visible signs of wear, such as cracks, tears, or holes in the gasket.
• The presence of mold or mildew on the gasket
• Difficulty closing the washer door, or the door not sealing properly.

This OEM LG part can also be used on Kenmore/Sears appliances.

NOTE: This gasket has a drain hole. For a gasket without a drain hole, order 4986ER0004B.

The Dispenser Hose is an OEM part for LG washing machines. It connects the detergent dispenser to the washer tub, allowing detergent and other cleaning agents to be delivered effectively during the wash cycle.

Causes of a bad dispenser hose can include regular wear and tear, damage from harsh detergents, or physical damage due to kinks, pinches, or impact. Over time, the hose can become brittle, cracked, or clogged, affecting its ability to function properly.

Symptoms of a bad dispenser hose include:

• Leaks or drips from the hose area
• Detergent not dispensing correctly or at all
• Water pooling around the washer
• Visible cracks or splits in the hose

This OEM LG part is also compatible with Sears/Kenmore models.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

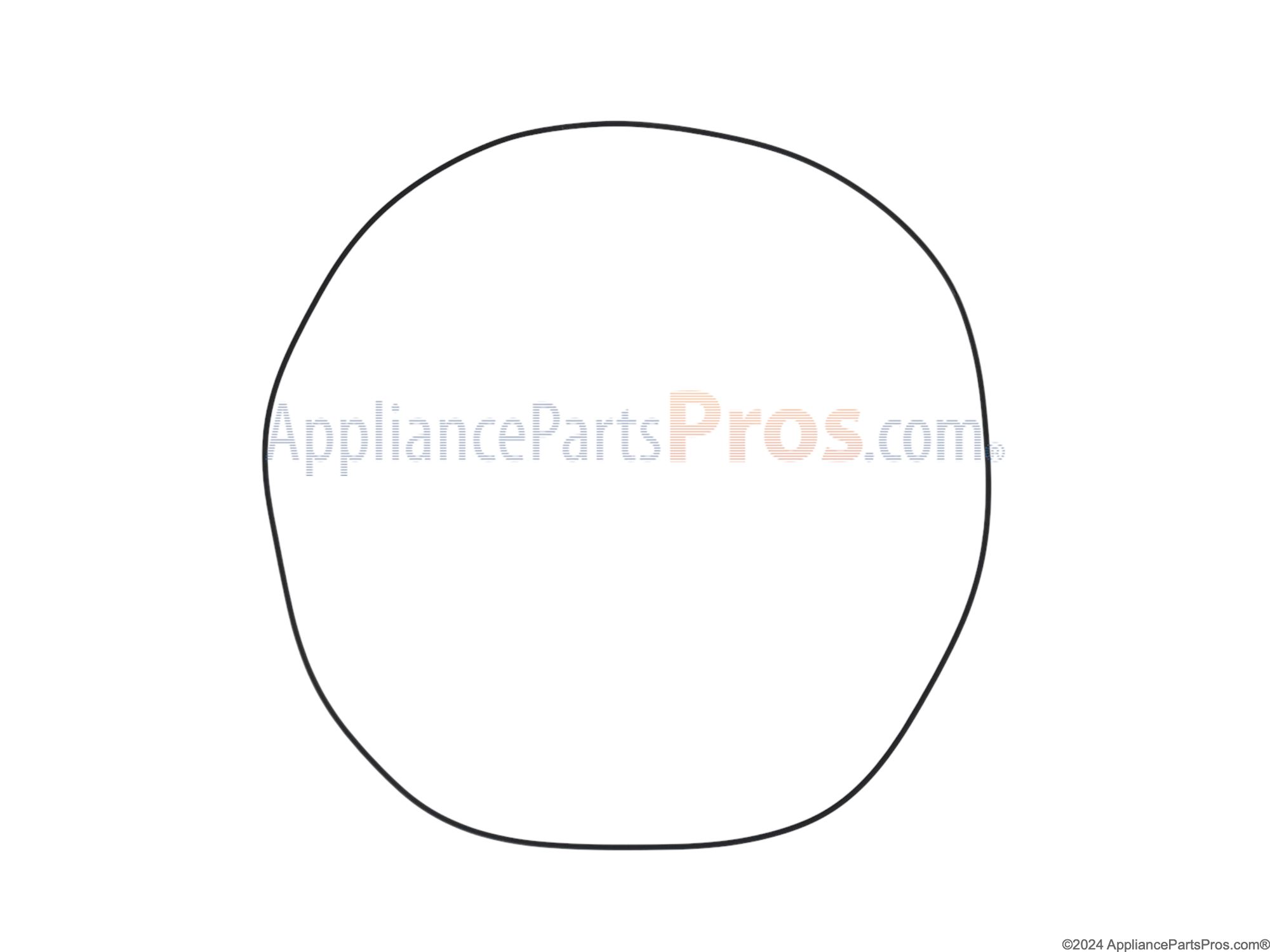

The Tub Seal Gasket is an OEM part for LG washing machines. It creates a tight seal between the inner and outer tubs during the wash cycle, preventing leaks and containing water. The gasket helps prevent water from escaping the tub.

Causes of a bad gasket can include wear and tear from repeated use over time, exposure to cleaning chemicals or extreme temperatures, or damage from handling heavy loads.

Symptoms of a bad gasket include:

• Water leaking from the outer tub during operation
• Excessive moisture in areas surrounding the washer
• The tub making creaking or grinding noises
• Decreased washing or spinning performance

This OEM LG part can also be used on Kenmore/Sears appliances.

The Washer Gasket is an OEM replacement part for LG washing machines. It is a flexible seal that lines the opening of the washer tub, creating an airtight barrier to prevent water leaks and ensure proper containment during the wash and spin cycles.

Symptoms of a bad washer gasket include:

• Water leaking from the front of the washing machine
• Excessive moisture or condensation buildup around the gasket area
• Difficulty in properly closing and latching the washer door due to a worn or damaged gasket

Causes of a washer gasket failure can range from general wear and tear over time, to physical damage from being pinched or cracked, to improper installation or alignment issues.

This OEM LG part is also compatible with Sears/Kenmore models.

The Outer Door Gasket Clamp is an OEM part for LG washing machines. It is designed to secure the outer door gasket, ensuring a tight seal between the door and the drum. This helps prevent water leaks during the wash cycle and maintains the efficiency of the washing machine.

Causes of a bad outer door gasket clamp can include regular wear and tear, damage from heavy use, or corrosion over time. A compromised clamp can lead to a loose gasket, resulting in water leaks and reduced washing machine performance.

Symptoms of a bad Outer Door Gasket Clamp include:

• Water leaking from the door area during wash cycles
• A loose or misaligned door gasket
• Difficulty in securing the door properly
• Visible rust or damage on the clamp

This OEM LG part is also compatible with Sears/Kenmore.

The Pump Filter Assembly is an OEM replacement part for LG washing machines. It is a crucial component that filters out lint, debris, and other particles from the wash water, preventing them from recirculating and damaging the pump or other internal components.

Symptoms of a need to replace the pump filter assembly:

• Clogging or blockages, leading to poor drainage or water not draining completely
• Excessive buildup of lint, hair, or other debris in the filter screen
• Leaks or water seeping from the filter housing or surrounding area
•  Unusual noises or vibrations during the drain or spin cycles, indicating a potential blockage

Causes of a faulty pump filter assembly can include excessive lint accumulation, damage to the filter screen or housing due to impact or mishandling, and general wear and tear over time.

This OEM LG part is also compatible with Sears/Kenmore washing machines.

The Inner Door Gasket Clamp is an OEM part for LG washing machines. It secures the inner door gasket in place, ensuring a tight seal to prevent water leaks during the wash cycle. This clamp is essential for maintaining the efficiency and reliability of the washing machine by keeping the door gasket firmly in position.

Over time, wear and tear, exposure to water and detergent, or accidental mishandling can compromise the integrity of the clamp, leading to potential leaks.

Symptoms of a bad inner door gasket clamp include:

• Water leaking from the door area
• The door gasket not staying securely in place
•  Visible damage or corrosion on the clamp

This OEM LG part is also compatible with Sears/Kenmore.

The Door Boot Seal is an OEM part for for 27" LG front load washers. It provides a watertight seal between the washer door and the drum, preventing water from leaking out during the wash and spin cycles. This seal also helps to keep the interior of the washer clean and free from mold and mildew.

The door boot seal can fail due to various reasons such as wear and tear from regular use, exposure to harsh detergents, or physical damage from foreign objects. Mold and mildew buildup can also compromise the integrity of the seal over time.

Symptoms of a bad door boot seal include:

• Water leaking from the front of the washer
• Visible tears, cracks, or deformation in the seal
• Mold or mildew buildup on the seal
• Unpleasant odors coming from the washer

This OEM LG part is also compatible with Sears/Kenmore washing machines.

Note: For the door boot seal without a drain port, use part number 4986ER0004C.

This inlet hose routes incoming water from the washer's fill valve into the machine to support proper filling. Replace a cracked or leaking hose to stop drips, prevent water damage, and restore reliable fill performance.

• Directs incoming water from the fill valve to the dispenser/tub during wash cycles
• Maintains a sealed path to prevent internal or external leaks
• Helps the washer reach proper fill levels and timing
• Common symptoms of failure: water on the floor, leaks during fill, visible cracks or bulges, long/no fill or IE error

• Unplug the washer and turn off both hot and cold water supplies
• Keep towels or a pan handy; relieve residual water pressure before disconnecting
• Note the original routing; fully seat the hose on fittings and secure with existing clamps
• Restore water and power, then run a quick fill to check for leaks

With hole. For door boot seal without hole use part number 4986ER0001B.
