Whirlpool Washer GHW9100LW2 Leaking

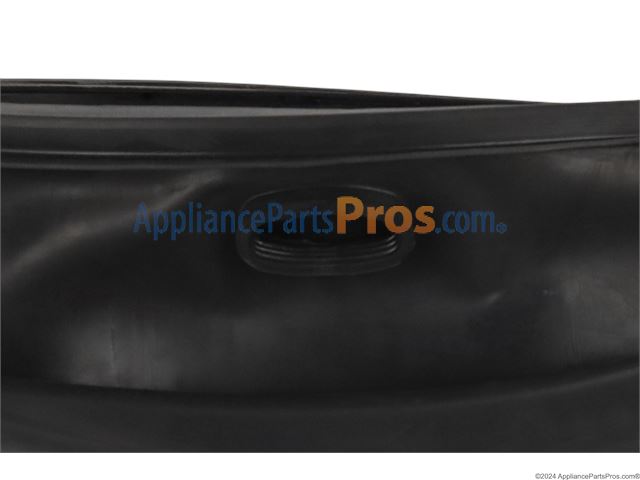

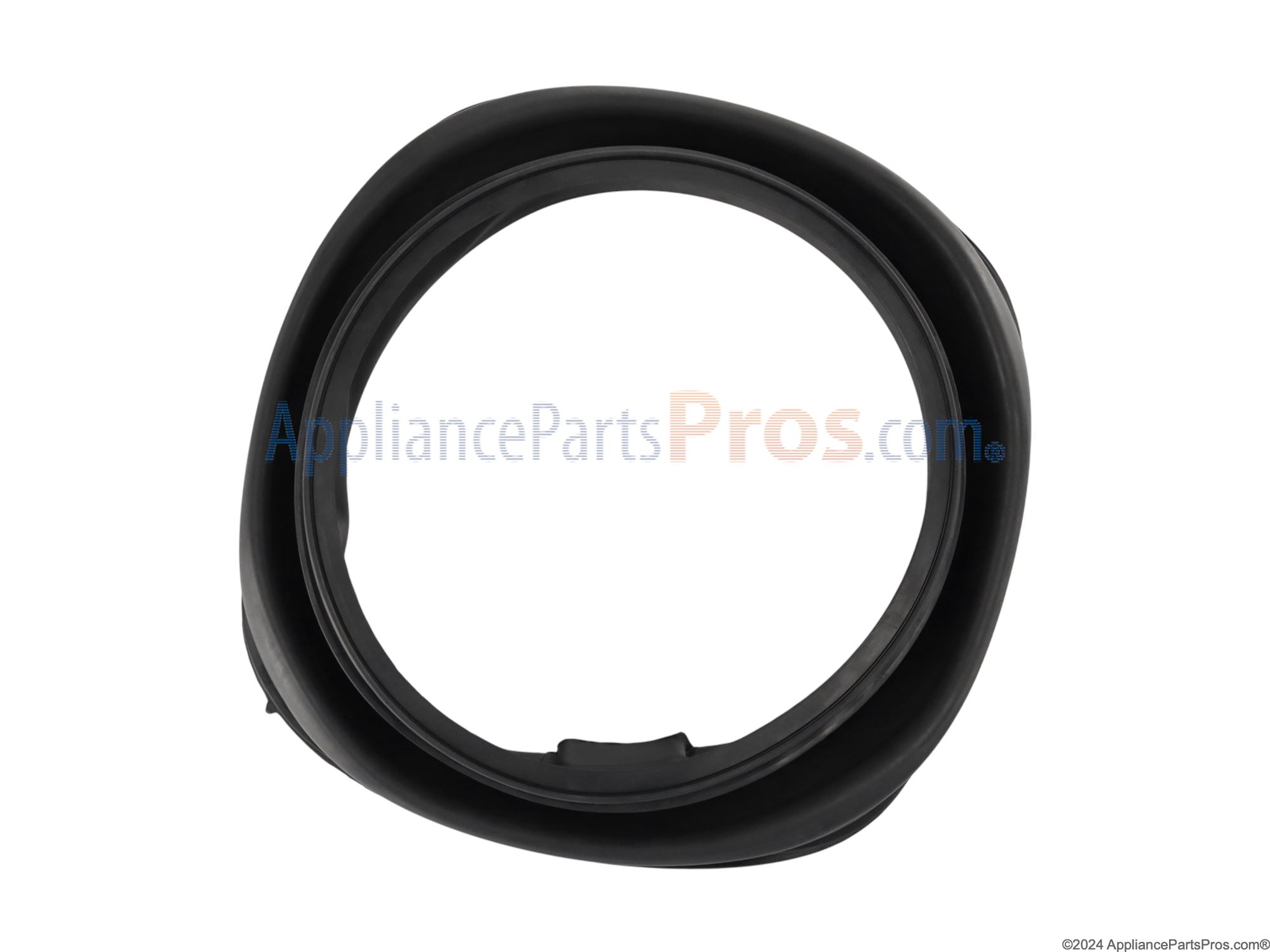

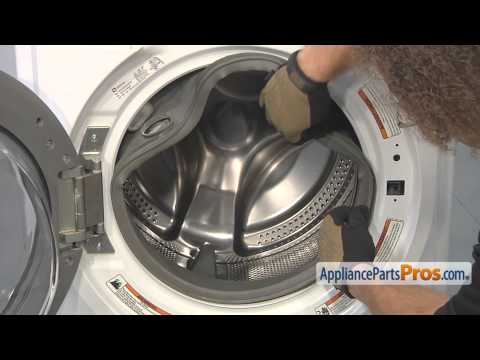

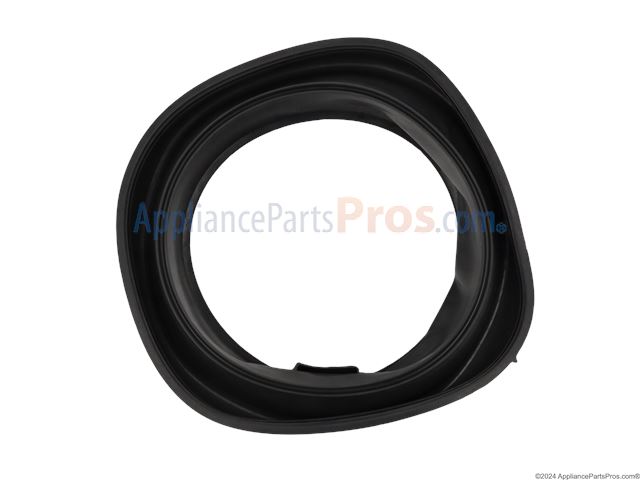

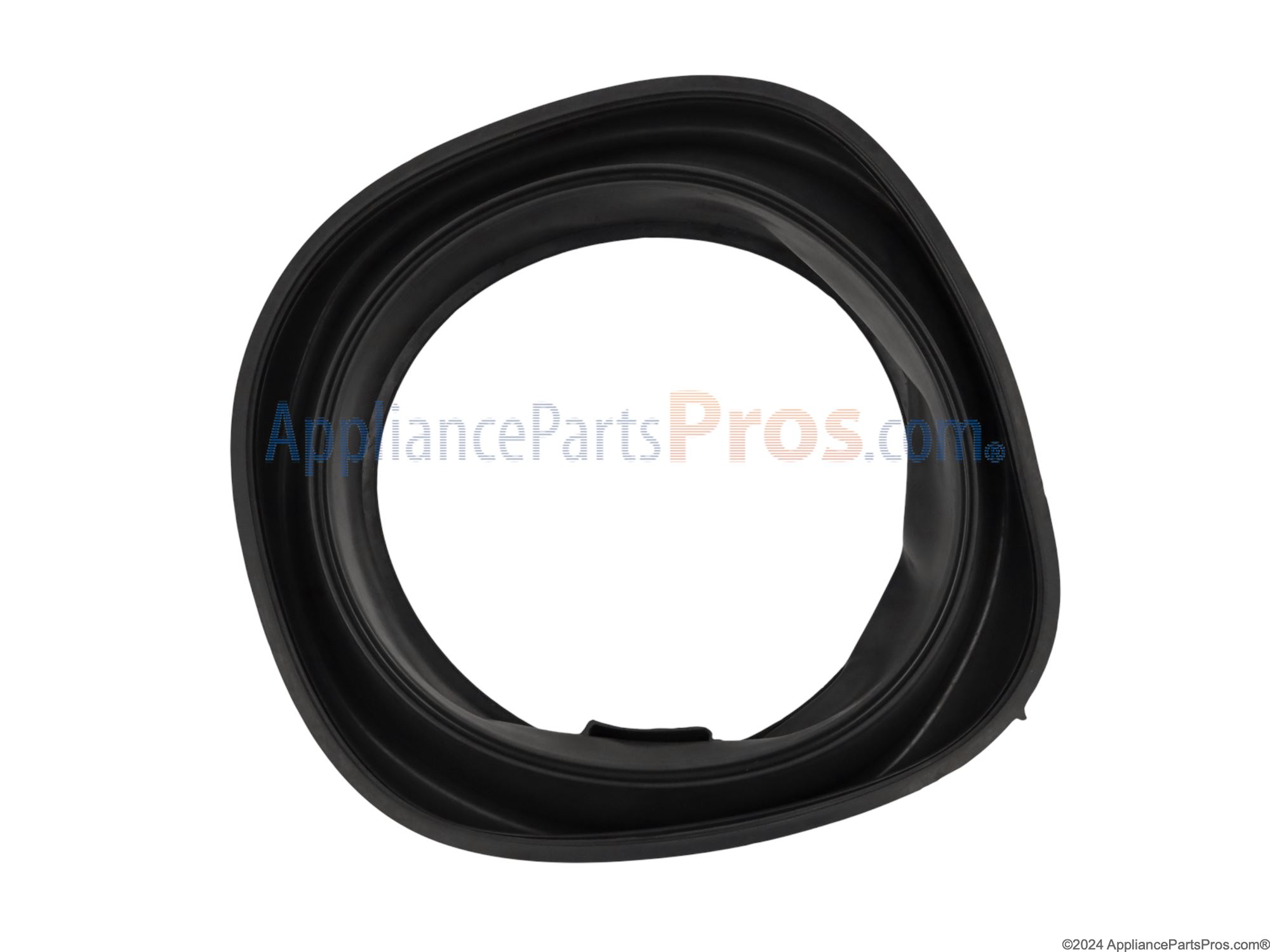

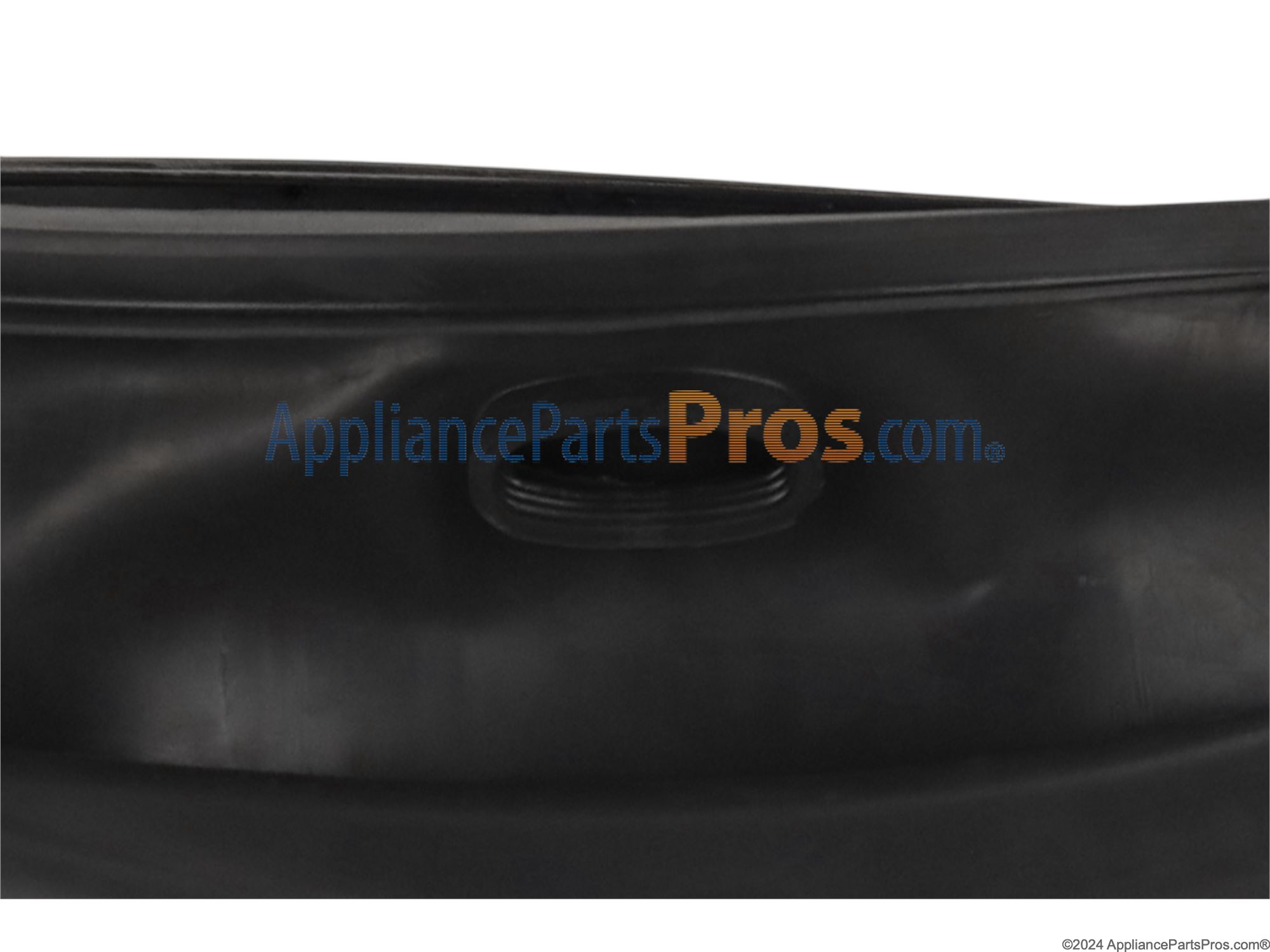

The Bellow Tub Seal is an OEM part for Whirlpool washing machines. This part acts as a flexible seal between the door and the drum of front-loading washers, preventing water from leaking out during operation. Note: The clamps do not come with the seal. For clamps order W10902779 and WP8182210

Causes of damage to the bellow tub seal often include regular wear and tear from frequent use, the buildup of detergents and chemicals that can degrade the material over time, and physical damage from overloading or from objects caught between the door and the drum.

Symptoms of a bad Bellow Tub Seal include:

• Visible cracks, holes, or tears in the bellow
• The accumulation of mold or mildew
• Water leakage from the front of the machine
• Clothes getting caught or snagged in the damaged areas of the bellow

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

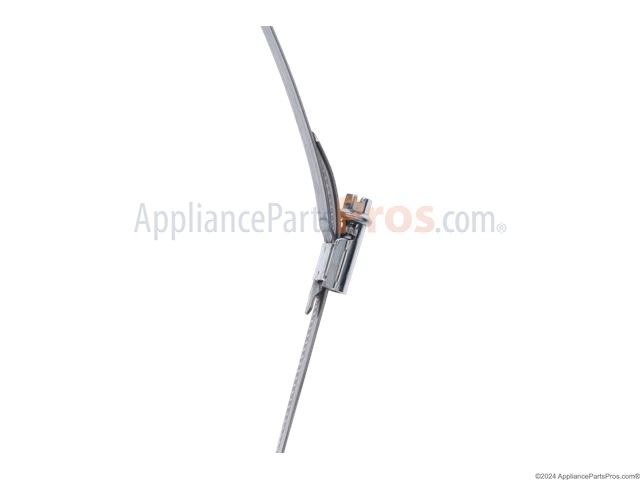

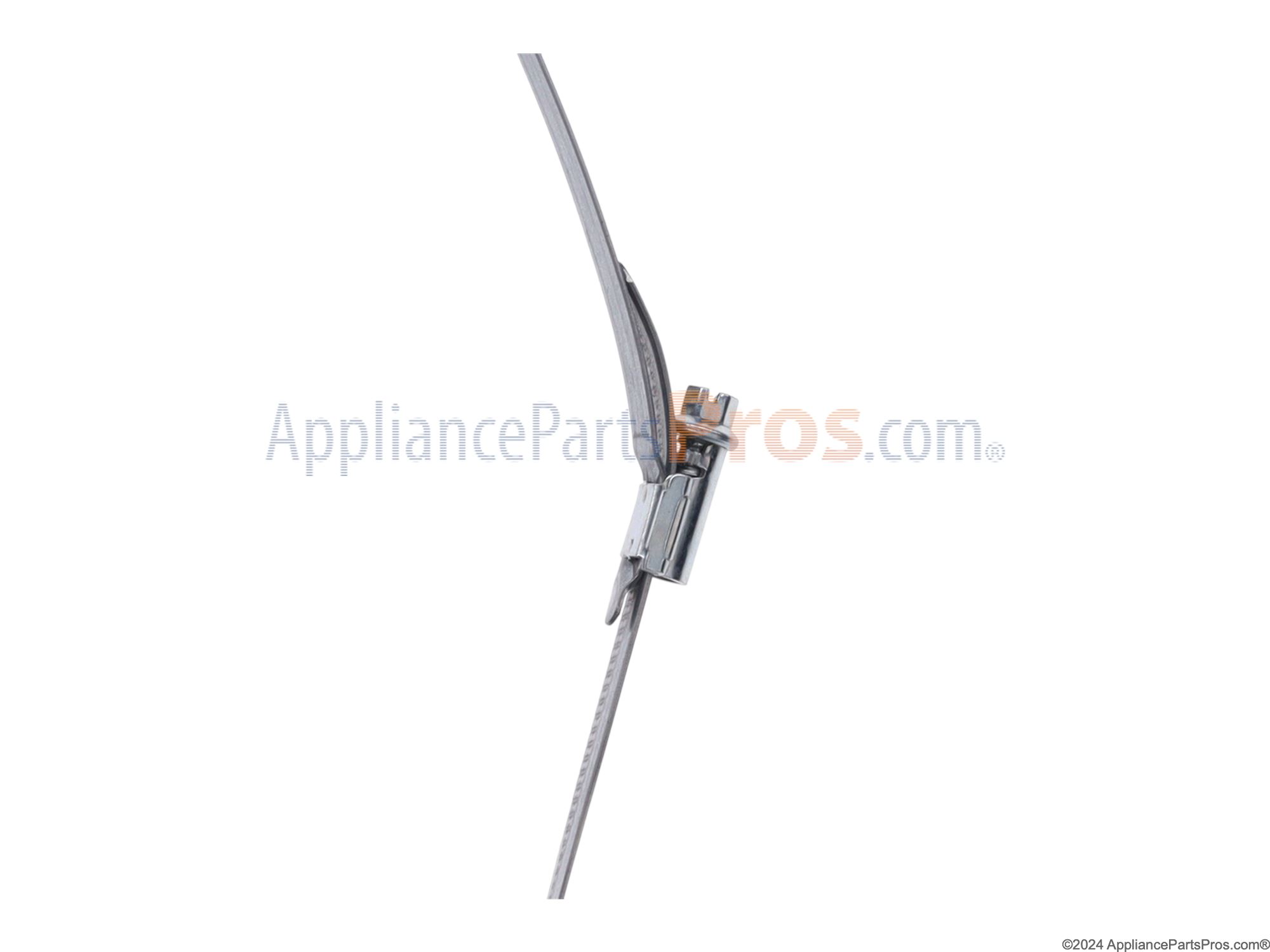

The Bellow Seal Clamp Ring is an OEM part for Whirlpool washing machines. This ring secures the bellow seal, which is a flexible gasket that provides a watertight seal between the washer door and the drum.

You should replace the bellow seal clamp ring if it becomes damaged or loses its ability to hold the seal tightly. This can occur due to wear and tear, frequent door use, or improper installation. A compromised clamp ring can lead to leaks and inefficient washer operation.

Symptoms of a bad bellow seal clamp ring include:

• Water leaking from the door area during washing
• The bellow seal coming loose or out of place
• Difficulty in keeping the washer door sealed properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Boot Seal Retaining Ring is an OEM part for Whirlpool washing machines. This ring ensures the boot seal is securely fastened to the washing machine's door assembly. The boot seal retaining ring plays a key role in preventing water leaks by maintaining a tight seal between the door and the drum of the machine.

Over time, the retaining ring can lose its tension, become bent, or suffer from corrosion, leading to a compromised seal.

Symptoms of a bad Boot Seal Retaining Ring include:

• Visible water leakage around the washer door
• Difficulty closing the washer door securely
• A visible gap or misalignment between the boot seal and the door frame
• The boot seal coming loose or falling off

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Inlet Valve is an OEM part for Whirlpool washing machines. This valve is critical for controlling the flow of water into the washing machine, ensuring that the right amount of water is supplied for various washing cycles. It consists of solenoids that open and close to allow hot and cold water to enter the wash tub at the appropriate times, according to the selected wash settings.

Symptoms of a failing Inlet Valve include:

• The washing machine not filling with water at the start of a cycle
• Water entering the machine slowly or intermittently
• The machine overfilling or underfilling
• Unusual noises coming from the valve area during the filling stage
• Leakage around the valve

Causes of a bad inlet valve can include mineral deposits from hard water which can clog or block the valve, wear and tear on the solenoids over time leading to failure to open or close properly, and electrical failures that affect the operation of the solenoids.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose is an OEM part for Whirlpool washing machines. This hose is responsible for carrying water to and from the washing machine during the wash and rinse cycles. It is designed to withstand the pressure and temperature changes associated with the washing process, ensuring a reliable and leak-free connection.  IF WASHER HAS AN ECO BALL, THE BALL IS NOT NEEDED AND MUST BE DISCARDED WHEN THE NEW HOSE IS INSTALLED.

Over time, hoses can degrade due to wear and tear, exposure to harsh water conditions, or repeated bending and flexing. Additionally, damage from accidental mishandling or improper installation can also cause hose failure.

Symptoms of a bad hose include:

• Leaks or puddles of water around the washing machine
• Reduced water flow or pressure
• Visible cracks, bulges, or wear on the hose
• Error codes related to water supply issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Drain Hose is an OEM replacement part for Whirlpool washing machines. Replacements are typically needed due to compression fatigue caused by years of absorbing hydraulic pounding. Additionally, mineral buildup within hoses can reduce drainage efficiency over time.

Symptoms involve:

• Remaining water pockets not fully evacuating after rinses
• Premature alerts about blocked pumps requiring inspection
• Damp loading areas traced to splits along pressure-prone locations

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

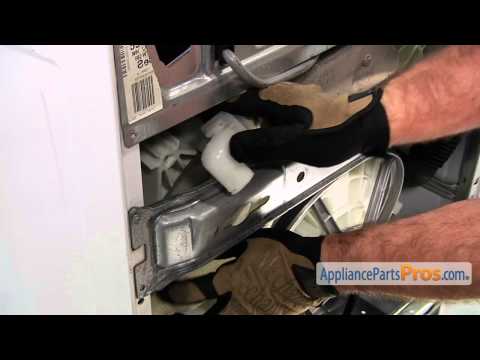

The Washer Drain Pump Assembly is an OEM part for Whirlpool washing machines. This assembly is essential for the washer's ability to drain water out of the drum after the wash and rinse cycles, ensuring clothes are properly spun and not left soaking wet.

Causes of a malfunctioning washer drain pump assembly can include blockages from small items or debris, such as coins, socks, or lint, that accidentally make their way into the pump.

Symptoms of a bad Washer Drain Pump Assembly include:

• Water not draining out of the washer, leaving clothes wet
• Unusual noises coming from the pump area, indicating a blockage or damage
• The washer stopping mid-cycle due to inability to drain
• Error codes displayed on the washer related to draining issues

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This replacement seal restores a watertight connection in your washer to help prevent leaks and moisture damage. It replaces a worn, cracked, or flattened original seal so components stay tightly sealed during use.

• Creates a compression barrier between mating parts to contain wash water
• Helps stop drips and seepage during fill, wash, or drain
• Can address water leaks, moisture under the unit, or musty odors from trapped water
• Replaces seals that are brittle, torn, or misshapen

• Disconnect power and turn off water supply before servicing
• Access the seal location per your model's service information and note orientation
• Clean grooves and mating surfaces; seat the new seal evenly (a light film of water or mild soap can aid installation)
• Reassemble and run a short cycle to check for leaks

The Water Inlet Flow Meter is an OEM part for Whirlpool washing machines. It is responsible for monitoring and regulating the flow of water entering the washing machine during the fill cycle, ensuring the correct amount of water is added for efficient and effective cleaning.

Causes of a faulty Water Inlet Flow Meter include sediment buildup, physical damage, or electrical issues with the meter's sensors or connections.

Symptoms of a bad Water Inlet Flow Meter include:

• Incorrect water levels in the wash tub
• Washing machine not filling properly with water
• Error codes related to water inlet flow or water level issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Front load washer door hinge.

Extends the drain hose approximately 4 feet. You must also order a drain hose connector kit: 285835.

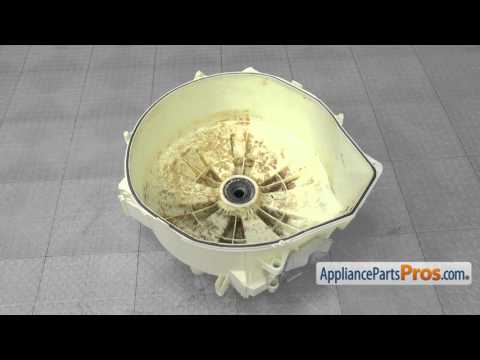

The Tub Gasket is an OEM replacement part for Whirlpool washing machines. This gasket forms a crucial seal between the washer tub and the cabinet, both preventing water leaks and reducing noise and vibration.

Causes of a bad tub gasket can include cracks, tears, or compression failures due to age, use, or impacts over time. Gaskets can also degrade with chemical exposure.

Symptoms of a bad tub gasket include:

• Water leaks from around the tub and cabinet interface
• Excessive noise or vibration during spin and agitation cycles
• Reduced washer balance resulting in thumping or off-center loads

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
