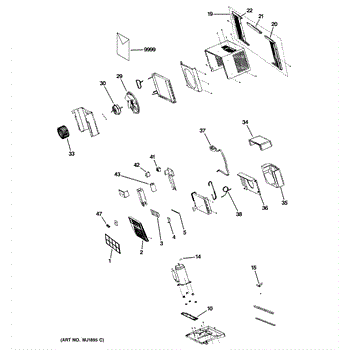

Parts for Ge AEN05LJS1: 01 - Room Air Conditioner Parts

This drainage pan collects and channels condensate and defrost water away from the appliance to help prevent puddling and water damage. Durable, low-profile tray designed to sit under the appliance where water naturally drains. What it does:

• Catches and directs water from defrost or condensate lines to a safe collection area.
• Helps prevent water pooling beneath the appliance that can cause floor damage or staining.
• Can reduce musty odors by keeping standing water contained and easier to remove.
• Useful when visible leaks, puddles, or water dripping under the unit are present.

• Turn off and unplug the appliance before attempting removal or installation.
• Slide the pan into place under the appliance, ensuring proper alignment with drain outlet or mounting points.
• Inspect surrounding seals and drain tubes for damage or clogs while the unit is accessible.
• Handle carefully to avoid contact with sharp sheet-metal edges; wear gloves and eye protection.

This compressor overload is a thermal start protector that helps prevent compressor damage by cutting power if the motor overheats or draws excessive current. Replaces a failed protector to restore reliable compressor start and run behavior. What it does:

• Protects the compressor motor by interrupting power when the motor overheats or draws excessive current
• Commonly linked to symptoms like a humming compressor that won't start, intermittent cooling loss, or a refrigerator that runs then stops
• Works with the compressor's electrical start system to help prevent repeated starts under fault conditions
• Simple replacement can resolve start failures caused by a failed overload protector

• One compressor overload (single start protector as shown)

• Disconnect power to the appliance before accessing or replacing the overload protector
• Handle terminals carefully and ensure secure electrical connections; reinstall in original orientation and mounting
