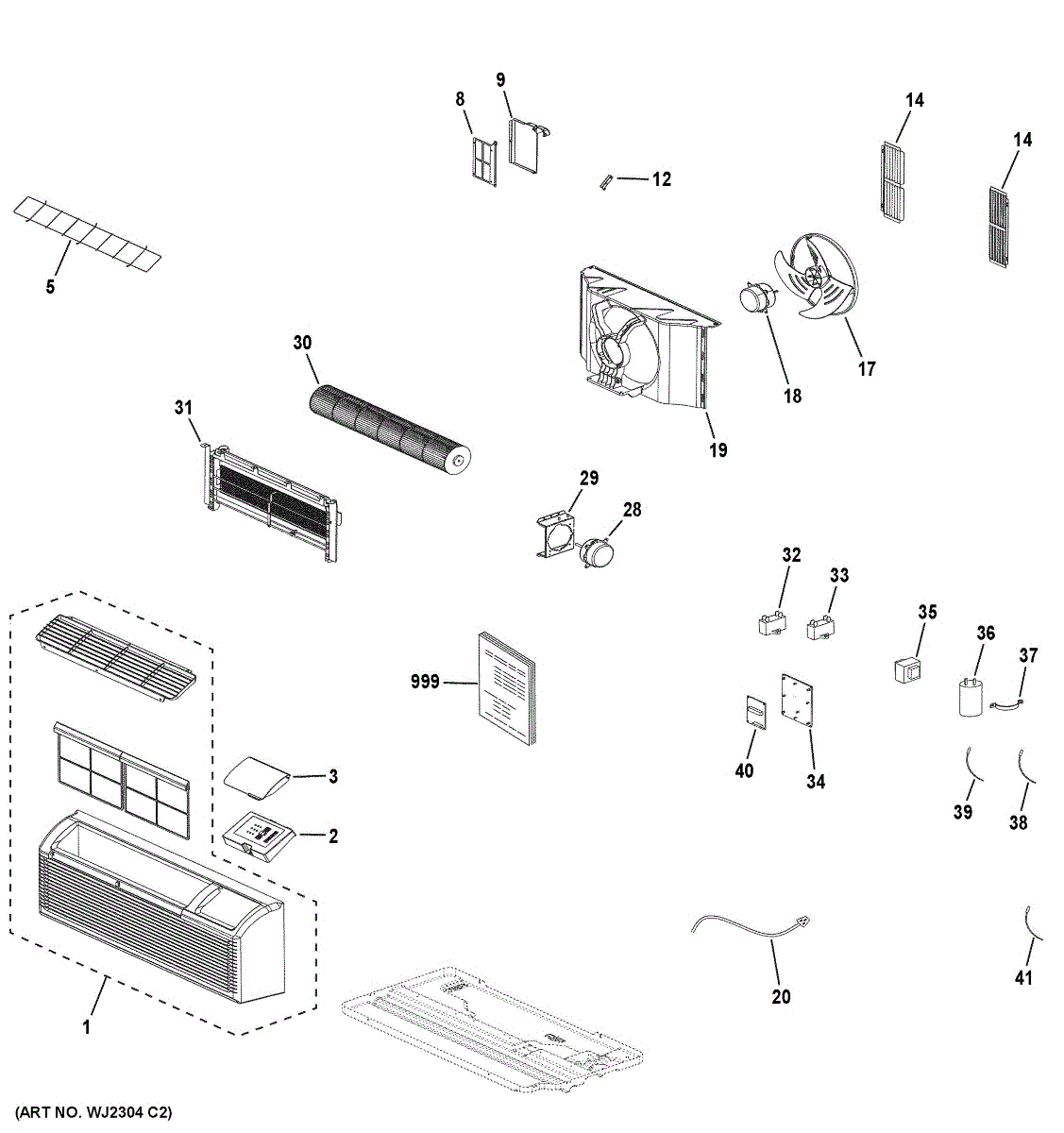

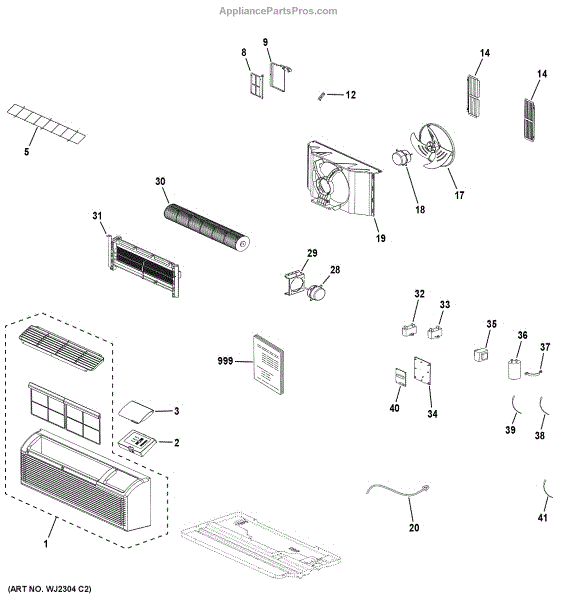

Parts for Hot Point AH11E09D3BK1: Room Air Conditioner Parts

This room front assembly is the room-facing grille/cover for a room air conditioner. It restores a secure fit and clean appearance while helping direct airflow when the original front panel is cracked, loose, or missing.

• Covers and protects the unit's front cabinet and discharge area
• Directs airflow through the front louvers and supports the control/display trim
• Helps reduce vibration and rattling when properly secured
• Typical symptoms: broken or missing grille, damaged louvers, panel won't stay attached, visible cracks/warping

• Unplug the air conditioner before servicing
• Remove any retaining screws, then release locking tabs to lift off the old front
• Align the new panel's tabs, snap it into place, and reinstall screws
• Transfer any reusable hardware or decorative trim from the original part as needed

This vent door filter is a replacement vent screen that helps keep lint, dust and debris from entering the appliance venting pathway, protecting the blower and improving airflow reliability. What it does:

• Screens lint and airborne debris before they reach the vent opening
• Helps maintain proper airflow and reduce buildup in the vent path
• Can reduce recurring lint accumulation on internal components
• Commonly replaced when the filter is torn, clogged or missing

• One vent door filter

• High-level replacement—remove the access panel or door, swap the old filter for the new one, and secure the panel
• Power off and unplug the appliance before servicing
• Inspect surrounding seal and vents for damage; replace any worn components for best performance

This indoor fan motor circulates air through the refrigerator/freezer evaporator to help maintain even cooling and proper airflow. Replacing a failed motor restores normal airflow and helps the unit keep consistent temperatures. What it does:

• Spins the evaporator/indoor fan blade to move cold air through the appliance
• Helps the evaporator defrost and prevents warm spots caused by poor circulation
• Commonly replaces motors that hum, run intermittently, or fail to spin
• Supports normal compressor and temperature performance by maintaining airflow

• Disconnect power to the appliance before starting any repair
• Typical access requires removing interior panels or the evaporator cover—keep screws and clips organized
• Handle the fan blade and motor shaft carefully to avoid damage; ensure proper fan blade seating on reassembly

This replacement fan motor capacitor (3 µF, 450 VAC) helps the appliance's fan motor start and run more reliably, restoring proper airflow and cooling performance. Use when the motor hums, runs intermittently, or the fan won't start. What it does:

• Provides the starting/run charge the fan motor needs to operate smoothly
• Helps prevent motor humming, slow-starting, or intermittent operation
• Supports stable fan speed for effective cooling and airflow
• Reduces strain on the motor when functioning correctly

• One fan motor capacitor (3 µF, 450 VAC)

• Disconnect power before servicing; verify the appliance is unplugged or breaker is off
• Discharge the capacitor before removal to avoid electrical shock
• Note and match wiring orientation and connections; replace with like-for-like specifications
