Samsung DG34-00020A Range Membrane Switch Touch Pad OEM Part

AppliancePartsPros.com diagnosed the problem and recommended the proper part. The fix was easy. All that was required was a phillips head screwdriver, Removed about 12 screws and replaced the membrane.

Installed new memory board ,10 screws peel off old board ,plug memory board ribbon into mother board. Done 10 mins. tops. Natalie at Appliance Parts Pros checked the records for Samsung SE error codes and thought that memory board was bad vs mother board failure . She was right, you can return part if its not the problem. Great service ,good pricing will definitely deal with in future.

Changed out the PCB board still had code then swapped out the button pad and now no more error code.

Replaced the control panel.

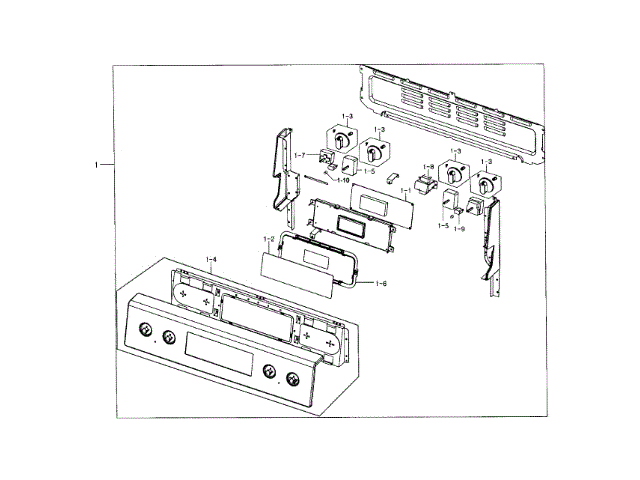

Turn off power to the stove (use either breaker or fuse). Pull stove out from wall to gain access to the back (unplug from outlet). Before removing anything, take pictures and continue to take pictures of each piece before removing any screws, so you have a record of the assembly sequence and screw positions!! Keep screws with each piece that is removed. Remove metal panel on back of stove behind membrane pad. Remove ribbon connector (pull retaining ring out about 2mm to release). Remove plastic holder that circuit board is in (Make note of screw and ground wire positions). (do not remove any other wires. Just let the circuit board hang by the other wires). Remove stamped metal piece that membrane is attached to (Make note of screw positions). Peel membrane pad from stamped metal piece (Be careful!! Metal is sharp!!). The membrane is attached with a 2-sided adhesive tape, so any remaining adhesive will need to be removed with Acetone or other adhesive remover (Wear gloves!! It takes some work to remove!!). Peel backing off of the new membrane pad and reverse process to reassemble.
