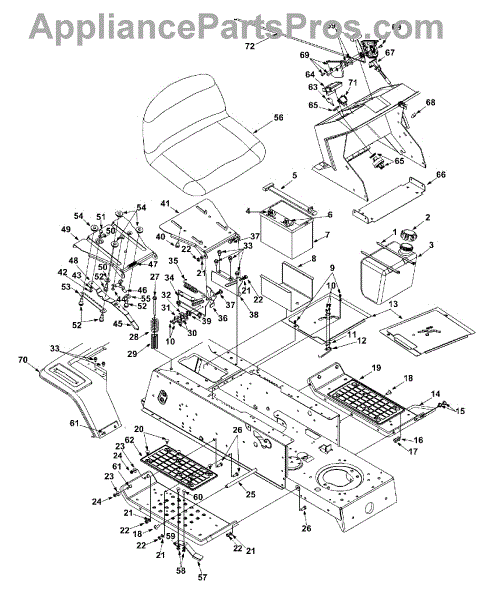

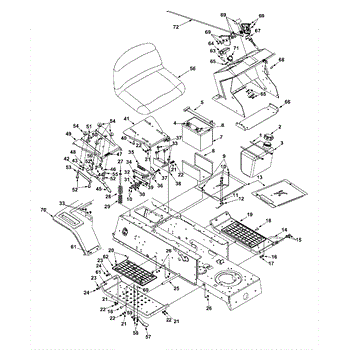

Parts for Wizard 13AH662F098 / 2002: Seat, Fuel Tank, Battery, Frame Parts

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This screw is a genuine MTD part. A screw can be used as a replacement part in lawn mowers, snowblowers, tillers, chainsaws, log splitters, and wood chippers. The purpose of this genuine OEM part is to rotate and pierce into one or more components within the internal or external machinery of the appliance so that the stability of those components is maintained throughout general use of the appliance.The screw in an lawn equipment might need to be replaced if it has been lost, misplaced, or has suffered enough damage as to loosen the components that it is supposed to secure.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This screw is compatible with equipment manufactured by MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This switch spring is part of the safety system used in riding lawnmowers. This spring is located underneath the seat of all riding lawn mowers and lawn tractors. The spring is attached to two electrical contacts and is compressed when the rider is sitting on the seat. If the machine is in motion and the driver stands up or gets off the machine, the switch interrupts the power and stops the mower from moving. If the spring fails to work, it should be replaced in order to operate the mower safely. Over time and due to normal wear and tear, the spring may become warped and need to be replaced. Park the mower on a flat surface and remove the spark plug so that the lawnmower is not powered on. Look underneath the seat and locate the kill switch with a two-wire plug on one end and a round plunger button on top. Grip the wire plugs and pull them away from the switch spring. Install the new switch spring. Reattach the wires and reinstall the spark plugs. This switch spring is an authentic OEM replacement part sourced directly from the manufacturer. It is a silver metal part that is designed for use in lawnmowers manufactured by MTD, Ryobi, Bolens, Yard-Man, Troy-Bilt, Husky, and Cub Cadet.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This replacement part is a ratchet fastener, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by Husqvarna. This ratchet fastener is found on most lawn mowers and is similar to a screw in that it helps keep parts of the appliance in place and secure.A new fastener might be needed if the current ones are damaged or missing. It is common for these types of fasteners to become stripped over time after years of normal wear and tear. The repair for this part should be fairly easy and will only require a screwdriver and possibly pliers if there is a fastener stuck. If there are parts of the lawn mower that are loose or falling off, a new fastener might be needed. This small part is sold individually and is a genuine OEM replacement part. Be sure to purchase the correct amount as some appliances require more than one.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This actuator spring is a genuine MTD part, sold individually. This actuator spring can be used as a replacement part in a lawn mower. The purpose of the actuator spring, also known as a seat spring switch, in a lawn mower is to provide a plate upon which the seat switch can conduct its electrical current while being held stably in place.If the actuator spring slides out of place and cannot be reinstalled or if it is bent, broken, dented, or worn beyond repair, it should be removed and replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This actuator spring is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

This replacement part is an insulator plate. It is a genuine replacement part made by MTD. This small part is important to the overall operation of many different machines. It helps to insulate other parts inside the machine as well as allow them space to operate. A new insulator plate might be needed if the current one is missing or damaged in any way including being dented, cracked, chipped, or bent. This can be due to normal wear and tear as it is common that parts become broken overtime. Be sure to refer to the correct owner's manual before attempting to replace this part. This part is a genuine OEM replacement part. This insulator plate is sold individually and is sourced directly from the manufacturer to ensure a proper fit and long-lasting use.

This genuine OEM replacement bracket stop seat is for riding lawn mowers or tractors. The part is located underneath the seat on riding mowers or tractors. Its purpose is to provide a safety shut off function when the rider leaves the seat while the blade is engaged. Over time, constant use of the mower can cause wear on the bracket, requiring it to be replaced. If a mower is left in the elements over an extended period of time, the bracket could rust. This would require the bracket to need replacing. Failure to replace a worn or rusted bracket stop seat could cause potential safety hazards as the engine may to fail to shut off if the rider should leave the seat while the blade is engaged. Replacing a bracket stop seat requires a screwdriver to replace. It is a fairly easy repair that should take under 30 minutes to complete. This part serves as a replacement if needed for the original bracket stop seat. This bracket is compatible with Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Husky, Montgomery Wards, Bolens, Yard-Man, and Ryobi brands. This bracket is sourced directly from the manufacturer and is sold individually.

This genuine replacement part is a MTD flat washer flange sized .339 X .640 inch X .033 inch. This MTD flat metal washer flange has a variety of applications for many types of equipment including lawn mowers, snow blowers, tillers, edgers, and log splitters. Washers are important to the proper functioning of the product. They spread the load of a threaded fastener, such as a bolt or nut, or can be used as a spacer. However, they can often wear down or become damaged through extended normal use and may not last the full life cycle of the product, leading to improper operation. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This MTD flat washer flange has multiple applications in a wide range of products from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery, Wards, Bolens, Yard-Man, Turf King, MasterCut, and more. Please note: original part number 166763 is now obsolete, and manufacturer has replaced the original part number with this part.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

The throttle handle and assembly allow those who are using the machine to regulate the speed of the engine. The throttle tends to get a lot of use, and over time, the parts can start to wear down. Eventually, parts of the throttle assembly will break. When this happens, it will no longer be possible to control the throttle. If that is the case, this high-quality throttle control box assembly provides the replacement parts needed to repair a tractor, tiller, or riding mower. The kit includes all of the parts needed to replace the throttle assembly in a lawn tractor or other outdoor engines. The OEM part is compatible with a range of brands, including MTD, Yard-Man, Yard Machines, Troy-Bilt, Ryobi, and Craftsman.

The choke cable opens and closes the valve that controls the choke, or throttle, on the lawn mower. When the choke handle is depressed or pulled out, it will open or close the butterfly valve, controlling fuel flow to increase or decrease the speed and performance of the mower. Based on the type of tension cable that is used, this part can wear out or even snap from regular use and need to be replaced. The durable choke cable will be easy to install, but always disconnect the spark plug and wear gloves. This genuine OEM choke cable can be used with mowers from RYOBI, MTD, Husky, Yard Machines, Yard-Man, Troy-Bilt, Cub Cadet, and Bolens. It is made of metal and plastic and comes directly from the manufacturer to ensure quality. Sold individually.
