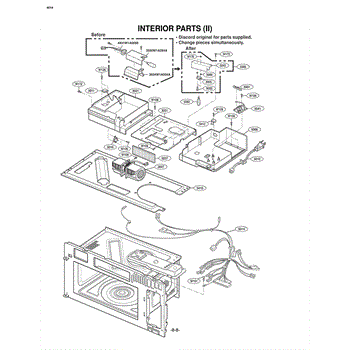

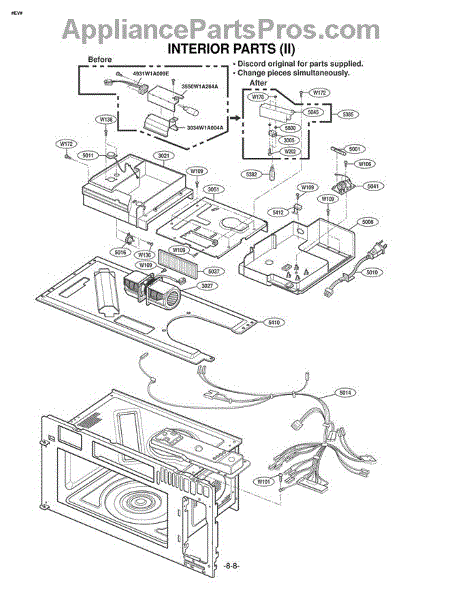

Parts for Lg LMVH1750ST / AS1ELGA: Section 6 Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

This 4.0x16mm tapping screw secures trim and internal components on compatible appliances, providing a reliable fastener for repair or reassembly. Use the correct screw to maintain fit and function during service. What it does:

• Fastens appliance panels, brackets, and small components where a self-tapping thread is required
• Replaces stripped or missing screws that cause loose panels or rattling
• Helps restore proper alignment and secure electrical or mechanical parts
• Suitable where a 4.0 x 16mm size and tapping/sharp thread are specified

• One 4.0x16mm tapping screw (quantity: 1)

• Use the matching screw location and thread engagement; do not force a misaligned fastener
• Tighten until seated; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety procedures before servicing
• If screws repeatedly strip, inspect mating threads or use an approved repair insert

This air tunnel directs heated air from the blower assembly into the dryer drum to maintain proper airflow and drying performance. Replaces a cracked or damaged duct to restore efficient air circulation and reduce drying time variability. What it does:

• Channels warm air from the blower to the drum for consistent drying and heat distribution
• Helps maintain proper venting and prevent hot spots that can cause uneven drying
• Commonly needed when cracks, breaks, or blockages cause poor airflow or extended dry cycles
• Contributes to normal operating airflow; damaged tunnels may lead to longer run times or reduced efficiency

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer's front or rear panels
• Inspect surrounding seals and fasteners; replace any broken clips or gaskets to ensure a proper seal
• If you smell burning or see significant lint buildup, clean the lint and vent system before reassembly; consider a full vent inspection

This humidity sensor assembly monitors moisture inside the microwave cavity during Sensor Cook and Reheat cycles, allowing the control to automatically adjust time and power. Replacing a failed sensor can restore accurate, reliable sensor-based cooking performance. What it does:

• Detects steam/humidity in the cavity for auto-sensing cook and reheat programs
• Sends feedback to the control board to adjust power levels and cook time
• Failure symptoms include sensor cook not starting, stopping early, "sensor" error messages, or inconsistent results on auto settings

• One humidity sensor assembly

• Unplug the appliance before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Handle the sensor face carefully and keep it clean; route and secure the wire harness as originally

This temperature control thermostat senses and regulates refrigerator temperature to keep food cold and appliances running efficiently. It replaces a worn or faulty controller to restore proper cooling cycles and temperature stability. What it does:

• Senses cabinet temperature and tells the compressor/evaporator fan when to run
• Restores normal cooling if a failed thermostat causes warm temperatures
• Stops continuous running or short-cycling when the thermostat was the issue
• Helps prevent food spoilage by maintaining consistent temperatures

• Disconnect power before servicing to avoid shock or injury
• Handle terminals and sensing elements carefully; avoid kinking or damaging capillary tubing
• Access may require removing interior panels or control housing—refer to your service manual

The Charcoal Filter is an OEM part for LG microwaves. It plays a crucial role in filtering and removing odors, smoke, and grease particles from the air during cooking. It is constructed with activated charcoal, which has absorbent properties and helps to eliminate cooking odors.

Over time, the charcoal filter can become saturated and less effective in odor removal. It is recommended to replace the charcoal filter periodically to maintain optimal performance and ensure clean and fresh air in your kitchen.

Symptoms of a saturated or clogged charcoal filter may include:

• Lingering cooking odors in the kitchen
• Reduced efficiency in capturing smoke or grease particles
• The presence of visible debris or discoloration on the filter

This OEM LG part can also be used on Kenmore/Sears appliances.

The Halogen Lamp is an OEM part for LG microwaves. It illuminates the interior of the microwave, allowing you to monitor the cooking process without opening the door.

Common causes of a bad halogen lamp include prolonged usage, electrical surges, or damage from impacts.

Symptoms of a bad halogen lamp include:

• The microwave interior remaining dark during operation
• Flickering or dim lighting
• The lamp not turning on at all

This OEM LG part is also compatible with some Kenmore models.

This is a motor start/run capacitor that helps the appliance's motor start and run smoothly by supplying a brief boost of electrical energy. Replacing a failing capacitor restores reliable motor startup and operation. What it does:

• Provides the brief electrical surge needed to start and keep the motor running
• Commonly linked to motors that hum, fail to start, or run intermittently
• Helps prevent overheating from repeated start attempts when functioning properly
• Works with the appliance's start circuitry to ensure consistent performance

• Disconnect power to the appliance before accessing electrical components
• Discharge the capacitor and use insulated tools
• Observe polarity/terminal layout and secure connections to factory specifications
• Dispose of the old capacitor according to local electronic-waste regulations
