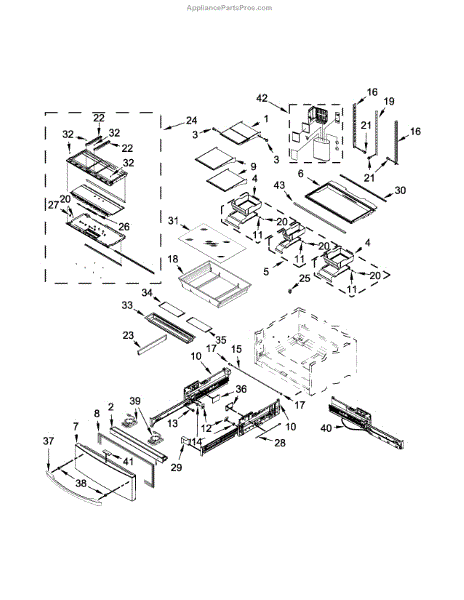

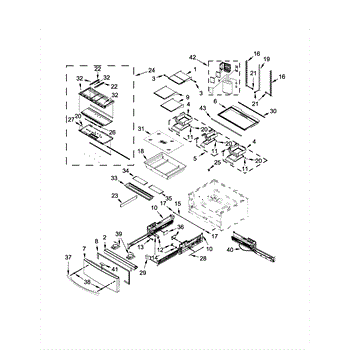

Parts for Kenmore 596.72389410 (59672389410, 596 72389410): Shelf Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This replacement crisper pan restores the storage surface in your refrigerator's fresh-food compartment so fruits and vegetables sit securely and the drawer area stays clean. It fits into the crisper area and supports produce. What it does:

• Provides a stable, flat pan for storing fruits and vegetables
• Replaces cracked, warped or damaged pans that let items sag or shift
• Helps contain spills and keeps the crisper drawer area cleaner
• Works with the refrigerator's crisper drawer assembly to support proper storage

• Remove all food from the drawer area before installing
• Slide the new pan into the crisper opening until it seats; avoid forcing it
• Handle carefully — if glass, place on a padded surface to prevent breakage

The Crisper Drawer Frame is an OEM part for Whirlpool refrigerators. This part supports and contains the crisper drawers where fruits and vegetables are stored. This frame includes tracks or guides to allow the drawers to slide in and out smoothly, as well as sometimes providing structural support for the shelves above it.

Causes of a bad Crisper Drawer Frame can range from overloading the drawers with too much weight, accidental damage during cleaning, or general wear and tear over time.

Symptoms of a bad Crisper Drawer Frame include:

• Cracks or breaks in the frame, leading to instability or difficulty in sliding the drawers.
• Warping or damage, preventing proper alignment within the refrigerator.
• Broken tracks or guides, making drawer movement stiff or uneven.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door gasket creates a tight seal around the refrigerator/freezer door to help keep cold air in and reduce moisture buildup. Replacing a worn or torn gasket restores proper sealing and helps the appliance run efficiently. What it does:

• Seals the door perimeter to prevent warm air infiltration and cold air loss
• Helps reduce frost buildup and prevents water pooling inside the compartment
• Prevents fluctuating temperatures that can cause food spoilage
• Restores proper door closure if the original gasket is warped, torn, or compressed

• Disconnect power to the appliance before starting any repair
• Remove the old gasket by loosening the door liner screws or clips as needed; install the new gasket following the OEM alignment and fastening points
• Work at room temperature so the gasket is more flexible; avoid overstretching or sharp tools that could damage the seal
• After installation, allow the gasket to form to the door; check for gaps and adjust fasteners if necessary

Color: White

Color: Grey

This drum support roller replaces a worn or noisy dryer roller that helps the drum turn smoothly. Restores quiet, even drum rotation for improved drying performance and reduced wear on the drive system. What it does:

• Supports the dryer drum so it spins evenly during operation
• Reduces vibration and noise caused by worn or seized rollers
• Helps prevent premature wear on the belt and drive components
• Common symptom: loud rumbling, squeaking, or visible drum wobble during spin

• Disconnect power to the appliance before any service
• Replace worn or damaged rollers in matched pairs when recommended by the OEM
• Inspect the shaft, bearing surface, and belt for wear and replace if needed

This drive gear transmits motor motion into the washer transmission so the tub can agitate and spin. Replacing a worn or broken drive gear restores proper drivetrain engagement and reduces grinding or slipping symptoms. What it does:

• Transfers rotational force from the motor/shaft to the transmission or agitator assembly
• Stops grinding, slipping, or intermittent agitation caused by damaged gear teeth
• Helps restore normal spin and agitation cycles when drivetrain wear is the cause
• Works as a mechanical replacement part—does not include seals or bearings

• One drive gear

• Disconnect power and water before beginning any repair
• Access requires removing the washer cabinet or transmission cover; follow the manufacturer's service manual
• Inspect adjacent components (shaft, retention clip, seals) and replace if damaged

The Freezer Drawer Gear Clip is an OEM part for Whirlpool refrigerators. It is designed to secure the gear mechanism that allows the freezer drawer to slide in and out smoothly. This clip ensures that the drawer operates efficiently, providing easy access to the freezer compartment.

Causes of a bad gear clip can include wear and tear from regular use, damage due to overloading the drawer, or breakage from accidental impact. A faulty gear clip can impair the drawer’s movement and make it difficult to open or close properly.

Symptoms of a bad refrigerator freezer drawer gear clip include:

• The freezer drawer not sliding smoothly
• Difficulty in opening or closing the drawer
• The drawer coming off its track
•  Unusual noises during the drawer’s operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Single

A small mounting screw used to secure appliance panels and components. This genuine replacement restores proper fit and reduces vibration or loose parts when a missing or stripped fastener causes fit issues. What it does:

• Secures panels, trim, or internal components to the appliance frame
• Helps stop rattling or movement caused by a missing or loose screw
• Restores correct alignment where a fastener is lost or damaged
• Works as a direct-fit replacement when the original screw is worn or stripped

• The screw shown/listed

• Disconnect power (and gas if applicable) before any repair
• Use the matching screwdriver or driver bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage
• Keep small parts away from children and store removed hardware for reference

This replacement divider helps separate and organize items inside the refrigerator, keeping food better arranged for easier access and storage. It restores proper spacing and reduces shifting of contents. What it does:

• Separates compartments on a shelf or inside a drawer to keep foods organized
• Helps prevent items from sliding or shifting during door movement
• Restores proper spacing when a broken or missing divider causes clutter
• Simple passive part with no electrical components

• Disconnect power only if working near electrical components; generally a no-tools snap/slide install
• Remove shelf or drawer as needed to access the divider slot
• Align and slide or snap the divider into the existing track or locator tabs until secure
• Handle carefully to avoid chipping or cracking plastic; replace if damaged

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This heater is the dryer's heating element assembly that warms air used to dry clothes. Replacing a failed heater restores proper drum heat so the dryer can complete normal drying cycles. What it does

• Generates the hot air flow that removes moisture from clothes
• Common symptom: no heat or very low heat during drying cycles
• Can cause long dry times, damp laundry, or repeated cycles
• May fail from broken element, open thermal fuse, or worn connections

• Disconnect power at the breaker before starting work; for gas dryers also shut off the gas supply
• Allow the appliance to cool and avoid contact with sharp edges; handle terminals carefully
• Inspect wiring and thermal fuses for damage when replacing the heater

The Thermistor is an OEM part for Whirlpool refrigerators. As a temperature-sensitive sensor, it tracks compartment climates to maintain fresh food safety.

Causes of a bad thermistor involve cracking of its insulated body allowing moisture, as well as typical wear disrupting conductivity after years of use.

Symptoms include:

• Fluctuating temperatures conducive to bacterial growth
• Constant compressor operation without reaching targets
• Error codes or inability to adjust temperature settings

This OEM Whirlpool part is also compatible with some Kenmore, Maytag, and KitchenAid models.

This rear crisper drawer support secures and aligns the refrigerator crisper, keeping the drawer stable and allowing smooth sliding. Replace a worn or broken rear support to restore proper drawer fit and prevent sagging or misalignment. What it does:

• Holds the rear of the crisper drawer on its track so the drawer stays level during use
• Guides and stabilizes drawer movement to prevent sticking or uneven travel
• Prevents the crisper from tilting, falling, or binding when opening and closing
• Works with the existing front support and drawer components to maintain fit

• One rear crisper drawer support (quantity: 1)

• Remove food and the crisper drawer before replacing the support
• Most repairs are simple and require only basic hand tools; handle plastic parts gently to avoid damage
• Disconnect power to the appliance before servicing if you need to move or access electrical components

The Glass Shelf is an OEM part for Whirlpool refrigerators. This shelf provides a stable and durable surface for storing food items within the refrigerator, helping to keep the interior organized and allowing easy access to stored items.

Causes of a bad glass shelf can include accidental impacts, overloading with heavy items, or thermal stress from placing hot containers directly on the glass.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• The shelf not fitting securely in place
• Difficulty in removing or adjusting the shelf
• Items not being properly supported, leading to instability

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This refrigerator door bin restores secure storage on your door when the original shelf is cracked, loose, or missing. It snaps into the factory slots to hold bottles and condiments and keep items from tipping during use.

• Provides organized storage on the door for jars, bottles, and condiments
• Replaces a broken, warped, or missing bin to restore capacity
• Helps keep items upright during door opening and closing
• Common symptoms: cracked plastic, bin falling off the door, items not staying in place, door rubbing due to a deformed bin

• Disconnect power to the refrigerator before servicing
• Remove items, then lift the old bin straight up and off the door tabs/rails
• Align the new bin with the tabs and press down until it seats securely
• Verify the bin is level and firmly latched; avoid overloading after installation

This refrigerator door bin restores secure storage on your door when the original shelf is cracked, loose, or missing. It snaps into the factory slots to hold bottles and condiments and keep items from tipping during use.

• Provides organized storage on the door for jars, bottles, and condiments
• Replaces a broken, warped, or missing bin to restore capacity
• Helps keep items upright during door opening and closing
• Common symptoms: cracked plastic, bin falling off the door, items not staying in place, door rubbing due to a deformed bin

• Disconnect power to the refrigerator before servicing
• Remove items, then lift the old bin straight up and off the door tabs/rails
• Align the new bin with the tabs and press down until it seats securely
• Verify the bin is level and firmly latched; avoid overloading after installation

This refrigerator door bin restores secure storage on your door when the original shelf is cracked, loose, or missing. It snaps into the factory slots to hold bottles and condiments and keep items from tipping during use.

• Provides organized storage on the door for jars, bottles, and condiments
• Replaces a broken, warped, or missing bin to restore capacity
• Helps keep items upright during door opening and closing
• Common symptoms: cracked plastic, bin falling off the door, items not staying in place, door rubbing due to a deformed bin

• Disconnect power to the refrigerator before servicing
• Remove items, then lift the old bin straight up and off the door tabs/rails
• Align the new bin with the tabs and press down until it seats securely
• Verify the bin is level and firmly latched; avoid overloading after installation

A replacement door handle that restores a secure grip and normal door operation. Fits like the original to help open and close the appliance door safely and comfortably. What it does:

• Replaces a cracked, broken, or worn handle to restore user grip and control
• Provides the same mounting points and function as the original handle design
• Helps prevent further damage to door trim and reduces the risk of sudden handle failure
• Works with factory latch and hinge alignment when installed correctly

• High-level install; basic hand tools usually required—support the door or panel before removing the old handle
• Keep all mounting screws and small parts organized; replace any stripped fasteners with OEM parts
• If the door contains electronic components (dispensers, lights, sensors), disconnect power before starting

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Pantry Drawer Wiring Harness is an OEM part for Whirlpool refrigerators. This wiring harness connects the electrical components of the pantry drawer, ensuring proper functionality and temperature control within the drawer. It helps maintain the correct temperature settings and allows for the smooth operation of the pantry drawer features.

Causes of a bad wiring harness can include wear and tear from regular use, damage from accidental pinching or pulling, or electrical faults that disrupt the connection.

Symptoms of a bad pantry drawer wiring harness include:

• Pantry drawer not maintaining the correct temperature
• Inconsistent or fluctuating temperatures within the drawer
• Pantry drawer features not working
• Error codes related to the pantry drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This electronic control board is the appliance's main control module that regulates cycles, timers and user commands so your unit runs the selected functions reliably. Direct OEM replacement for the original factory control assembly. What it does:

• Manages and sequences appliance functions, cycles and timers
• Receives input from buttons/knobs and sends signals to motors, valves and heaters
• Can resolve symptoms like unresponsive controls, incorrect cycle behavior or intermittent operation
• Works as the central logic for sensors and display feedback

• One electronic control board (main control)

• Disconnect power before servicing to avoid shock or board damage
• Handle by edges and avoid touching circuit traces or components to reduce ESD risk
• Compare part numbers and connectors before installation
• Reinstall covers, harnesses and shields removed during replacement; verify operation after power is restored

This front crisper drawer support secures the refrigerator's front crisper drawer for smooth sliding and correct alignment, reducing sagging and sticking so stored items stay accessible and the drawer operates reliably. What it does:

• Holds the front corner of the crisper drawer in place so the drawer slides and aligns properly.
• Prevents drawer sagging, catching, or uneven movement that can make the drawer hard to open or close.
• Helps maintain proper drawer positioning to protect stored produce and prevent rubbing on the cabinet.
• Works with the existing drawer track and rear support.

• Unplug the appliance or disconnect power before starting any service to reduce electrical risk.
• Empty and remove the crisper drawer before replacing the support; follow the refrigerator's parts diagram for correct orientation.
• Inspect the drawer track and rear support for wear; replace any damaged components to restore smooth operation.
