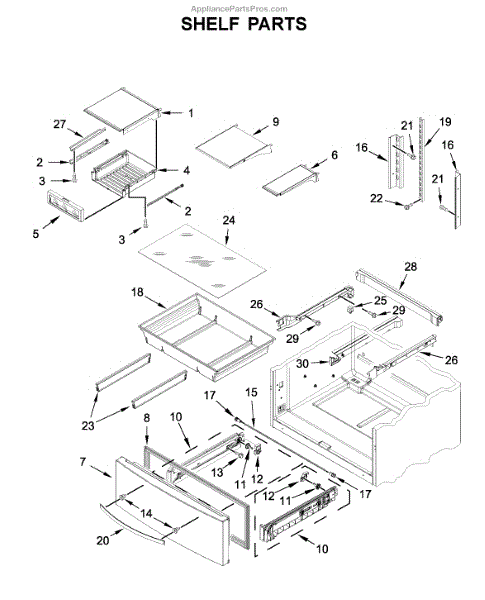

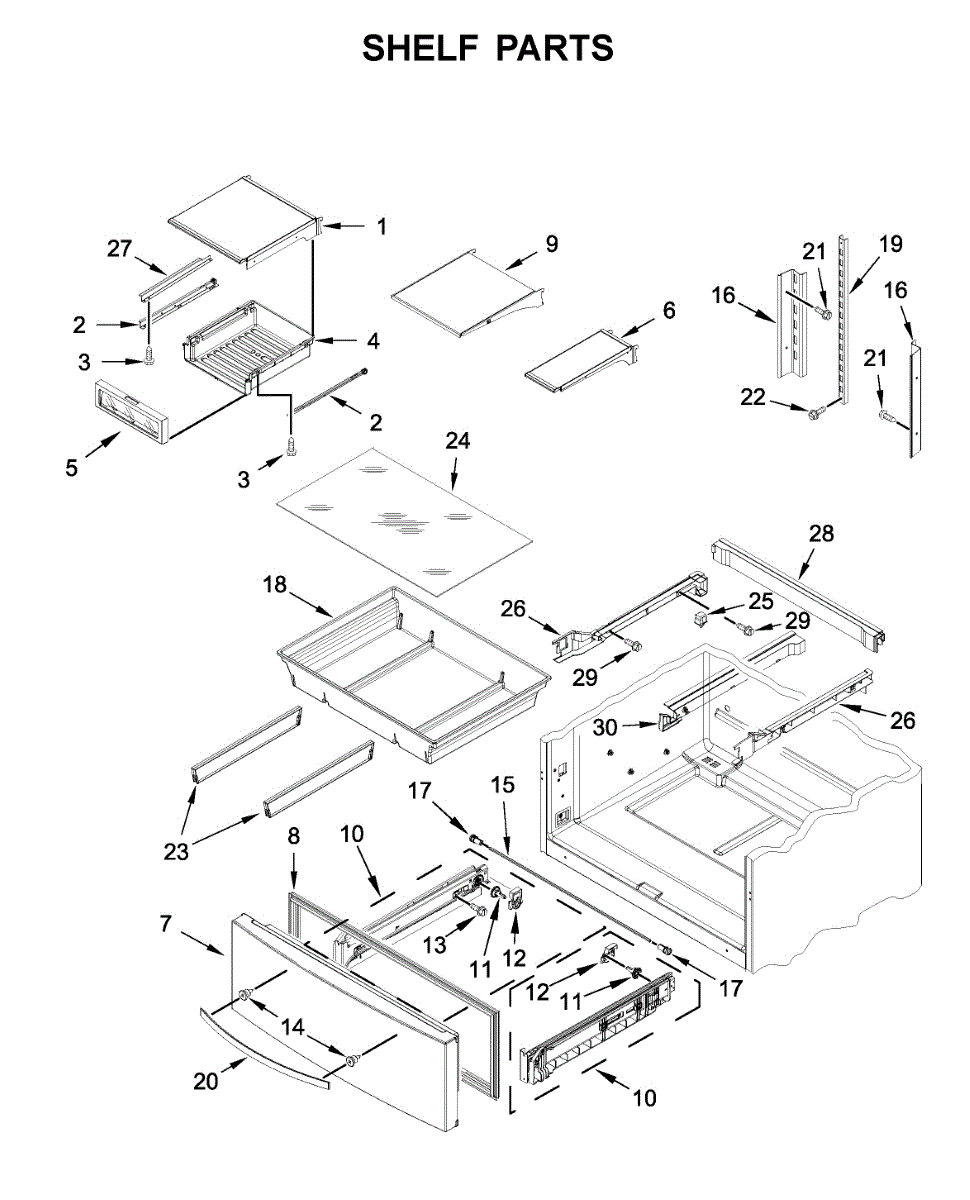

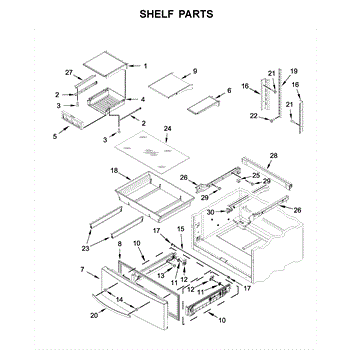

Parts for Whirlpool WRX735SDHB01: Shelf Parts

The Glass Shelf is an OEM replacement part for Whirlpool refrigerators. It provides a surface for storing food items and organizing your refrigerator space.

A bad glass shelf can occur due to accidental damage, wear and tear, or mishandling. If you notice symptoms such as cracks, chips, or a weakened surface, it may be time to replace the shelf to prevent any potential accidents or further damage.

Symptoms of a bad glass shelf include:

• Cracks or chips on the surface
• Weak or sagging areas on the shelf
• Difficulty in safely storing food items

Restore your refrigerator's storage space by replacing the damaged or worn-out glass shelf with this genuine OEM part.

This Whirlpool OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement roller pan slide keeps the oven broiler/drawer pan rolling smoothly and aligned for reliable operation. It restores proper pan support and helps prevent binding or uneven movement. What it does:

• Provides a smooth sliding surface and support for the oven broiler/drawer pan
• Replaces worn or broken slides that cause sticking, wobbling, or noisy operation
• Helps keep the pan properly aligned so it inserts and removes easily
• Fits into the existing slide/runner assembly to restore normal function

• One roller pan slide

• Remove power to the appliance and allow any hot surfaces to cool before servicing
• Inspect matching slides and mounting hardware; replace both sides if one side is severely worn
• Simple snap-in or screw-mount replacement on many models;

This runner, roller and pan assembly restores smooth sliding and stable support for a refrigerator/freezer drawer. It replaces worn or damaged slides so the drawer opens and closes evenly and reduces sticking or misalignment. What it does:

• Provides a rolling track and mounting pan to guide and support the drawer during use
• Replaces worn rollers or bent runners that cause sticking, sagging, or noisy movement
• Helps restore proper alignment so drawers latch and seal correctly
• Compatible with factory mounting points to maintain original fit and function

• One runner, roller and pan assembly as shown

• Remove power and empty the drawer before beginning; follow OEM disassembly steps
• Installation typically requires basic hand tools; retain all factory screws and hardware unless replacement is specified
• Inspect mounting clips and surrounding components for damage; replace any broken fasteners

This is a replacement 8-18 threaded screw used to secure components in compatible Whirlpool appliances. It provides a like-for-like fastening option when an original screw is lost or damaged, restoring proper fit and function. What it does:

• Fastens panels, brackets, or components where an 8-18 thread screw is required
• Replaces stripped, corroded, or missing screws to stop rattles and looseness
• Matches the fastening method used by the original equipment for reliable hold
• Suitable for areas where the OEM specified an 8-18 threaded screw

• Screw (single)

• Use the correct driver and size to avoid stripping the head or damaging mating threads
• Tighten to snug fit; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power to the appliance before starting repairs when working near electrical components

This replacement meat pan is a molded deli pan that holds and contains meat and deli items inside the refrigerator drawer, helping prevent spills and keeping foods organized. It restores a clean, stable surface for storing prepared foods. What it does:

• Provides a dedicated tray for deli meats, cheeses and prepared foods
• Catches juices and prevents drips from reaching the refrigerator floor or drawer tracks
• Replaces cracked, warped or stained pans that no longer seal or sit flat
• Helps maintain food organization and easier cleanup

• Slide the new pan into the deli/crumb drawer area until it seats fully; no tools typically required
• Clean the pan before first use and after each use with mild soap and warm water
• Inspect drawer rails and mounts for debris before reinstalling the pan
• For safety, follow refrigerator manufacturer's instructions and disconnect power only if directed by the OEM for related service

This deli front assembly replaces the front panel on a refrigerator deli/drawer to restore a finished look and provide the mounting surface for the drawer. It helps keep food contained and the drawer operating smoothly. What it does:

• Replaces a cracked, scratched, or missing deli drawer front to restore appearance and function
• Provides the attachment point for the deli drawer so it closes and seals correctly
• Prevents food from spilling forward and helps maintain organized storage
• Matches OEM fit and mounting locations for direct replacement

• One deli front assembly as shown

• Basic screw- or clip-style removal of the old front may be required; retain mounting hardware if reused
• Handle parts or trim may need to be transferred from the old panel
• Disconnect power to the appliance and remove contents from the drawer before starting work

The Cantilever Shelf is an OEM component specifically designed for Whirlpool side-by-side refrigerators. Found inside the fresh food compartment above the vegetable bins, the sturdy cantilever shelf provides versatile storage space.

Machined from heavy-duty glass with a powder-coated steel frame, the shelf features a heat-tempered surface that easily supports moderate weights. Adjustable extension rollers allow front-to-back shelving positioning.

Causes of a bad cantilever shelf include cracks developing from years of weight loading the glass. Degraded rollers losing functionality for shelf movement is also possible.

Symptoms of a bad cantilever shelf include:

• Sagging or collapse from excessive weight
• Frozen items becoming inaccessible
• Inability to position shelf due to faulty rollers

Replace with this authentic OEM Whirlpool shelf to maintain internal organization and the multiple uses of your refrigerator compartments. Compatible with KitchenAid, Jenn-Air, and Kenmore side-by-side models as well.

This is a replacement freezer door gasket that seals the freezer compartment to help maintain cold temperatures and reduce frost buildup. It restores a tight seal for better efficiency and food preservation. What it does:

• Creates an airtight seal around the freezer door to keep cold air in and warm air out
• Helps reduce frost and ice buildup inside the freezer
• Supports consistent internal temperatures for safer food storage
• Can improve compressor run cycles by preventing air leaks

• One freezer door gasket as shown

• Check the door and cabinet mating surface for debris or damage before installing
• Gasket edges may need gentle warming to fit snugly; avoid overheating
• Inspect and replace any worn door screws or retainer strips if present for a proper seal
• Disconnect power and follow appliance safety guidelines before performing repairs

Replacement gasket that restores a watertight seal at the factory connection to help prevent leaks and protect floors and cabinetry from water damage. Use to replace cracked, hardened, or torn seals. What it does:

• Seals mating surfaces to stop water leakage and reduce moisture-related damage.
• Common symptoms it helps address: visible leaks, pooled water under the appliance, or degraded/rubbery gasket material.
• Replaces worn, cracked, stiff, or torn seals to restore proper sealing performance.
• Seats into the original gasket groove—ensure the seal is fully seated with no gaps.

• Disconnect power and water supply before starting any service.
• Remove the old gasket, then clean and dry the mating surfaces and gasket groove.
• Press the new gasket into the groove evenly and inspect for full engagement around the perimeter.
• Restore power/water and run a short test cycle; check thoroughly for leaks before returning the appliance to regular use.

This replacement glass shelf restores usable storage space in your refrigerator by replacing a cracked, chipped, or missing shelf. Easy-to-clean surface helps keep food organized and prevents items from shifting or falling. What it does

• Replaces a broken or missing refrigerator glass shelf to restore storage surface and organization.
• Provides a sturdy, flat surface for food containers, produce bins, and other items.
• Common symptoms it fixes: cracked, chipped, shattered, loose, or missing shelf glass.
• Matches OEM shelving function and appearance when the correct part number is used.

• Remove food and any items from the shelf area before starting.
• Handle the glass with care and wear cut-resistant gloves to avoid injury.
• Most installations require no tools—slide the shelf into the existing support rails or brackets until seated.

This adapter connects the appliance's water line to the inlet fitting, providing a secure path for water flow to components like ice makers and dispensers. It helps restore proper water delivery and prevents loose or leaking connections. What it does:

• Creates a sealed connection between the supply line and the appliance inlet
• Restores proper water flow when a worn or damaged connection causes low or no water delivery
• Stops leaks caused by cracked or loose fittings at the inlet
• Works where a direct hose-to-inlet connection needs a small matching adapter

• One adapter as shown

• Disconnect power and shut off the water supply before starting any work
• Verify correct orientation and thread engagement; hand-start threads then snug with a wrench—do not overtighten
• Inspect nearby hoses, seals, and fittings; replace if cracked or damaged

This drive gear transmits motor motion into the washer transmission so the tub can agitate and spin. Replacing a worn or broken drive gear restores proper drivetrain engagement and reduces grinding or slipping symptoms. What it does:

• Transfers rotational force from the motor/shaft to the transmission or agitator assembly
• Stops grinding, slipping, or intermittent agitation caused by damaged gear teeth
• Helps restore normal spin and agitation cycles when drivetrain wear is the cause
• Works as a mechanical replacement part—does not include seals or bearings

• One drive gear

• Disconnect power and water before beginning any repair
• Access requires removing the washer cabinet or transmission cover; follow the manufacturer's service manual
• Inspect adjacent components (shaft, retention clip, seals) and replace if damaged

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Freezer Drawer Gear Clip is an OEM part for Whirlpool refrigerators. It is designed to secure the gear mechanism that allows the freezer drawer to slide in and out smoothly. This clip ensures that the drawer operates efficiently, providing easy access to the freezer compartment.

Causes of a bad gear clip can include wear and tear from regular use, damage due to overloading the drawer, or breakage from accidental impact. A faulty gear clip can impair the drawer’s movement and make it difficult to open or close properly.

Symptoms of a bad refrigerator freezer drawer gear clip include:

• The freezer drawer not sliding smoothly
• Difficulty in opening or closing the drawer
• The drawer coming off its track
•  Unusual noises during the drawer’s operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This utility pan is a direct-fit replacement that catches drips and debris to help protect internal components and the appliance cabinet. It restores a clean, stable base and prevents moisture-related damage when the original pan is missing or damaged. What it does:

• Collects leaks, crumbs and spills to keep the appliance interior and surrounding components dry
• Helps reduce corrosion and part damage by channeling liquids away from sensitive parts
• Stops loose debris from interfering with mechanical or electrical components
• Common symptom: visible puddling, odors or corrosion under the appliance where the original pan is cracked, warped or missing

• One utility pan

• Disconnect power (and water/gas if applicable) before accessing the pan
• Access the pan by removing the appropriate access panel or drawer per your model's service instructions
• Handle carefully—sharp sheet-metal edges may be present; use gloves

This replacement refrigerator door handle restores a secure grip and smooth opening for compatible Whirlpool refrigerators. It replaces a worn, cracked, or broken handle so the door operates safely and looks finished. What it does:

• Provides a stable grip for opening and closing the refrigerator door
• Replaces broken, cracked, or loose handles that affect door operation
• Helps maintain a proper seal by allowing correct door alignment when closed
• Restores the original appearance of the appliance exterior

• One replacement refrigerator door handle

• Designed for direct replacement; use factory mounting points and hardware
• Keep power unplugged and remove food from door area if applicable before starting
• Handle with care to avoid scratching painted or plastic surfaces during installation
• If mounting screws or end caps are missing or damaged, replace with OEM-specified hardware

The Freezer Door Handle is an OEM component specifically designed for Whirlpool refrigerators. It provides an ergonomic grip for easy access to frozen food storage below.

Symptoms of a bad freezer door handle include:

• Cracking or breaking of plastic material over time
• Corrosion causing pitting of metal handle components
• Poor gripping ability due to worn surfaces or detachment issues

Common causes relate to subzero temperatures accelerating fatigue of components not designed for prolonged cold exposure. Repeated bending during opening and closing also stresses plastic construction.

Color: Black Stainless

This replacement handle restores dependable access to frozen aisles. Contoured to fit the door perfectly, it is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, and Kenmore models.

This genuine factory-style divider separates the crisper/deli drawer to help organize food and keep items from shifting during use. It restores proper spacing so fruits, vegetables and deli items stay organized and easier to access. What it does

• Creates a stable partition inside the crisper or deli drawer to keep different foods separated
• Helps prevent items from sliding together when opening and closing the drawer
• Maintains intended airflow and organization in the drawer area
• Reduces the chance of spills and cross-contamination between stored items

• One divider designed for the crisper/deli drawer

• Simple push-in or slide-in installation; handle gently to avoid cracking plastic
• Inspect mating slots or rails and clean any debris before installing the divider
• If access requires removing the drawer, support it fully to avoid dropping
• For safety, unplug the appliance or turn off power at the breaker before removing interior components if working near electrical parts

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and stable surface for storing food items inside the fridge. The shelf is made from durable tempered glass, designed to hold various items while allowing for easy visibility and cleaning.

Causes of a bad glass shelf can include breakage due to heavy loads, accidental impact, or thermal stress from temperature changes.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• The shelf not fitting securely in place
• Difficulty in sliding the shelf in or out
• Food items not being properly supported

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Switch Assembly is an OEM replacement part for Whirlpool refrigerators. It is responsible for turning the light on when you open the refrigerator door and turning it off when the door is closed. It ensures that the light functions properly, allowing you to easily locate and retrieve items from your refrigerator.

Symptoms of a faulty door light switch include:

• Interior light not turning on when the door is opened
• Interior light staying on even when the door is closed

A bad door light switch can occur due to regular use, wear and tear, or accidental damage. If you notice issues such as the interior light not turning on or off when you open or close the door, it may be time to replace the door light switch.

This Whirlpool replacement part is also compatible with Sears/Kenmore models.


This replacement rail mounts inside your appliance to support or retain a bin, drawer, rack, or shelf. Replacing a cracked or missing rail restores proper alignment, secure fit, and smooth operation.

• Supports and retains the mating bin, drawer, rack, or shelf in the correct position
• Helps keep components level and aligned to prevent binding, popping off, or spills
• Provides stable guidance or stop points so parts move and seat properly
• Typical symptoms: wobble or sagging, difficulty opening/closing, parts falling out, visible cracks or broken tabs on the rail

• Disconnect power before servicing; remove items from the affected area
• Remove the drawer/bin/rack, then release locking tabs or screws to take out the damaged rail
• Transfer any reusable clips or end caps from the old rail, align, and secure the new rail; test movement before reloading

This replacement rail supports and guides a sliding component inside your appliance, helping drawers, shelves, or racks move smoothly and stay properly aligned. What it does:

• Provides a track for a drawer, shelf, or rack to slide in and out
• Helps keep the sliding component level and correctly aligned
• Reduces friction and binding during operation
• Common failure signs include sticking or uneven movement, tilting on one side, popping off the track, or visible cracks/broken tabs

• 1 rail

• Disconnect power before servicing; wear cut-resistant gloves around metal edges
• Remove the affected drawer/shelf/rack and the damaged rail
• Reuse existing screws/fasteners and transfer any clips or end caps from the old rail if applicable
• Secure firmly; test for smooth travel before reloading

The Rail is an OEM part for Whirlpool refrigerators. It is responsible for provide easy access to your stored items while maintaining stability and support. It provides a reliable sliding mechanism for the refrigerator drawer, allowing you to open and close it easily.

A bad drawer slide rail can occur due to wear and tear, damage, or misalignment. If you notice symptoms such as the drawer sticking or not sliding smoothly, uneven movement, or the drawer falling off the rails, it may be time to replace the drawer slide rail.

Symptoms of a bad drawer slide rail include:

• Sticking or difficulty in sliding the drawer
• Uneven movement or instability
• Drawer falling off the rails

Repair your refrigerator by replacing the faulty or worn-out drawer slide rail with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
