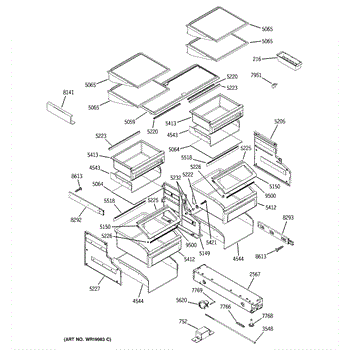

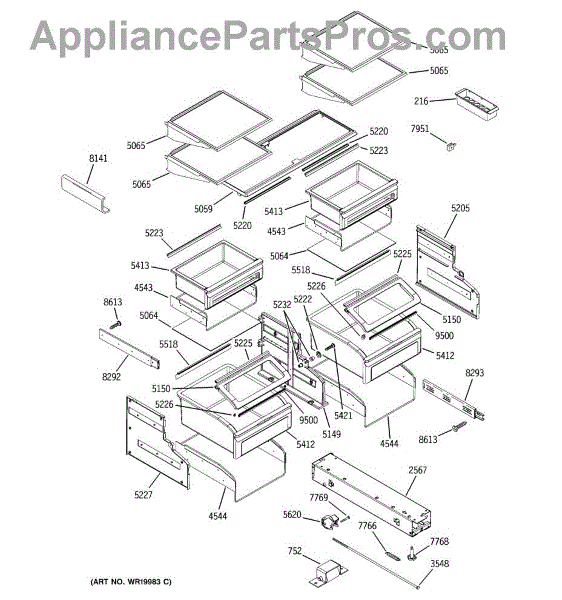

Parts for Ge ZICP360NXBLH: 04 - Shelves & Drawers Parts

This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This veg pan cover is the replacement lid for a refrigerator crisper/vegetable drawer, helping keep produce separated and reducing moisture loss for fresher, longer-lasting fruits and vegetables. What it does:

• Covers the refrigerator vegetable/crisper drawer to help contain humidity and protect produce
• Restores a secure fit when the original cover is cracked, warped, or missing
• Helps prevent accidental spills into the drawer below and keeps items contained
• Works with the drawer assembly to promote consistent storage conditions

• Remove contents from the drawer and slide the drawer out to access the cover
• Align the cover with the drawer rails or mounting tabs and snap or slide into place
• Handle carefully to avoid cracking plastic; use gentle pressure and avoid tools unless specified by the appliance manual

This encap shelf assembly is an encapsulated glass refrigerator shelf that restores a stable, easy-to-clean storage surface and helps contain spills. Replaces damaged or missing shelves to improve organization and safe food storage. What it does:

• Provides a flat, sturdy surface for groceries and containers.
• Encapsulated edge design helps contain spills and keeps items from sliding off.
• Replaces cracked, chipped or sagging shelves that can't support weight safely.
• Restores proper spacing and organization inside the fresh-food compartment.

• One encap shelf assembly

• Remove all food and containers before replacing the shelf.
• Wear cut-resistant gloves when handling glass; protect surfaces from breakage.
• Support the shelf while sliding into the shelf tracks or brackets to avoid damage.
• Confirm proper fit and seating in the tracks before loading with items.

This divider assembly separates and supports the refrigerator's vegetable pans, keeping produce organized and preventing items from shifting. It restores the proper spacing and function of the crisper area for reliable storage. What it does:

• Provides a stable partition between vegetable/crisper pans to keep contents separated
• Holds pans in correct alignment so drawers slide smoothly and stay in place
• Replaces cracked, broken, or warped dividers that allow pans to shift or rattle
• Helps maintain organized storage and prevents produce from mixing

• One divider assembly

• Remove the crisper drawer(s) and pans to access the divider before installing
• Align the assembly into the existing tracks or mounting points until it snaps or seats fully
• Inspect surrounding tracks and pans for damage; replace any worn pieces for best fit

The Vegetable Pan Lid is an OEM replacement part for GE refrigerators. Located in the refrigerator door, the vegetable pan is designed to store fruits and vegetables in a humid environment to retain freshness longer. Color: white. Measures about 15-1/2 inches wide by 7 inches deep.

Over time, the vegetable pan lid can become cracked or warped due to frequent use, exposure to heavy items, or temperature fluctuations. A damaged lid can lead to improper sealing, which can compromise the freshness of the stored produce.

Symptoms of a failing lid include:

• Inability to properly seal in produce items
• Excess moisture or condensation buildup inside the refrigerator door
• Difficulty removing or replacing the lid securely
• Damage or wear that compromises the lid's structural integrity

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The showcase pivot provides the pivot point that supports the washer's showcase assembly, restoring proper alignment and stable rotation for smoother operation and reduced noise or wobble. What it does:

• Serves as the pivot/support for the washer showcase assembly so the basket or door rotates as designed
• Keeps the showcase aligned to prevent rubbing, binding or uneven movement
• Helps reduce vibration and noise caused by a worn or damaged pivot
• Worn pivots can cause visible misalignment, wobbling or unusual noises during spin cycles

• Disconnect power and water supply before beginning any repair
• Remove access panels and note orientation of the old pivot before removing
• Inspect surrounding parts and replace if damaged
• Reassemble securely; run a short test cycle to verify alignment and operation

This front vegetable pan glass seal replaces the worn or damaged gasket that fits along the glass front of a refrigerator crisper/vegetable drawer. Restores a snug fit to help reduce drafts, rattling and food falling beneath the drawer. What it does:

• Seals the front edge of the crisper/vegetable drawer glass to help maintain proper airflow and keep produce fresher.
• Holds the glass front securely to reduce rattling, slipping or gaps.
• Prevents small food items and debris from slipping under the pan.
• Common symptoms: torn, brittle or missing seal; visible gap at the drawer front; rattling or debris collecting beneath the drawer.

• Remove food and slide out the crisper/vegetable drawer to access the glass front before replacing the seal.
• Remove the old seal and clean the channel of any debris or adhesive; press the new seal firmly into the channel until fully seated.
• Wear gloves and use caution around glass edges to avoid cuts; no special tools are usually required.
• If clips or adhesive are present, inspect and reuse or replace them as needed; replace cracked or damaged glass rather than relying on the seal.

A replacement showcase pivot bushing that supports the door pivot and helps the showcase door rotate smoothly. Restores proper pivot alignment to reduce wobble and rubbing for safer, quieter operation. What it does

• Provides a low-friction bearing surface at the showcase door pivot so the door opens and closes smoothly.
• Helps keep the pivot shaft centered to prevent door wobble or uneven movement.
• Reduces metal-on-metal contact that can cause noise, wear, or scraping.
• Commonly used when a door feels loose, binds, or hangs unevenly at the pivot.

• One (1) showcase pivot bushing.

• Disconnect power to the appliance before starting any repair.
• Remove the door or panel per the manufacturer's instructions to access the pivot area.
• Press or snap the bushing into the pivot housing until fully seated; replace pivot shaft/hardware as needed.
• Test door operation after installation; inspect pivot shaft and surrounding components for wear.

This part is a genuine OEM replacement crisper drawer intended for use with refrigerators. This crisper drawer is intended to properly store fruits, vegetables, and produce at the correct temperature and humidity in order to keep it fresh for as long as possible. Crisper drawers can become cracked or broken over time or if subject to damage, requiring replacement. No tools are needed to replace this part and installation is straightforward. Simply remove the old crisper drawer carefully and slide the replacement part into place. This part has been made by General Electric and has been sourced directly from the manufacturer. It is made out of high-quality, durable, non-corrosive plastic to ensure high quality and durability. This crisper drawer is sold individually. It is intended for use with various different refrigerator models manufactured by General Electric, Hotpoint, RCA, and some other compatible brands.

This snack pan assembly is the shallow refrigerator drawer that stores snacks and deli items in the fresh food compartment. Replace a cracked or missing pan to restore smooth sliding access and reliable, contained storage.

• Organizes smaller food items in the fresh food section
• Slides within the shelf rails for easy access
• Replaces cracked, broken, warped, or missing drawer
• Helps prevent spills or items falling due to a damaged bin

• Unplug the refrigerator or disconnect power before servicing interior parts
• Remove contents, pull the old pan straight out, and lift the front to clear the rails
• Inspect/clean rails and supports; transfer any reusable trim from the old pan if applicable
• Align and slide the new pan into the rails until fully seated

A #8-18 x 7/8 screw used to fasten appliance panels and components for secure operation. Small, corrosion-resistant fastener that restores proper fit and reduces rattling or loose parts. What it does:

• Secures trim, panels, brackets, or internal components to restore proper alignment
• Helps stop vibration and rattling caused by loose or missing fasteners
• Matches original thread size and length for correct fit in designated mounting points
• Used wherever a #8-18 x 7/8 machine/sheet metal screw is required

• Use the correct #2 Phillips or driver specified for the screw head to avoid stripping
• Do not overtighten; stop when snug to avoid damaging threads or components
• Disconnect power and remove panels before working near electrical parts
• Replace only with the same size and thread type for proper fit and safety

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This Slide Outer is the outer rail that supports and guides a refrigerator shelf/drawer, restoring smooth movement and proper alignment. It replaces a worn or broken outer slide to help shelves glide and stay level. What it does:

• Guides the shelf or drawer on one side and provides structural support during use
• Replaces a cracked, bent, or worn outer rail that causes sticking or uneven movement
• Helps restore proper alignment when a shelf tilts or binds while sliding
• Works with the matching inner slide and mounting hardware to enable smooth operation

• Disconnect power and empty the shelf/drawer before starting work
• Remove the shelf/drawer and any clips or screws holding the old slide; install in reverse order
• Use only the matching inner slide and hardware; fit before final assembly
• If mounting points are damaged, inspect cabinet/frame and replace as needed for secure installation

This outer drawer slide supports and guides a refrigerator drawer or pantry pan so it opens and closes smoothly. Replacing a worn or cracked slide restores alignment and helps prevent sticking, tipping, or spills.

• Attaches as the outer rail for the sliding drawer assembly
• Provides smooth gliding action and supports the drawer/pan
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to move, tilts or falls, cracked/broken rail, scraping or binding

• Disconnect power; empty and remove the affected drawer
• Remove the shelf/cover if needed to access the slide
• Take out mounting screws/clips; note the slide's orientation
• Install the new slide, ensure rails are parallel, and test drawer travel

Flexible front door seal (gasket) that restores a tight closure between the appliance door and cabinet to help maintain interior temperature and reduce moisture, frost and energy loss. Use when the existing seal is cracked, torn or no longer seals fully. What it does:

• Creates an airtight seal around the door to keep cold air in and warm, moist air out.
• Helps reduce frost build-up, water or ice between compartments, and visible condensation.
• Supports consistent internal temperatures to protect food and improve efficiency.
• Common symptom: visible gaps, a torn or deformed gasket, or cold loss around the door edge.

• Disconnect power or unplug the appliance before service.
• Remove food and any removable door shelves or bins that obstruct access.
• Clean and dry the door sealing surface before fitting the new gasket for best contact.
• Fit the gasket starting at a corner and work around the door; gently warm stiff seals to make them more pliable if needed.
