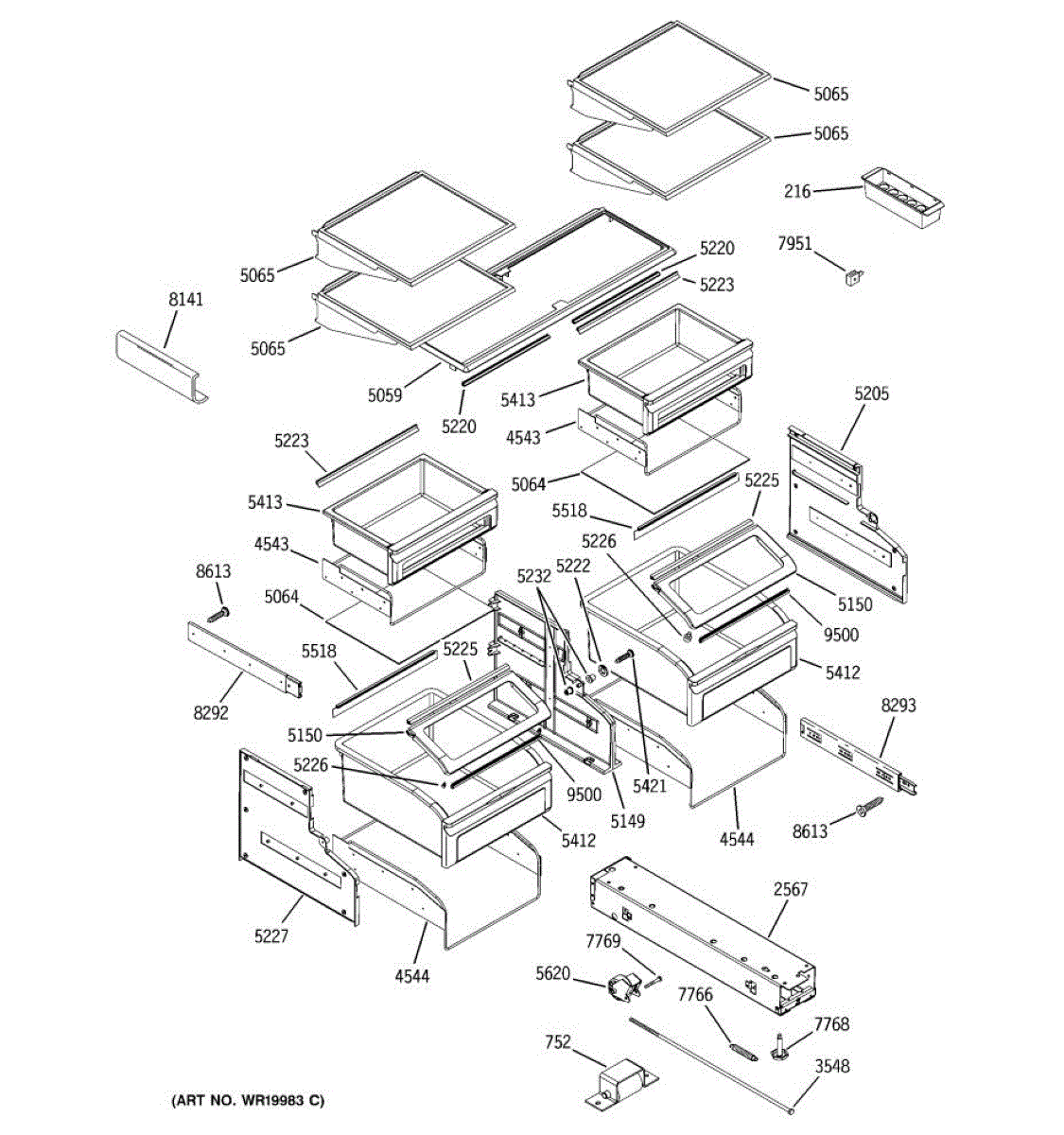

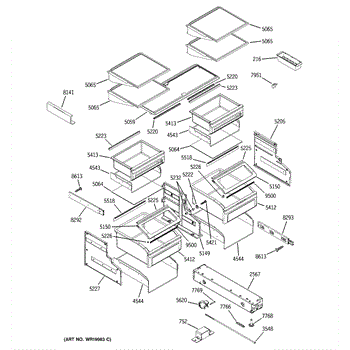

Parts for Ge ZICS360NXBRH: 04 - Shelves & Drawers Parts

This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This veg pan cover is the replacement lid for a refrigerator crisper/vegetable drawer, helping keep produce separated and reducing moisture loss for fresher, longer-lasting fruits and vegetables. What it does:

• Covers the refrigerator vegetable/crisper drawer to help contain humidity and protect produce
• Restores a secure fit when the original cover is cracked, warped, or missing
• Helps prevent accidental spills into the drawer below and keeps items contained
• Works with the drawer assembly to promote consistent storage conditions

• Remove contents from the drawer and slide the drawer out to access the cover
• Align the cover with the drawer rails or mounting tabs and snap or slide into place
• Handle carefully to avoid cracking plastic; use gentle pressure and avoid tools unless specified by the appliance manual

The Vegetable Pan Lid is an OEM replacement part for GE refrigerators. Located in the refrigerator door, the vegetable pan is designed to store fruits and vegetables in a humid environment to retain freshness longer. Color: white. Measures about 15-1/2 inches wide by 7 inches deep.

Over time, the vegetable pan lid can become cracked or warped due to frequent use, exposure to heavy items, or temperature fluctuations. A damaged lid can lead to improper sealing, which can compromise the freshness of the stored produce.

Symptoms of a failing lid include:

• Inability to properly seal in produce items
• Excess moisture or condensation buildup inside the refrigerator door
• Difficulty removing or replacing the lid securely
• Damage or wear that compromises the lid's structural integrity

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front vegetable pan glass seal replaces the worn or damaged gasket that fits along the glass front of a refrigerator crisper/vegetable drawer. Restores a snug fit to help reduce drafts, rattling and food falling beneath the drawer. What it does:

• Seals the front edge of the crisper/vegetable drawer glass to help maintain proper airflow and keep produce fresher.
• Holds the glass front securely to reduce rattling, slipping or gaps.
• Prevents small food items and debris from slipping under the pan.
• Common symptoms: torn, brittle or missing seal; visible gap at the drawer front; rattling or debris collecting beneath the drawer.

• Remove food and slide out the crisper/vegetable drawer to access the glass front before replacing the seal.
• Remove the old seal and clean the channel of any debris or adhesive; press the new seal firmly into the channel until fully seated.
• Wear gloves and use caution around glass edges to avoid cuts; no special tools are usually required.
• If clips or adhesive are present, inspect and reuse or replace them as needed; replace cracked or damaged glass rather than relying on the seal.

This part is a genuine OEM replacement crisper drawer intended for use with refrigerators. This crisper drawer is intended to properly store fruits, vegetables, and produce at the correct temperature and humidity in order to keep it fresh for as long as possible. Crisper drawers can become cracked or broken over time or if subject to damage, requiring replacement. No tools are needed to replace this part and installation is straightforward. Simply remove the old crisper drawer carefully and slide the replacement part into place. This part has been made by General Electric and has been sourced directly from the manufacturer. It is made out of high-quality, durable, non-corrosive plastic to ensure high quality and durability. This crisper drawer is sold individually. It is intended for use with various different refrigerator models manufactured by General Electric, Hotpoint, RCA, and some other compatible brands.

A #8-18 x 7/8 screw used to fasten appliance panels and components for secure operation. Small, corrosion-resistant fastener that restores proper fit and reduces rattling or loose parts. What it does:

• Secures trim, panels, brackets, or internal components to restore proper alignment
• Helps stop vibration and rattling caused by loose or missing fasteners
• Matches original thread size and length for correct fit in designated mounting points
• Used wherever a #8-18 x 7/8 machine/sheet metal screw is required

• Use the correct #2 Phillips or driver specified for the screw head to avoid stripping
• Do not overtighten; stop when snug to avoid damaging threads or components
• Disconnect power and remove panels before working near electrical parts
• Replace only with the same size and thread type for proper fit and safety

This snack pan assembly is the shallow refrigerator drawer that stores snacks and deli items in the fresh food compartment. Replace a cracked or missing pan to restore smooth sliding access and reliable, contained storage.

• Organizes smaller food items in the fresh food section
• Slides within the shelf rails for easy access
• Replaces cracked, broken, warped, or missing drawer
• Helps prevent spills or items falling due to a damaged bin

• Unplug the refrigerator or disconnect power before servicing interior parts
• Remove contents, pull the old pan straight out, and lift the front to clear the rails
• Inspect/clean rails and supports; transfer any reusable trim from the old pan if applicable
• Align and slide the new pan into the rails until fully seated

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

Flexible front door seal (gasket) that restores a tight closure between the appliance door and cabinet to help maintain interior temperature and reduce moisture, frost and energy loss. Use when the existing seal is cracked, torn or no longer seals fully. What it does:

• Creates an airtight seal around the door to keep cold air in and warm, moist air out.
• Helps reduce frost build-up, water or ice between compartments, and visible condensation.
• Supports consistent internal temperatures to protect food and improve efficiency.
• Common symptom: visible gaps, a torn or deformed gasket, or cold loss around the door edge.

• Disconnect power or unplug the appliance before service.
• Remove food and any removable door shelves or bins that obstruct access.
• Clean and dry the door sealing surface before fitting the new gasket for best contact.
• Fit the gasket starting at a corner and work around the door; gently warm stiff seals to make them more pliable if needed.
