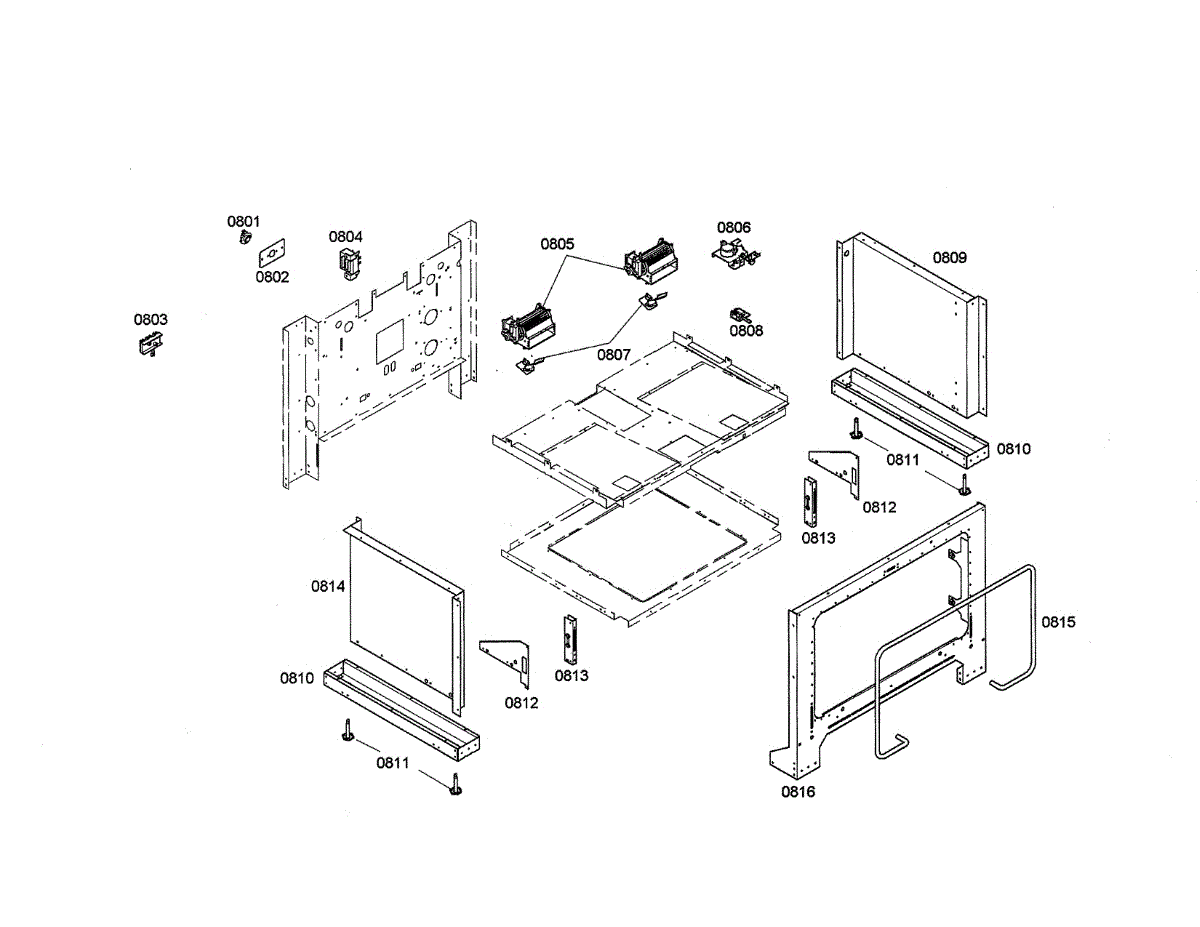

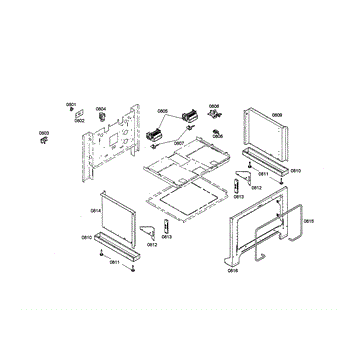

Parts for Thermador PDR364GDZS/01: Side Panels / Front Frame / Cooling Fan Parts

This terminal block housing secures and insulates the appliance's wiring connections, protecting wire terminals and helping ensure reliable electrical contact. Replace a cracked or melted housing to restore a safe wiring connection. What it does:

• Holds and protects the terminal block where power wires connect to the appliance
• Keeps wire terminals insulated and positioned to prevent shorting or contact with chassis
• Addresses symptoms like exposed or broken housing, visible melting or cracking, loose or intermittent power at the connection
• Helps prevent arcing and reduces risk of wire chafing at the connection point

• Disconnect power at the breaker or unplug the appliance before starting any work
• Access may require removing the back or lower access panel
• Inspect terminals and wiring; replace damaged terminals or wiring as needed before installing housing
• Secure housing and verify all wire connections are tight before restoring power

This transformer supplies the low-voltage power needed for an oven's interior lights so bulbs operate reliably. It restores proper lighting and helps stop flicker or complete loss of oven lamp function. What it does:

• Converts the oven's supply to the low-voltage output required by interior lamp circuits.
• Restores steady lamp operation when lights fail to come on or flicker.
• Works with the oven's light switch and control circuitry to deliver consistent voltage.
• Helps prevent false diagnostics caused by intermittent lamp power.

• One oven light transformer.

• Disconnect all power to the appliance before starting any repair.
• Accessible behind the control panel or chassis; remove panels carefully to reach the transformer.
• Note wire locations and secure all connectors; use proper wire connectors and strain relief.

This replacement mechanical lock is made by Bosch and is compatible with ranges.This mechanical lock is located on the upper corner of the range's back panel. It is a small safety device that could prevent the range from powering on or heating up if it is faulty. This part can be replaced with basic household tools. Ensure the appliance is unplugged and allowed to cool down before proceeding with the replacement process. This is an authentic OEM part made of high-quality, durable, non-corrosive metal and is only sold individually. This mechanical lock can be used with ranges and ovens manufactured Bosch, Thermador, Gaggenau, and other brands.

This flexible door seal/gasket creates a watertight barrier around the appliance door to help prevent leaks and keep internal temperatures stable. Replacing a worn seal restores proper sealing for reliable operation. What it does:

• Seals the door edge to prevent water from leaking during cycles
• Helps maintain internal temperature and cleaning performance
• Reduces moisture buildup and prevents odors from trapped debris
• Restores proper door alignment when the old seal has become misshapen or torn

• Disconnect power and water supply before starting any repair
• Remove the old seal by gently pulling from the door channel and clean the channel of debris
• Press the new gasket into the channel evenly, working around the entire door; ensure the seal is fully seated and not twisted
• If clips or retainers are present, verify they are correctly engaged; do not use sharp tools that can nick the gasket
