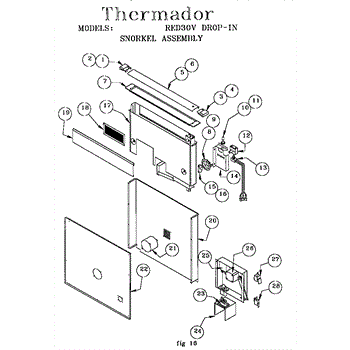

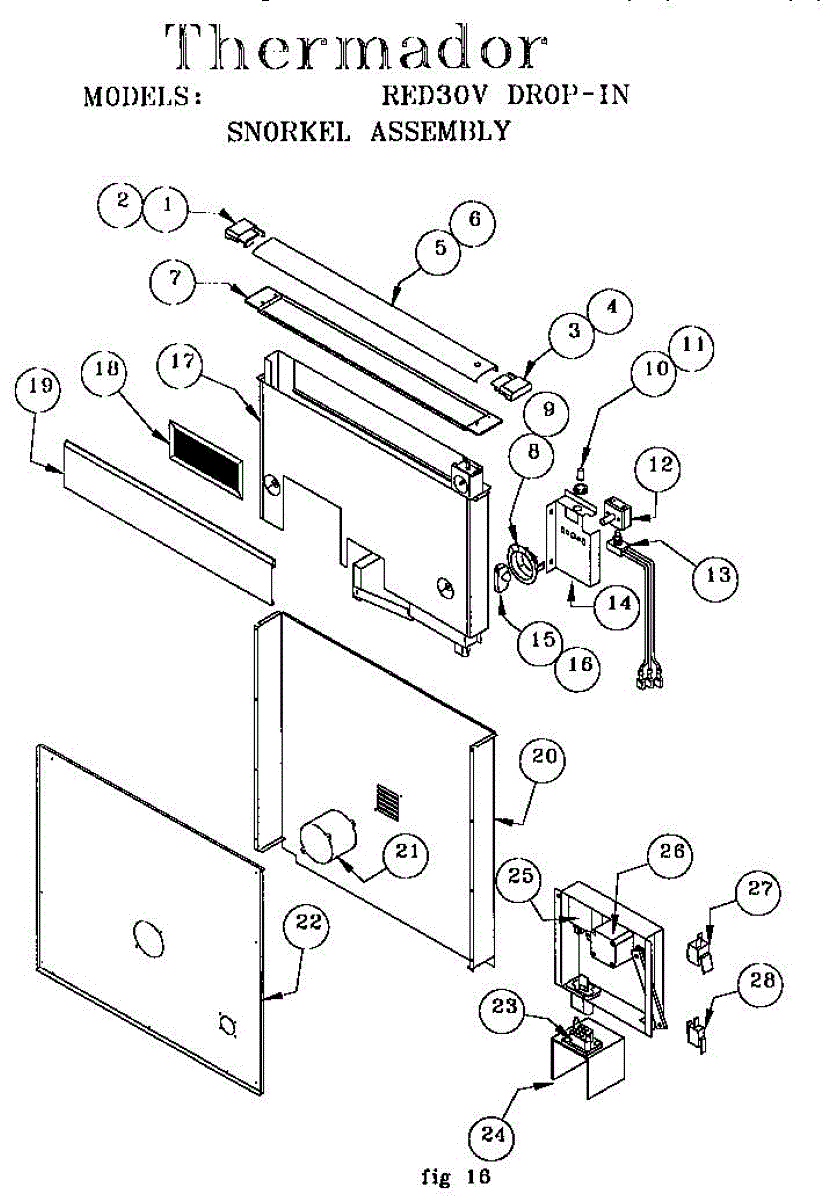

Parts for Thermador RED30VQW / 9708 & UP: Snorket Assembly Parts

Plastic endcap for range snorkel assembly. Installs on the top left side. Replace if cracked, broken, or missing to complete the snorkel appearance.

Black plastic endcap that covers the right side of the range snorkel vent. Replace if your original endcap is cracked, broken, or missing.

Black snorkel trim piece for range top. Replaces damaged, cracked, or missing decorative trim. Restores clean finished appearance to cooktop edge.

Replaces broken or non-responsive vent control button on downdraft ranges. Installs on countertop to operate vent up/down position. Includes switch assembly.

Fix a downdraft vent that won't go up or down, or cycles on its own. This range hood switch controls vent movement. DIY repair in about 1 hour.

Black control knob for electric ranges and cooktops. Replaces cracked, broken, or missing knobs. Installs on burner control dial stem for precise heat adjustment.

Captures grease and cooking vapors to keep air fresh and prevent buildup. Replace when clogged or discolored. Verify fit by model number and dimensions.

This rear outer panel replaces a damaged or worn back cover on compatible Bosch units to restore safety and appearance. It provides a protective enclosure for rear components and helps keep wiring and parts shielded from damage. What it does:

• Covers and protects rear-mounted components and wiring from debris and accidental contact
• Restores a secure mounting surface for rear fasteners and brackets
• Replaces bent, corroded, or cosmetically damaged rear sheet metal
• Helps reduce draft and prevents small objects from entering the appliance rear

• Disconnect power and/or gas supply before beginning service
• Handle edges carefully—sheet metal can be sharp
• Typical installation requires removing rear access screws and transferring mounting hardware; retain original fasteners if reused

This bracket secures the dishwasher snorkel plug assembly to the tub, keeping the drain/anti-siphon connection stable for reliable draining and fewer leaks. Designed to match OEM fit and function. What it does:

• Holds the snorkel plug/anti-siphon assembly in the correct position to prevent movement during cycles
• Helps maintain a proper drain seal to reduce the risk of water leaks or backflow
• Restores proper routing of the drain/snorkel when a broken or missing bracket causes noise or loose fittings

• One snorkel plug mounting bracket

• Intended for use with compatible Bosch dishwashers; your model's parts diagram for placement
• Turn off power and water supply before beginning any repair
• Remove any nearby components carefully to access the mounting location; use basic hand tools
• If corroded fasteners are present, replace them with OEM-equivalent hardware to ensure secure mounting
