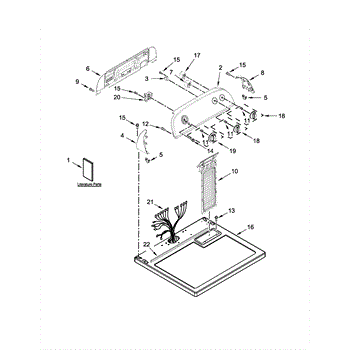

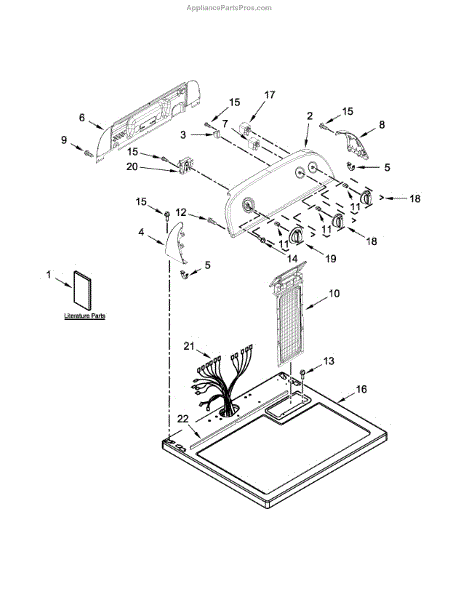

Parts for Kenmore 110.75202311 (11075202311, 110 75202311): Top And Console Parts

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

The Temperature Selector Switch is an OEM replacement part for Whirlpool dryers. This electro-mechanical switch allows consumers to choose between heat settings that adequately dry different fabric types.

Causes of a damaged selector switch can include regular wear from hundreds of cycles over the appliance's lifetime. Mineral deposits accumulating inside linkage mechanics may cause rotational movements to stiffen. The physical impacts of shifting internal contact positions could potentially lead to switching issues as well.

Symptoms of a faulty temperature selector involve:

• Inability to change heat level for desired drying performance
• Temperature remaining stuck on highest or lowest settings
• Lint filter or duct cleaning lights failing to illuminate properly

This OEM replacement is compatible with some Kenmore and KitchenAid electric dryer models too.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Dryer Screen is an OEM replacement part specific to Whirlpool dryers. Located inside the dryer cabinet behind the drum, the screen serves as a barrier protecting the blower system and ducting from lint and debris. The screen measures approximately 21"L and 7" W

Causes of a bad Dryer Screen can include physical damage from improper handling, accumulation of lint that isn't fully removed during cleaning, or wear and tear over time. A compromised lint screen can allow debris to bypass it, potentially leading to clogs and reduced drying efficiency.

Symptoms of a bad Dryer Screen include:

• Lint buildup on clothes after drying
• Longer drying times
• The dryer overheating
• Visible tears or holes in the screen mesh

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

The Push To Start Switch is an OEM part for Whirlpool dryers. It is the interface between the user and the dryer, initiating the drying cycle when pressed. This switch is essential for the safe and efficient operation of the dryer, ensuring that it starts only when the button is deliberately pressed, thereby preventing accidental start-ups.

Causes of a bad Push To Start Switch can include electrical failures within the switch mechanism, wear and tear from repeated use, or damage from spills or moisture exposure.

Symptoms of a bad Push To Start Switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• The dryer starting without the button being pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This control knob is the replacement dial used to select settings on compatible Whirlpool appliances. It restores a secure grip and clear control so you can operate the appliance confidently. What it does:

• Replaces a cracked, stripped, or missing control knob to restore normal user control
• Provides a secure fit so the shaft responds properly when you turn the dial
• Helps eliminate slipping, intermittent control, or difficulty selecting settings
• Matches OEM fit and function for a direct replacement when the original knob is worn

• Disconnect power to the appliance before starting any repair
• Most knobs simply pull straight off the control shaft and push the replacement on
• If a retaining screw is present, remove and reinstall as needed—refer to your appliance manual

This replacement control knob restores smooth, precise adjustment of a cooktop or range surface burner. Replace a cracked, stripped, or missing knob to reliably turn the burner valve or switch and set the right heat level. What it does:

• Mounts on the burner valve or switch shaft to turn the burner on/off and adjust heat
• Replaces knobs that are broken, stripped, wobbly, or missing
• Helps restore accurate "Off" and heat setting alignment
• Common fix for a burner that's hard to turn or won't adjust properly

• 1 control knob

• Disconnect power; for gas units, also shut off the gas supply
• Pull the old knob straight off the shaft—avoid prying against the panel
• Align the new knob with the shaft orientation and press straight on until fully seated
• Verify smooth rotation and correct "Off" alignment after installation

The Timer Assembly is an OEM part for Whirlpool dryers. It is responsible for controlling and managing the timing and sequence of the various drying cycles and functions.

Causes of a bad timer assembly may include electrical malfunctions, mechanical wear and tear, or physical damage from impact or moisture.

Symptoms of a faulty Timer Assembly include:

• Dryer not advancing through cycles or stopping mid-cycle
• Incorrect cycle times or skipping of certain cycle phases
• Lights or displays indicating incorrect time remaining
• Failure to initiate or start drying cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
