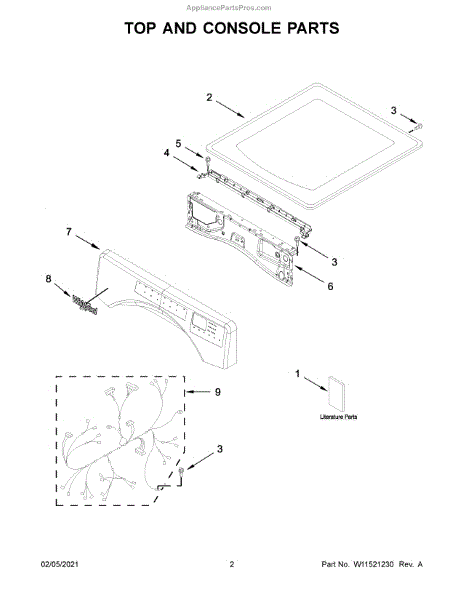

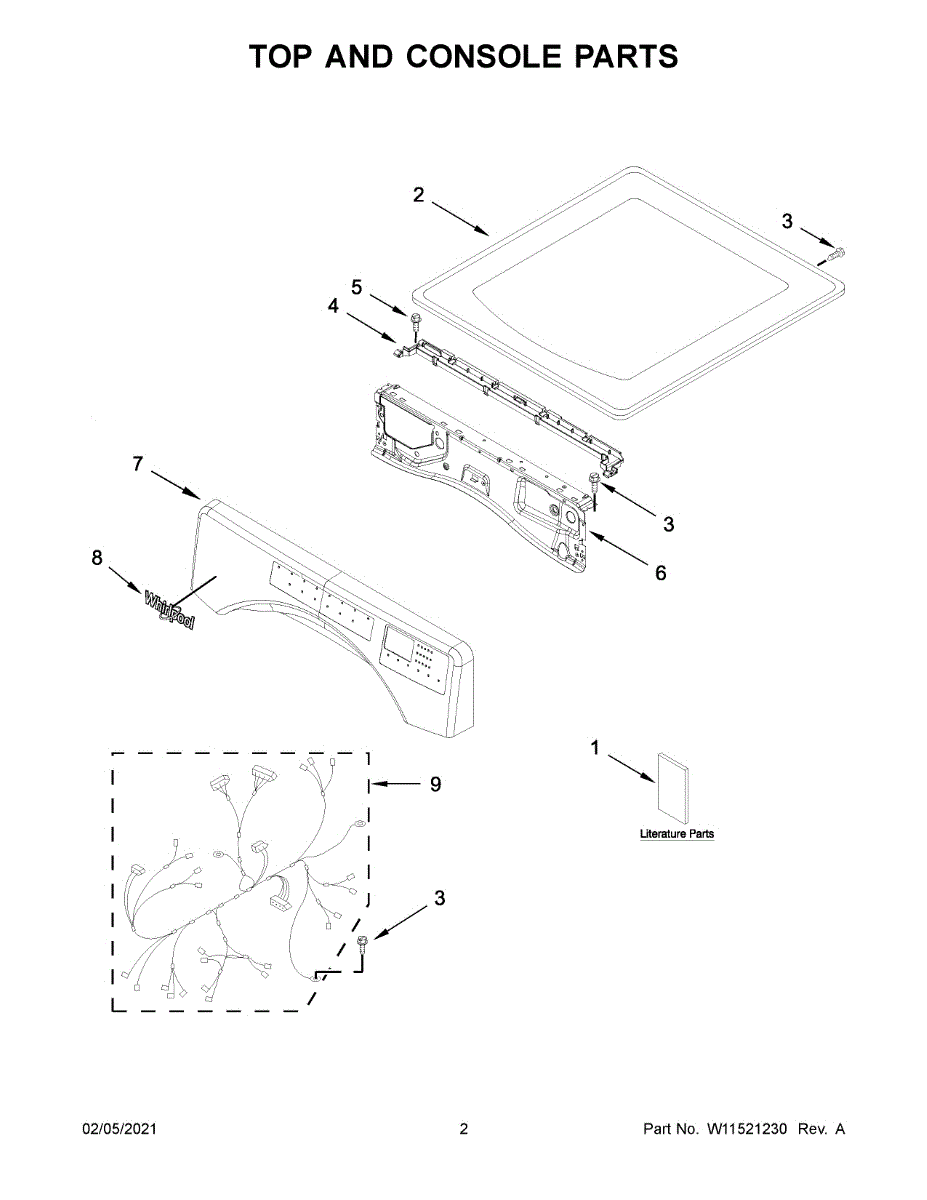

Parts for Whirlpool WGD9620HBK2: Top And Console Parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This bracket is a small mounting support that secures appliance panels or components in place to restore stable alignment and reduce rattling. It's a direct-fit replacement that helps keep parts properly positioned for reliable operation. What it does:

• Provides a secure mounting point for a panel or internal component to prevent shifting or vibration
• Restores correct alignment for doors, panels, or assemblies that have become loose
• Helps eliminate rattling, buzzing, or scraping noises caused by a loose support
• Maintains proper spacing so attached components operate smoothly

• Verify appliance is unplugged or power is disconnected before starting work
• Inspect mounting area and fasteners; replace any damaged screws or clips as needed
• Use basic hand tools to remove and reinstall the bracket; avoid overtightening

This name plate is the appliance identification label that displays model, serial and rating information and restores the unit's factory appearance. It helps ensure readable identification for service or resale. What it does

• Replaces a missing, faded or damaged identification label so model and serial info are visible.
• Provides required equipment ratings and manufacturer markings used during diagnostics and parts replacement.
• Restores exterior appearance where the original name plate is worn or peeling.
• Helps technicians and homeowners quickly confirm appliance identity during repairs.

• Name plate (single label)

• Disconnect power to the appliance before attempting installation or working near electrical connections.
• Clean and dry the mounting area; some name plates attach with adhesive while others fasten with screws—use the original hardware if present.
• Avoid bending or creasing the label when aligning it; press firmly to ensure full contact for adhesive-mounted plates.

This wire harness is a direct-replacement electrical wiring assembly that connects controls, switches and motors so your appliance can send power and signals where needed. It restores proper electrical pathways and helps components operate reliably. What it does:

• Routes and connects electrical power between controls, switches and motors
• Transfers control signals to start or stop appliance functions
• Replaces damaged or frayed wiring that can cause intermittent operation
• Commonly used when an appliance won't start, has intermittent power, or certain controls stop responding

• Disconnect all power before servicing to avoid shock or injury
• Verify connector alignment and seating; match wire colors and connector shapes
• Route and secure wiring away from moving parts, sharp edges and heat sources
• Replace the harness—do not splice unless explicitly approved by the manufacturer
